Handheld portable appliance testers PAT100 series

Handheld portable appliance testers PAT100 series Specification

Resistant Feature
Impact and drop resistant housing

Batteries Type
6 x AA Alkaline batteries

Accuracy
2% of reading

Usage & Applications
Testing electrical safety of portable appliances

Product Type
Handheld Portable Appliance Tester

Material
ABS Plastic, Electronic Components

Measuring Voltage Range
250V / 500V Insulation Test Voltage

Operating Temperature
0C to 40C

Frequency (MHz)
50/60Hz

Insulation Box
High grade ABS insulation enclosure

Protection System
Overload and short-circuit protection

Size
Compact handheld

Color
Grey with Blue accents

Dimension (L*W*H)
Approx. 250 x 100 x 50 mm

Weight
Approx. 650g

Power Supply
Battery operated for portability

Display Type
Large, easy-to-read LCD screen

Data Hold Function
Yes, for convenient operation

Enclosure Rating
IP40

Auto Power Off
Yes, to conserve battery life

Test Current
Earth continuity test at 200mA

Safety Standards
Complies with IEC/EN 61010 and BS EN 61557

Audible Indicators
Buzzer confirmation for pass/fail results

Connectivity
Test lead and plug-in connection

Test Types
Earth bond, insulation, polarity, and leakage testing

Handheld portable appliance testers PAT100 series Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About Handheld portable appliance testers PAT100 series

Simple 'tick/cross' or 'pass/fail' indication plus measurement
Tough, rubber armoured with built-in front cover, hardened, scratch-proof display window
Includes 250 V insulation and leakage testing for safe IT testing and surge protected devices
Testing portable and fixed electrical equipment
10 mA and 30 mA portable RCD lead testing (PAT150)
Adjustable PASS test limits (PAT150)
Substitute and mains powered leakage testing (PAT150)
Battery powered with rechargeable options

The PAT100 series of handheld portable appliance testers enables simple, fast safety testing in all environments including offices, shops, and business units. It is tough, reliable, and easy-to-use making it ideally suited for training organisations with intensive courses.

With rubber armoured cases and hardened, scratch-proof glass, the PAT100s are exceptionally tough instruments. Battery-powered operation makes the PAT100s perfect for those locations where an electrical supply is not available, inconvenient, or unsafe, such as in building sites and warehouses. The PAT100 series conforms to all UK and European requirements for electrical safety testing.

There are three testers in the range:

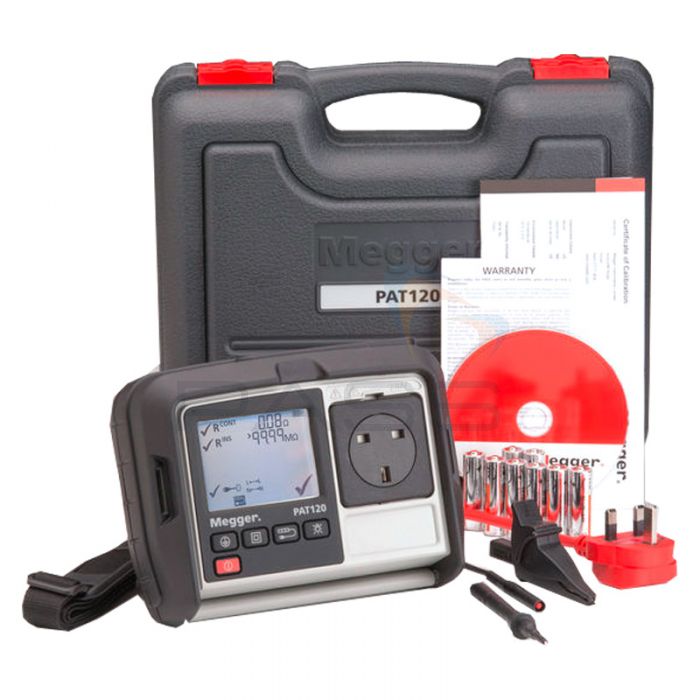

PAT120: this simple PAT tester offers Class I, Class II, and power and extension lead testing with fixed pass limits. Because it has two insulation test voltages, it can be used to test IT and surge protected equipment.

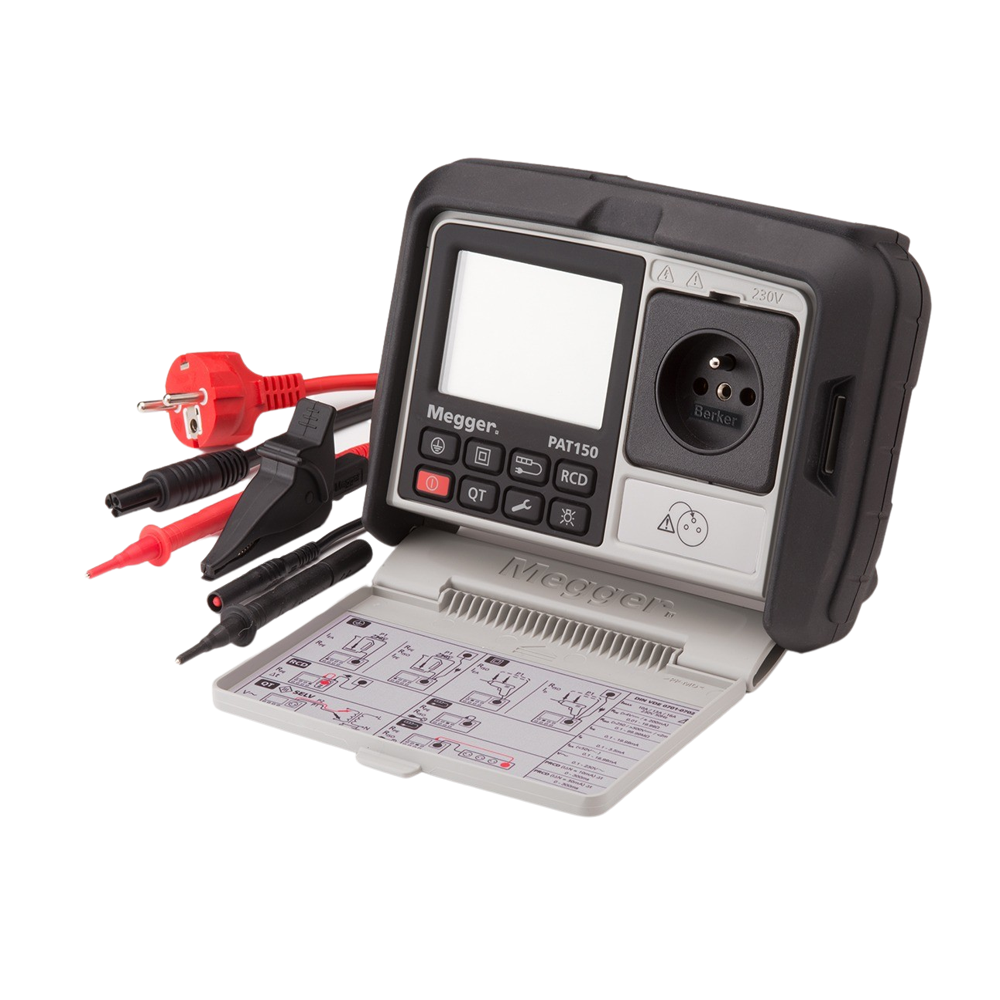

PAT150: this PAT tester has full functionality with portable RCD (PRCDs) testing at 10 mA and 30 mA, separate tests for continuity, insulation, mains-powered leakage testing and SELV measurements using the "quick test" (QT) button, and can be used for testing fixed appliances.
PAT150R: this is a rechargeable version of the PAT150.

Comprehensive Safety Testing

The PAT100 series testers offer a full suite of measurements necessary for ensuring the electrical safety of portable appliances. By providing earth bond, insulation, polarity, and leakage testing, these devices help guarantee compliance with industry standards and facilitate regular safety checks in diverse work environments.

Enhanced Portability & Durability

With a compact design and lightweight ABS construction, the PAT100 testers are engineered for maximum portability and durability. Powered by 6 AA alkaline batteries, these testers can be readily transported and used on-site, even in demanding field conditions. Their impact-resistant casing safeguards against accidental drops.

User-Friendly Features

The PAT100 series incorporates an intuitive, large LCD display for clear result reading, as well as audible buzzer confirmation for pass/fail outcomes. Data hold and auto power-off features make testing easier and energy efficient, ensuring accurate data capture and longer device operational life in busy testing environments.

FAQ's of Handheld portable appliance testers PAT100 series:

Q: How do I use the PAT100 series tester to check electrical safety in appliances?

A: To use the PAT100 series tester, connect the test leads or plug to the appliance and select the desired test mode (earth bond, insulation, polarity, or leakage). The large LCD screen displays results, and a buzzer sounds for clear pass/fail confirmation. Always follow the included instructions for accurate testing procedures.

Q: What appliances can be tested with the PAT100 series portable tester?

A: You can test a wide variety of portable electrical appliances using the PAT100 series, including office equipment, power tools, kitchen devices, and other plug-in electrical items, ensuring they meet the required safety standards outlined by IEC/EN 61010 and BS EN 61557.

Q: When should I perform electrical safety tests with this instrument?

A: It's recommended to carry out safety tests during initial installation, periodic inspection cycles, after any repairs, and before re-commissioning appliances to ensure ongoing compliance and user safety.

Q: Where can I use the PAT100 series tester?

A: Thanks to its battery-operated operation, compact size, and robust enclosure, the PAT100 series is suitable for use in offices, workshops, industrial sites, and field locations where on-site appliance safety testing is required.

Q: What is the process for performing an earth bond test?

A: To perform an earth bond test, connect the test lead to the appliance's earth point and start the test. The instrument will deliver a 200mA current and measure resistance, indicating the result both visually on the LCD and audibly using the built-in buzzer.

Q: How does the data hold and auto power-off features enhance my testing experience?

A: The data hold function allows you to freeze and record measurement results for convenience, while the auto power-off feature helps conserve battery life by turning off the tester after a period of inactivity, ensuring reliable performance during multiple onsite tasks.

Q: What are the main benefits of choosing the PAT100 series for appliance testing?

A: Key benefits include compliance with international safety standards, quick and accurate results (accuracy of 2% of reading), portability, robust and resistant construction, clear display, audible alerts, and comprehensive protective features that minimize risks during testing.
