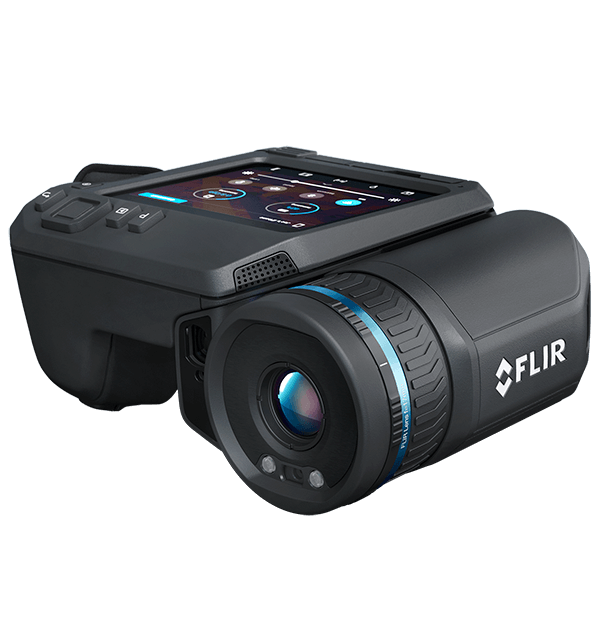

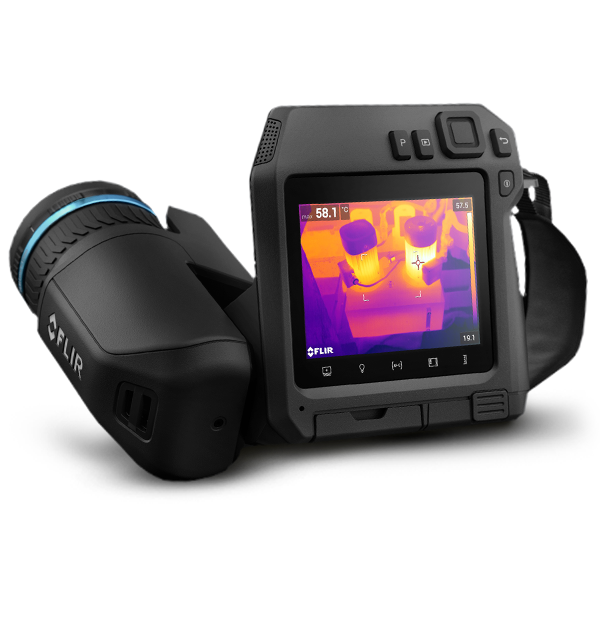

Professional Thermal Camera - FLIR T530

Professional Thermal Camera - FLIR T530 Specification

Camera Range
-20C to 650C (-4F to 1202F)

Connectivity Type
USB-C, Wi-Fi, Bluetooth, SD card slot

Camera Type
Thermal Imaging Camera

Sensor Type
Uncooled microbolometer

Camera Style
Handheld Professional Thermal Camera

Technology
Infrared Thermal Imaging

Special Features
180 rotating optical block, intuitive user interface, interchangable lenses, advanced thermal sensitivity, Wi-Fi & Bluetooth connectivity

Remote Control
Supported via FLIR Tools Mobile app

Application
Electrical/mechanical inspections, building diagnostics, R&D, manufacturing

Camera Size
Approx. 140 x 201 x 84 mm

Camera Pixels
320 x 240 (76,800 pixels)

Screen Resolution
4-inch, 480 x 800 pixel touchscreen LCD

Image/Video Quality
IR resolution 320 x 240, up to 640 x 480 with UltraMax

Power Supply
Rechargeable Li-ion battery, AC adapter

Output Formats
JPEG, MPEG-4, TIFF (with FLIR software)

File Compatibility
Radiometric JPEG, standard JPEG, MPEG-4 video

Optical Zoom
1-4 continuous digital

Focus Type
Manual and automatic laser-assisted focus

Visual Camera Resolution
5 MP (for visible images)

Image Storage
Internal memory & removable SD card

Mounting
Standard tripod mount

Reporting Software
Compatible with FLIR Tools and FLIR Thermal Studio Suite

Laser Pointer
Built-in, for accurate targeting

Thermal Sensitivity (NETD)
< 40 mK at 30C

Battery Life
Up to 4 hours continuous operation

Display Type
Capacitive multi-touch screen

Operating Temperature
-15C to 50C (5F to 122F)

Weight
1.3 kg (2.9 lbs) with battery

Data Communication Interface
USB 2.0, Bluetooth, Wi-Fi, DisplayPort

Professional Thermal Camera - FLIR T530 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Professional Thermal Camera - FLIR T530

The Flir T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180 rotating lens platform and a bright 4" LCD, the T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and Flirs industry-leading image quality ensure youll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from Flir Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the T530 with a Flir FlexView dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.

Exceptional Thermal Precision in Every Inspection

The FLIR T530 redefines professional thermal imaging with its outstanding sensitivity below 40 mK and high-resolution IR sensor. The camera's superior optics, combined with manual and laser-assisted focusing, allow for crystal-clear thermal and visual images. The 180 rotating block makes inspections in tight or awkward spaces effortless, enhancing user comfort during prolonged surveys.

Effortless Data Management and Reporting

Internal memory and SD card slots make capturing and storing thousands of images seamless. The T530 supports Radiometric JPEG, standard JPEG, MPEG-4 video, and TIFF formats (using FLIR software), ensuring compatibility with your workflow. Integration with FLIR Tools and Thermal Studio Suite enables intuitive report generation with comprehensive thermal analysis.

Versatile Connectivity and Remote Operation

The T530 offers robust connectivity through USB 2.0, Wi-Fi, Bluetooth, and a DisplayPort. You can also operate the camera remotely using the FLIR Tools Mobile app. These versatile solutions simplify data transfer, real-time image sharing, and remote diagnostics, making the T530 a pivotal tool for teams across multiple sites.

FAQ's of Professional Thermal Camera - FLIR T530:

Q: How does the FLIR T530 achieve accurate thermal measurements?

A: The T530 employs a highly sensitive uncooled microbolometer sensor (NETD < 40 mK at 30C) and advanced manual or laser-assisted focusing for precise thermal readings. Its IR resolution of 320 x 240 (expandable to 640 x 480 via UltraMax) ensures exceptional detail, suitable for critical inspections.

Q: What features aid in targeting and capturing images in hard-to-reach places?

A: A built-in laser pointer and a 180 rotating optical block enable accurate targeting and flexible imaging at challenging angles. These features, combined with an intuitive multi-touch screen interface, make capturing high-quality images even in confined or awkward spaces straightforward.

Q: When should I use manual versus automatic laser-assisted focusing?

A: Manual focus is ideal for fine-tuning when working at close distances or requiring pinpoint accuracy. The automatic, laser-assisted focus accelerates workflow by quickly locking onto targets, especially useful for routine inspections or when imaging objects at varying distances.

Q: Where are captured images stored and how can I access the data?

A: Images can be saved to the camera's internal memory or onto a removable SD card. Data can be accessed via USB 2.0, SD card removal, Wi-Fi, or Bluetooth, making it easy to transfer files to computers or mobile devices for further analysis or reporting.

Q: What is the process for generating inspection reports with the T530?

A: After capturing images, you can use FLIR Tools or Thermal Studio Suite software to import radiometric and standard images, perform detailed analysis, and create comprehensive inspection reports. The T530 supports multiple file types, ensuring easy integration with reporting workflows.

Q: How can the T530 benefit my professional inspection workflow?

A: With its advanced features like high thermal sensitivity, flexible targeting, interchangeable lenses, and wireless connectivity, the T530 enhances the speed, accuracy, and efficiency of inspections. Its compatibility with reporting software streamlines documentation, delivering actionable insights promptly.
