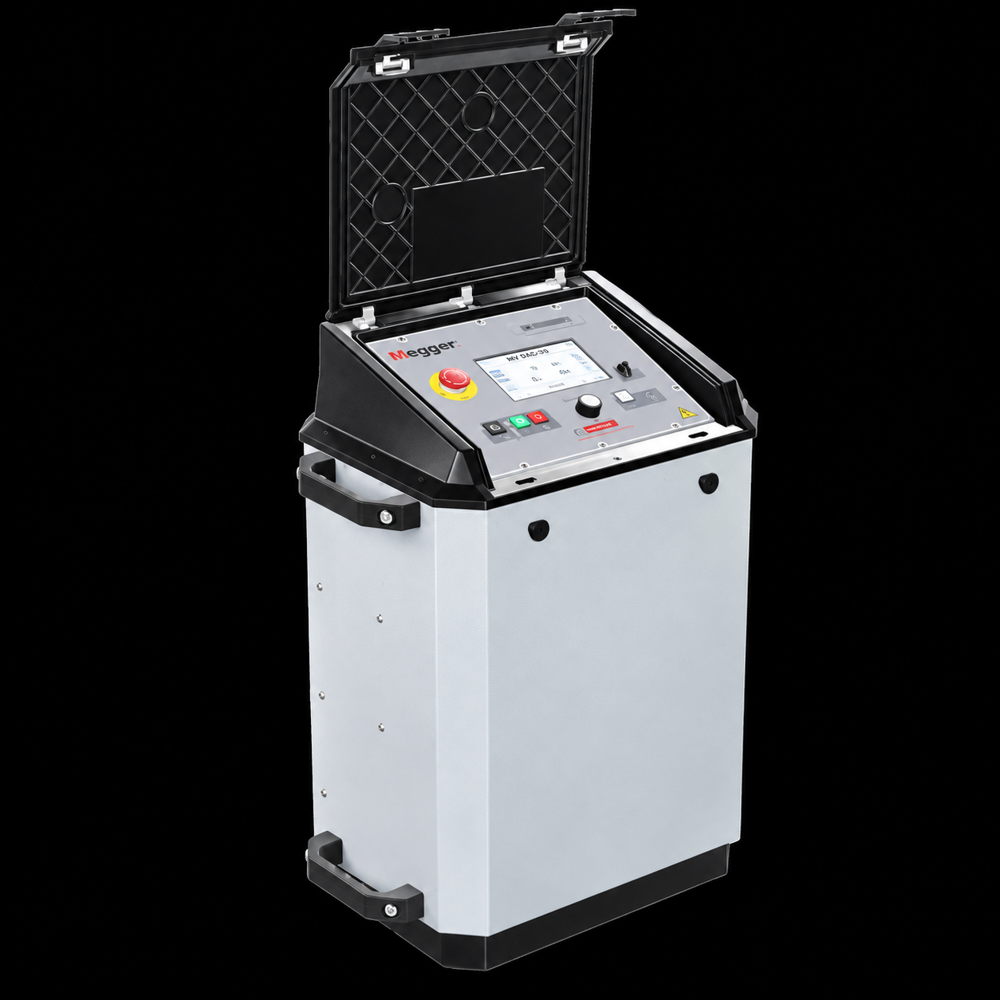

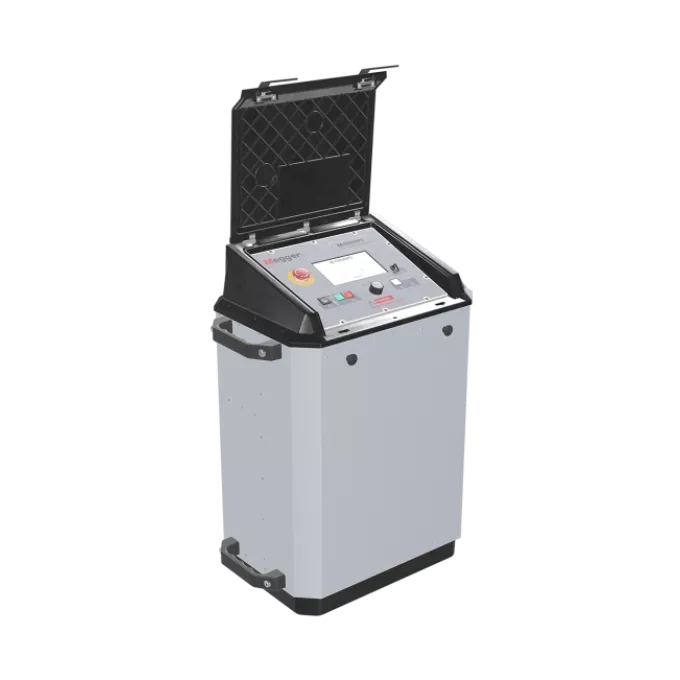

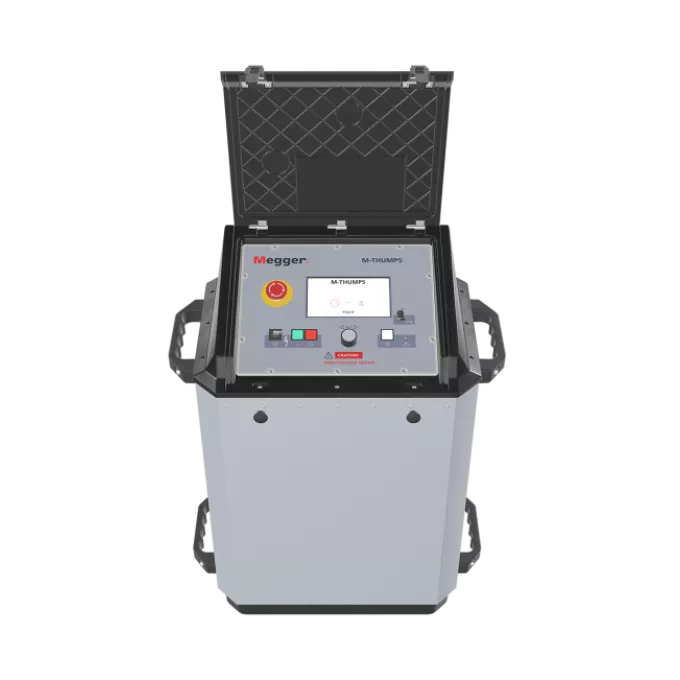

M-Thump5 Cable Fault Location System

M-Thump5 Cable Fault Location System Specification

Pressure
N/A (non-pressurized solid-state electronics)

Resistant Feature
Shock-proof corners, water-resistant enclosure, dust-protected controls

Accuracy
Fault distance measurement accuracy typically 0.5% or better

Batteries Type
Mains powered; optional internal rechargeable battery

Usage & Applications
Locating and pinpointing cable faults in power distribution and communication cables

Product Type
Cable Fault Location System

Material
Robust industrial-grade plastic & reinforced metal housing

Measuring Voltage Range
Up to 5 kV output for fault location

Operating Temperature
-10C to +50C

Frequency (MHz)
0.05 - 50 MHz (pulse reflection and echo measurement systems)

Insulation Box
Yes, provided as an integrated enclosure

Protection System
Overload, short-circuit and overvoltage protection (automatic shutdown)

Size
Portable, trolley-style unit

Color
Grey/Black with control panel display

Dimension (L*W*H)
Approx. 540 mm x 400 mm x 800 mm

Weight
Approximately 45 kg

Safety Standards
CE marked, conforms to IEC safety and EMC directives

Test Modes
Thumping, burning, pre-location (TDR, SIM/MIM), DC insulation testing, and sheath testing

Overload Indicator
Panel-mounted error/fault indicators and emergency stop button

Cable Compatibility
Suitable for LV, MV, and HV cables (up to 69 kV)

Software Support
Supplied with PC analysis software for result evaluation and reporting

Interface
USB port for data export, optional Bluetooth/Wi-Fi connectivity

Pulse Output Modes
Single and continuous mode, preset pulse intervals

Memory Storage
Internal memory for up to 200 test results and traces

Display Screen
Large high-contrast LCD touchscreen with menu navigation

Output Energy
Up to 1000 Joules per pulse

Mobility
Four-wheel design, integrated retractable handle for easy transport

Cooling System
Fan-forced air or passive cooling depending on output load

Audible Fault Indication
Built-in speaker for acoustic fault pinpointing

M-Thump5 Cable Fault Location System Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
30 Days

M-Thump5 Cable Fault Location System About

Megger M-Thump5 is a compact cable fault location system designed for testing and locating faults in power cables. It combines cable testing, fault prelocation and pinpointing functions in a portable system. The unit is suitable for field use by utilities, electrical contractors and industrial maintenance teams.

Key Features:

Compact and portable cable fault location system
Designed for power cable fault testing
Supports cable fault prelocation
Helps pinpoint underground cable faults
Suitable for field testing and maintenance
Simple operation for faster fault-finding work

Technical Specifications:

Brand: Megger
Model: M-Thump5
Product Category: Cable Fault Location System
Application: Cable fault testing and location
Functions: Testing, prelocation and pinpointing
Suitable for: Power and distribution cable networks

Applications:

Underground power cable fault location
Distribution cable maintenance
Cable fault prelocation and pinpointing
Utility network maintenance
Industrial electrical maintenance
Electrical contractor field testing

Pinpoint Precision for Every Cable Fault

The M-Thump5 excels in accurate cable fault location, employing advanced test modes such as TDR, SIM/MIM, and thumping to suit various fault scenarios. The system's fault distance measurement accuracy is typically within 0.5% or better, streamlining repairs and minimizing downtime on power distribution and communication lines.

User-Friendly Display and Controls

Equipped with a large LCD touchscreen, the M-Thump5's user interface brings convenience to every operation. Navigating complex test sequences becomes straightforward, even in demanding field conditions, thanks to shock-proof and water-resistant features that protect the robust housing and sensitive controls.

Comprehensive Safety and Reliability

Engineered for operator safety, the system meets CE and IEC safety directives and includes essential protective features such as overload, short-circuit, and overvoltage automatic shutdown, as well as emergency stop functionality. Error indicators and a secure insulation box further enhance safe usage during field work.

FAQ's of M-Thump5 Cable Fault Location System:

Q: How does the M-Thump5 locate faults in cables?

A: The M-Thump5 uses a combination of thumping, burning, Time Domain Reflectometry (TDR), and SIM/MIM technologies to precisely identify and pinpoint faults in LV, MV, and HV cables. The high-energy pulses help expose fault locations, while the reflected signal readings enable accurate distance-to-fault measurement.

Q: What types of cables and voltage levels is the M-Thump5 compatible with?

A: The system is designed for low-, medium-, and high-voltage cables up to 69 kV, making it suitable for power distribution and communication infrastructure maintenance and troubleshooting.

Q: When is it recommended to use the thumping or burning test modes?

A: Thumping mode is ideal for locating high-resistance faults by producing strong acoustic and electromagnetic signals, while burning mode is best used to convert high-resistance faults into low-resistance faults, making them easier to detect during subsequent tests.

Q: Where can the stored test results and fault traces be accessed or exported?

A: Test results and traces can be accessed from the device's internal memory, which stores up to 200 entries. Data can be exported using the USB interface or, with optional modules, via Bluetooth or Wi-Fi for further analysis on a PC using the supplied software.

Q: What is the process for setting up and using the M-Thump5 in the field?

A: To use the unit, simply transport it to the work site using the integrated four-wheel trolley and retractable handle. Set up involves connecting the system to the target cable, selecting the appropriate test mode via the touchscreen, and following the on-screen prompts. The unit's mobility and intuitive interface ensure fast deployment and straightforward operation.

Q: How does the system ensure operator safety during use?

A: The M-Thump5 is CE marked, meets IEC safety and EMC standards, and incorporates automatic overload, overvoltage, and short-circuit protection. It also features panel-mounted fault indicators, emergency stop, and a robust, water-resistant enclosure with shock-proof corners to safeguard both users and equipment.

Q: What are the main benefits of using the M-Thump5?

A: Key benefits include quick, accurate cable fault localization, comprehensive test modes, extensive data management capabilities, portability, robust safety features, and suitability for a wide range of cable types and environments. This efficiency translates into reduced downtime and more cost-effective maintenance operations.
