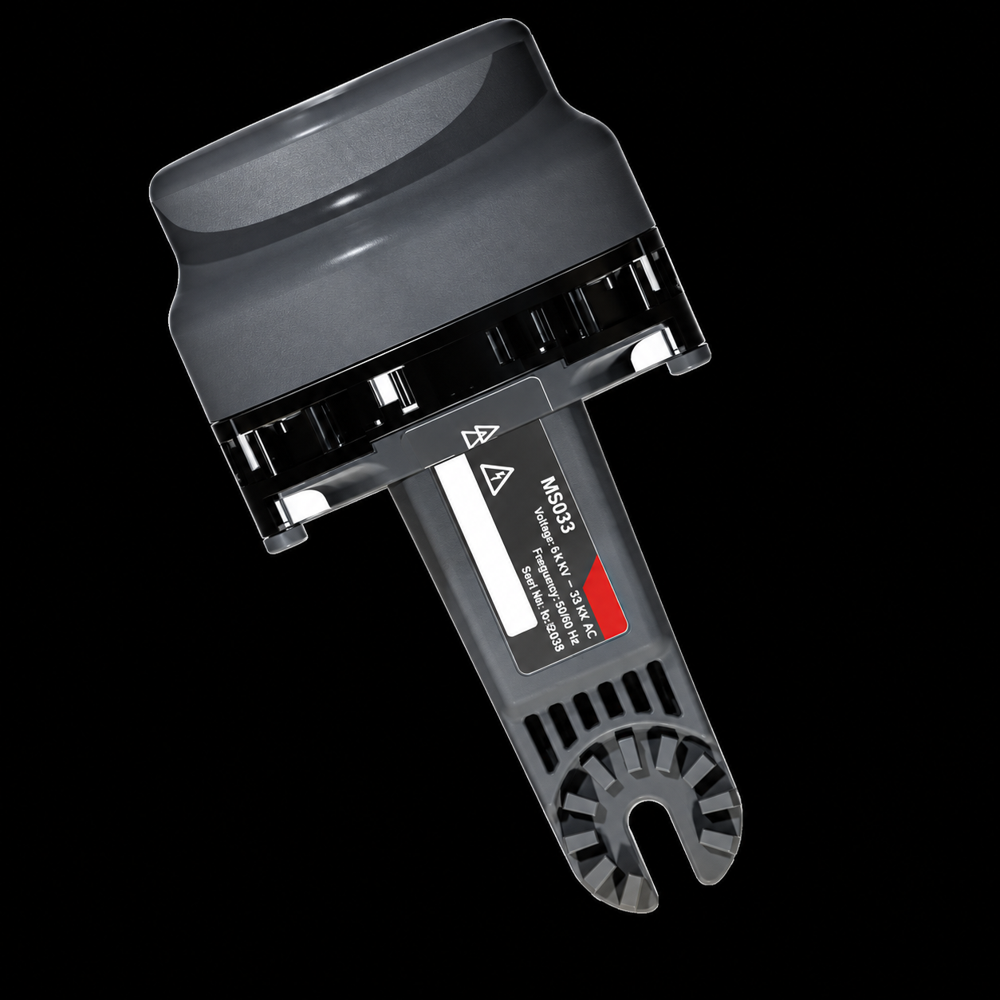

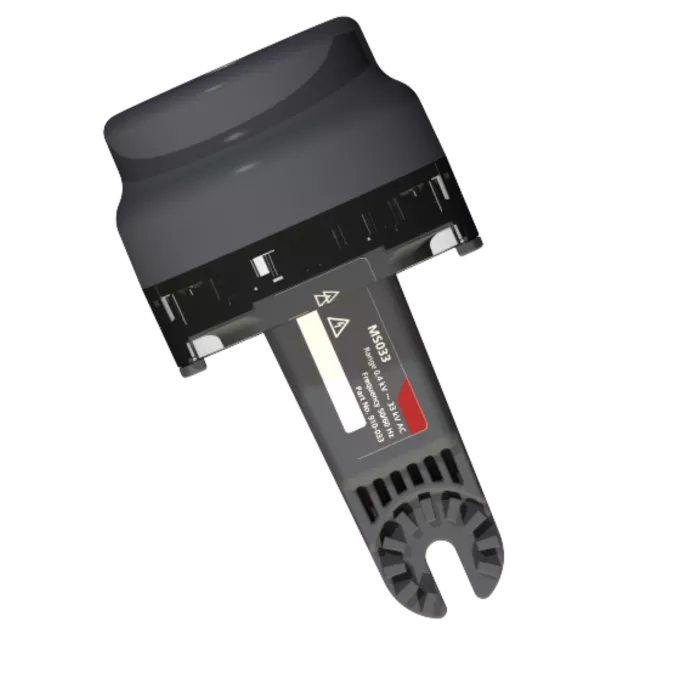

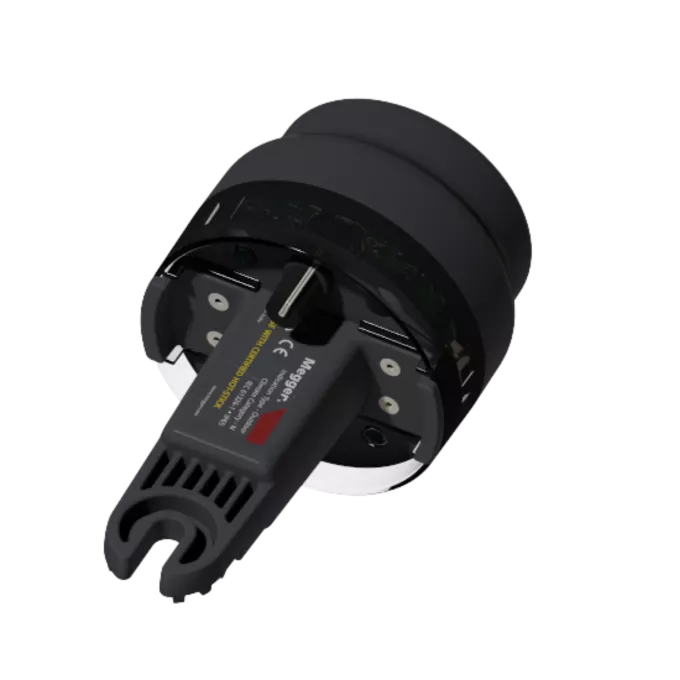

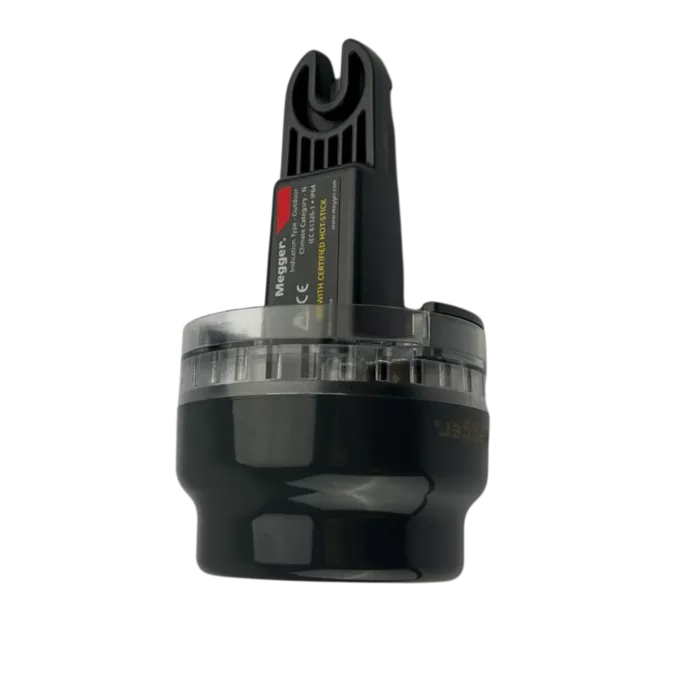

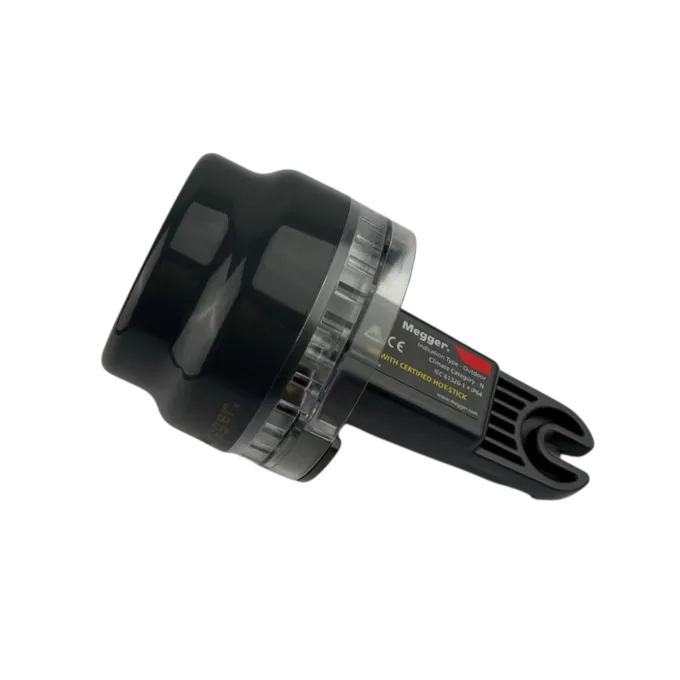

Megger MS033 Non-contact Low and Medium Voltage Tester

Megger MS033 Non-contact Low and Medium Voltage Tester Specification

Usage & Applications
Detecting presence of high voltage on cables, overhead lines, switchgear and electrical equipment

Batteries Type
2 x 1.5V AA batteries

Resistant Feature
Impact resistant, dustproof

Accuracy
High sensitivity to AC voltage presence

Product Type
Non-contact Low and Medium Voltage Tester

Material
High strength ABS plastic

Measuring Voltage Range
Non-contact, 30V-37kV AC

Operating Temperature
-10C to 50C

Frequency (MHz)
50/60 Hz

Insulation Box
Yes

Protection System
Double insulation protection

Size
Handheld (Compact)

Color
Black and grey

Dimension (L*W*H)
Approx. 200mm x 65mm x 40mm

Weight
Approx. 200g

Indication System
Visual and audible alarm

LED Indicator
Yes

Standards Compliance
CE, CAT IV 600V

Mounting
Handheld, clip for belt

Detection Method
Non-contact capacitive sensing

Model Number
MS033

Humidity Range
85% RH

Auto Power Off
Yes

Response Time
Instantaneous (within 1 second)

Megger MS033 Non-contact Low and Medium Voltage Tester Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
30 Days

About Megger MS033 Non-contact Low and Medium Voltage Tester

Megger MS033 is a non-contact low and medium voltage tester designed to detect the presence of AC voltage without direct electrical contact. It supports common system voltage levels of 415 V, 3.3 kV, 6.6 kV, 11 kV and 33 kV.

The tester provides visual and audible indication to help technicians identify energized conductors and equipment. It is suitable for electrical utilities, industrial plants, substations and electrical maintenance applications. The MS033 is designed in accordance with IEC 61243-6 for non-contact voltage detection.

IndiaMART Search Keywords:
Megger MS033, MS033 Voltage Tester, Megger Non Contact Voltage Tester, 33kV Voltage Detector, 33kV Voltage Tester, Medium Voltage Detector, MV Voltage Tester, High Voltage Detector, Non Contact AC Voltage Detector, Megger Voltage Detector, 11kV Voltage Detector, 33kV Non Contact Voltage Detector, Voltage Detector India, Megger MS033 India.

Instantaneous and Reliable Voltage Detection

The Megger MS033 provides rapid, accurate identification of live AC voltage within one second using non-contact capacitive sensing. Its high sensitivity ensures operators can confidently detect even low levels of voltage across a wide range, up to 37kV, ensuring safety during electrical maintenance and troubleshooting.

Optimized for Ease of Use and Portability

Designed for handheld use, the MS033 features a compact build with a belt clip, allowing electricians and technicians to carry it conveniently on the job. The impact-resistant, dustproof ABS enclosure and double insulation make it suitable for work in challenging industrial and field environments.

Visual and Audible Alerts for Enhanced Safety

Equipped with both LED indicators and a loud audible alarm, the tester draws immediate attention to the presence of voltage. These clear alerts help prevent accidents and ensure operators are always aware of live electrical hazards, even in noisy or poorly lit settings.

FAQ's of Megger MS033 Non-contact Low and Medium Voltage Tester:

Q: How does the Megger MS033 detect voltage without contact?

A: The Megger MS033 utilizes a non-contact capacitive sensing method, meaning it can detect alternating current (AC) voltages from a short distance without needing to physically touch the conductor, substantially reducing the risk of electric shock.

Q: What environments is the MS033 suitable for?

A: This tester is built for field and industrial environments, with an impact-resistant and dustproof ABS case and double insulation for increased durability and safety, making it ideal for use on cables, overhead lines, switchgear, and other electrical equipment.

Q: When should I use the Megger MS033 voltage tester?

A: You should use the MS033 before performing maintenance, installation, or troubleshooting on electrical circuits to confirm whether voltage is present, which helps in preventing accidental contact with live circuits.

Q: Where can the MS033 be mounted or carried during use?

A: The tester is handheld and comes with a belt clip, enabling users to attach it to their belt or toolbag for convenient access and portability while moving between job sites.

Q: What benefits does the visual and audible alarm system provide?

A: The LED visual indication combined with a loud audible alarm ensures instant awareness of voltage presence, making it easier to work safely in noisy or poorly lit environments where one form of alert might be missed.

Q: How do I know if the unit is working properly?

A: The MS033 features an LED indicator and audible alarm that activate if voltage is detected. The auto power-off function and easy battery replacement with 2 x 1.5V AA batteries also help ensure the unit is ready and functional for every use.
