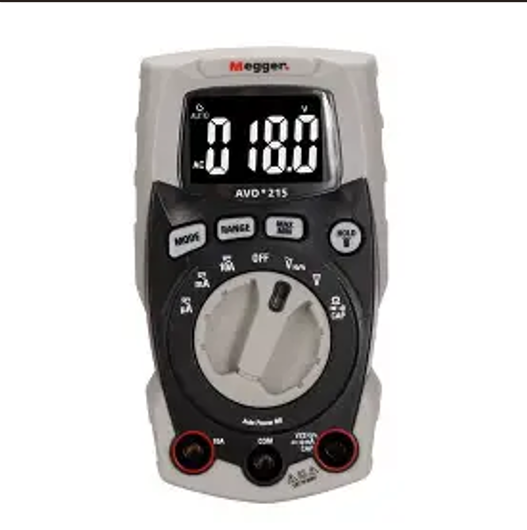

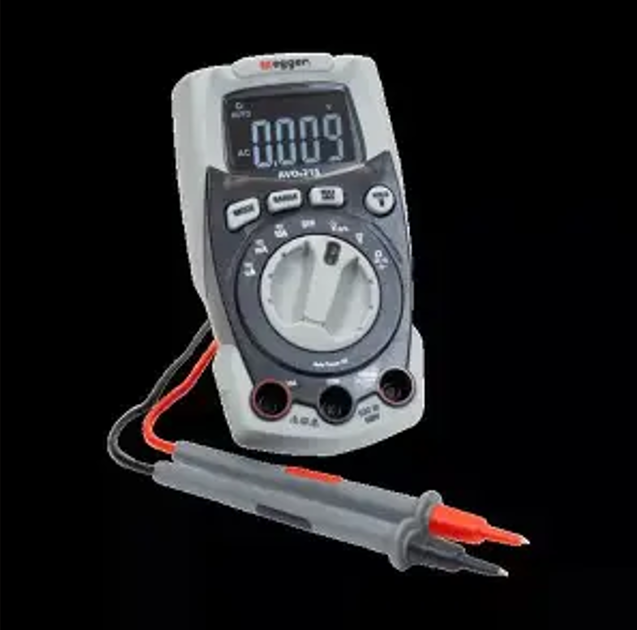

Pocket Size Digital Multimeter AVO 215 - Megger

Pocket Size Digital Multimeter AVO 215 - Megger Specification

Accuracy
(1.0%+2) for DCV, (1.2%+10) for ACV

Resistant Feature
Shock Resistant Case

Usage & Applications
General Electrical/Electronic Measurement, Field Service, Education, Laboratory

Batteries Type
2 x 1.5V AAA

Product Type
Pocket Size Digital Multimeter

Material
Plastic ABS

Measuring Voltage Range
Up to 600V (AC/DC)

Operating Temperature
0C to 40C

Frequency (MHz)
50/60 Hz (for AC measurements)

Insulation Box
Yes

Protection System
Overload Protection

Size
Pocket Size

Color
Black & Grey

Dimension (L*W*H)
123 x 67 x 20 mm

Weight
Approx. 115 g

Diode Test
Yes

Current Measurement Range
Up to 10A

Audible Indication
Yes

Maximum Display
1999 counts

Input Impedance
10 M (VDC)

Resistance Measurement Range
Up to 20 M

Display Type
3 1/2 Digit LCD

Data Hold
Yes

Safety Standard
IEC 61010-1 CAT II 600V

Fuse Protection
Yes

Continuity Buzzer
Yes

Auto Power Off
Yes

Model Number
AVO 215

Pocket Size Digital Multimeter AVO 215 - Megger Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

Pocket Size Digital Multimeter AVO 215 - Megger About

True RMS CAT III multimeter
AC/DC voltages up to 600 V
ACA/DCA up to 10 A
Resistance 0 to 40 M
Frequency 10 Hz to 10 kHz
Capacitance 0 to 4000 F
Duty Cycle, Diode, Continuity
Function data Hold, MAX/MIN
Bult in flashlight

The AVO215 true RMS multimeter is a rugged compact instrument for demanding environments. It measures true RMS voltage up to 600 V and current to 10 A with 4000 count resolution. As well as resistance, continuity, frequency, and capacitance for quick verifications, it meets CAT III 600 V AC/DC safety and contains a built-in flashlight, making it ideal for wide range of applications.

The AVO215 comes with a range of useful features, such as the continuity function, which provides audio and visual results through the use of a buzzer, and the diode function, which allows forward reverse bias testing of diode and semiconductor junctions. Additionally, the unit has an auto range or manual range selection, enabling you to do the job with precision and speed, and it's MIN/MAX and hold functions allow you to read the results easily in daily use.

Reliable Measurement in a Compact Design

The AVO 215 offers a range of measurements in a lightweight, pocket-sized body, making it convenient for professionals and students alike. Whether you are in the field, a laboratory, or a classroom, this multimeter delivers precise results and is easy to carry due to its dimensions (123 x 67 x 20 mm) and light weight (approx. 115 g). The sturdy ABS case provides extra protection during routine use.

Safety and Durability You Can Trust

Engineered with user safety in mind, the AVO 215 adheres to IEC 61010-1 CAT II 600V standards, incorporates fuse and overload protection, and is housed in a shock-resistant ABS body. These features ensure safe operation and extended device longevity in diverse environments, from educational labs to demanding field settings.

Comprehensive Features for Versatile Applications

Equipped with a 3 1/2 digit LCD, data hold, auto power-off, and audible indicators, the AVO 215 simplifies diagnostics and troubleshooting. Functions such as continuity testing, diode testing, and a 10 M input impedance make it a versatile solution for a wide range of electrical and electronic measurement tasks.

FAQ's of Pocket Size Digital Multimeter AVO 215 - Megger:

Q: How do I operate the Pocket Size Digital Multimeter AVO 215 for voltage measurements?

A: To measure voltage, insert the probes into the appropriate terminals, select the required voltage range (up to 600V AC/DC), and place the probes across the component or circuit to be measured. The 3 1/2 digit LCD will display accurate readings up to 1999 counts.

Q: What safety features does the AVO 215 multimeter provide during usage?

A: The AVO 215 is equipped with fuse protection, overload protection, and meets IEC 61010-1 CAT II 600V safety standards. Its shock-resistant ABS case and insulation box further enhance user safety during electrical measurements.

Q: When should I use the data hold function on the AVO 215?

A: The data hold feature is useful when you need to capture and retain a measurement reading for later viewing, especially in situations where it's difficult to monitor the display continuously.

Q: Where can I use the AVO 215 digital multimeter?

A: This multimeter is suitable for a variety of environments, including general electrical/electronic measurement, field service, educational settings, and laboratory applications. Its compact size and lightweight design make it highly portable for on-site measurements.

Q: What benefits does the continuity buzzer offer during the testing process?

A: The continuity buzzer provides an audible indication when a conductive path is detected during testing. This feature helps users quickly confirm the presence of continuity without watching the display.

Q: How does the auto power-off function work in the AVO 215 multimeter?

A: The auto power-off feature conserves battery life by automatically turning off the device after a period of inactivity, ensuring efficient operation during extended use.

Q: Which range of currents and resistances can the AVO 215 measure?

A: The AVO 215 can measure currents up to 10A and resistances up to 20 M, making it suitable for a wide variety of both high and low-level electrical troubleshooting scenarios.
