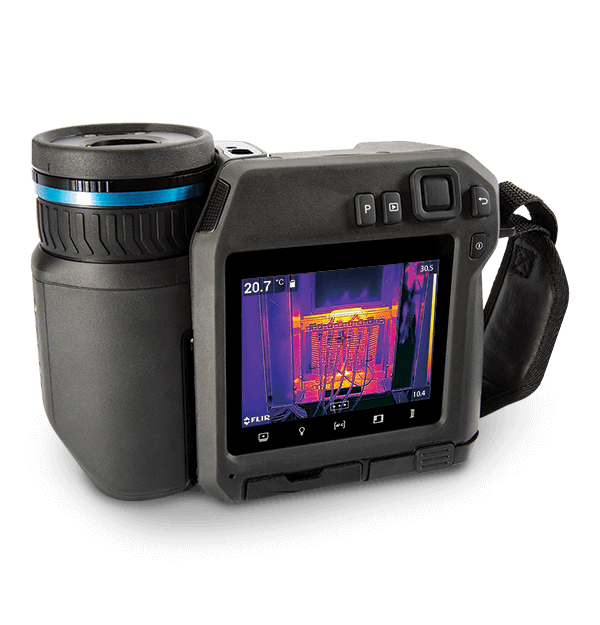

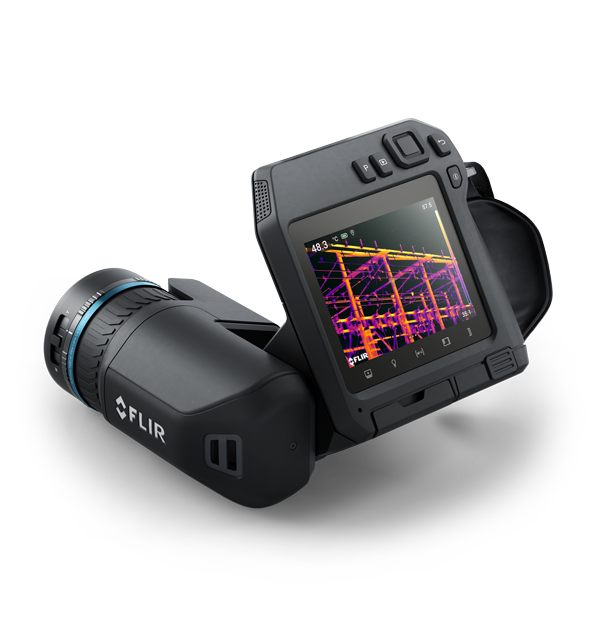

Professional Thermal Camera FLIR T560

Professional Thermal Camera FLIR T560 Specification

Connectivity Type
USB 2.0, Wi-Fi, Bluetooth, HDMI

Camera Range
-20C to 120C, 0C to 650C, 300C to 1500C (three switchable ranges)

Camera Type
Professional Infrared Thermal Camera

Sensor Type
Uncooled microbolometer (VOx)

Camera Style
Handheld thermal imaging camera

Technology
Thermal imaging infrared camera

Special Features
180 rotating optical block, Wi-Fi streaming, Multi Spectral Dynamic Imaging (MSX), UltraMax image enhancement, Laser-assisted autofocus, Voice annotation, Onboard analysis tools

Remote Control
Supported via FLIR Tools Mobile app

Application
Industrial inspection, Electrical diagnostics, Building inspection, Research and development

Camera Size
Approx. 140 x 201 x 84 mm

Camera Pixels
320 x 240 (76,800 pixels)

Screen Resolution
4-inch 640 x 480 touchscreen LCD

Image/Video Quality
Radiometric JPEG, MPEG-4 video recording, high thermal sensitivity (0.03C at 30C)

Power Supply
Rechargeable Li-ion battery, up to 4 hours operating time

Output Formats
JPEG, MPEG-4, radiometric JPEG

File Compatibility
JPEG with full radiometric data, MPEG-4

Operating Temperature Range
-15C to 50C (5F to 122F)

Focus
One-shot laser-assisted autofocus and manual

Emissivity Correction
Yes, variable from 0.01 to 1.00

Field of View (FOV)
24 18 with standard lens

Temperature Measurement Accuracy
2C or 2% of reading

Digital Zoom
1-4x continuous

Storage Media
Removable SD card, USB mass storage

Laser Pointer
Integrated

Thermal Sensitivity
30 mK @ 30C (42F)

Weight
1.3 kg (2.9 lbs) with battery

Software Compatibility
FLIR Tools, FLIR ResearchIR

Image Frame Rate
30 Hz

Data Communication Interface
Wi-Fi, Bluetooth, USB, HDMI, Ethernet via adapter

Drop Test
2 meters (6.6 ft)

Professional Thermal Camera FLIR T560 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Professional Thermal Camera FLIR T560

Troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T560. This 640 480 (307,200 pixel) thermal imaging camera has a bright 4" LCD and a 180 rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure youll record accurate temperature measurements every time. Pair the T560 with a FLIR FlexView dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with FLIR Route Creator plugin).

Exceptional Thermal Sensitivity and Resolution

With a sensitivity of 30 mK at 30C and a detector resolution of 320 x 240 pixels, the FLIR T560 offers outstanding thermal imaging. Its 180 rotating optical block and laser-assisted autofocus allow users to work flexibly in challenging spots while maintaining precise focus on critical targets.

Integrated Connectivity and Storage Solutions

The FLIR T560 supports seamless data transfer through Wi-Fi, Bluetooth, USB, and HDMI. Images and videos can be stored on a removable SD card or via USB mass storage, ensuring ample memory for large projects. The camera also allows direct streaming and remote control using the FLIR Tools Mobile app.

Enhanced Inspection Experience and Analysis

This camera features innovative tools like Multi Spectral Dynamic Imaging (MSX), UltraMax image enhancement, and onboard analysis options for detailed evaluations. Voice annotation, onboard reporting, and radiometric JPEG recording elevate field workflow efficiency and documentation.

FAQ's of Professional Thermal Camera FLIR T560:

Q: How does the FLIR T560 ensure accurate temperature measurements during inspections?

A: The FLIR T560 achieves high accuracy with variable emissivity correction from 0.01 to 1.00, a calibrated temperature range up to 1500C, and a measurement accuracy of 2C or 2% of the reading. These features allow for precise thermal analysis in diverse applications.

Q: What process should I follow to capture and store thermal images with the T560?

A: Simply point the camera at the target, utilize one-shot laser-assisted autofocus, and press the shutter. Images are instantly saved as radiometric JPEGs or MPEG-4 videos on a removable SD card or transferred via USB. All files retain full thermal data for post-analysis.

Q: When is it beneficial to use the FLIR T560's remote control capability?

A: Remote control via the FLIR Tools Mobile app is especially useful when operating in hazardous areas or when the camera must be mounted in hard-to-reach locations. This feature enables live streaming, image capture, and configuration adjustments from a safe distance.

Q: Where can the FLIR T560 be used for inspections?

A: The FLIR T560 is ideal for industrial environments, electrical panels, building surveys, and research labs. Its robust design, 2-meter drop resistance, and operating range of -15C to 50C (5F to 122F) make it suitable for demanding indoor and outdoor tasks.

Q: How does Multi Spectral Dynamic Imaging (MSX) improve image quality?

A: MSX technology overlays visual details onto thermal images, producing clearer and more informative results. This makes it easier to identify problem areas quickly and communicate findings effectively in reports or to team members.

Q: What are the benefits of using the onboard analysis tools?

A: Onboard tools allow immediate image evaluation, temperature measurement, image enhancement, and voice annotation directly on the camera. This streamlines workflow and eliminates the need for separate devices or software during field inspections.
