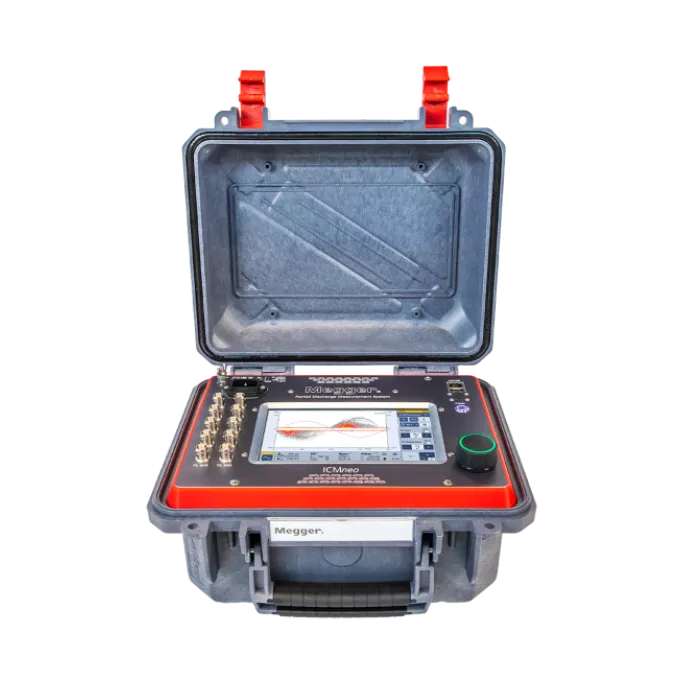

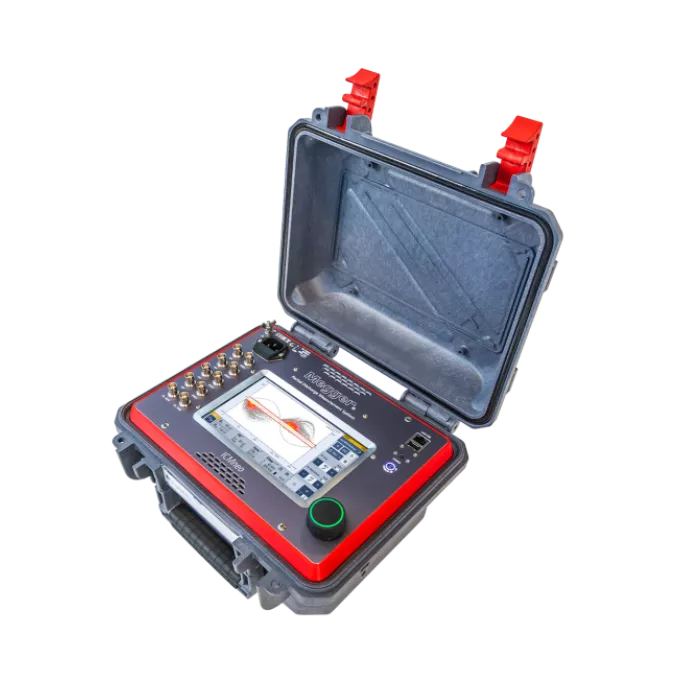

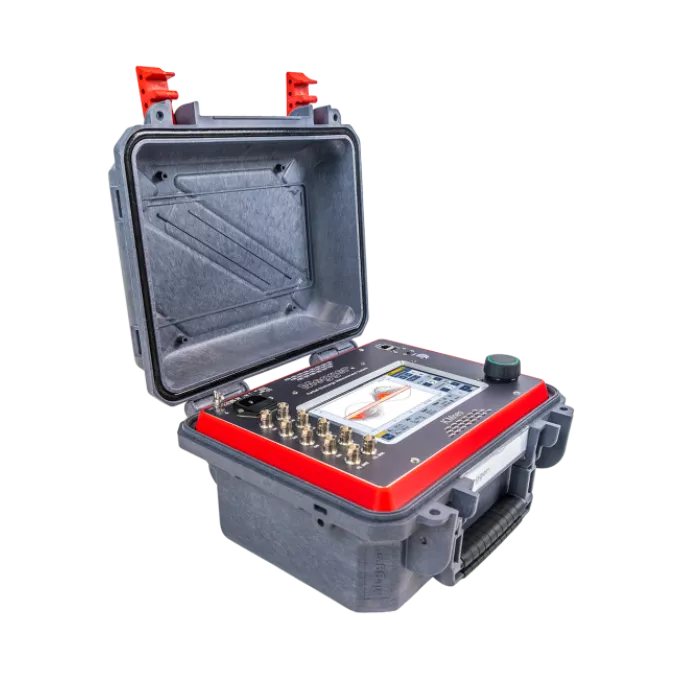

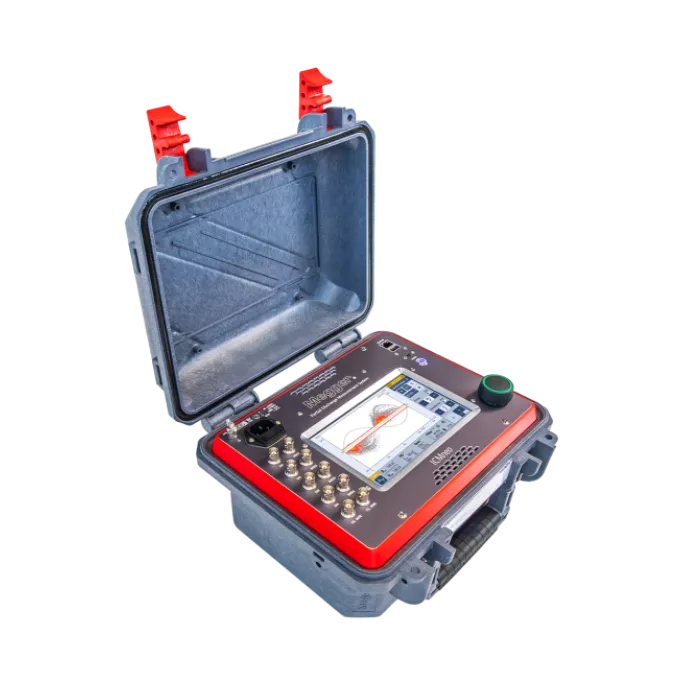

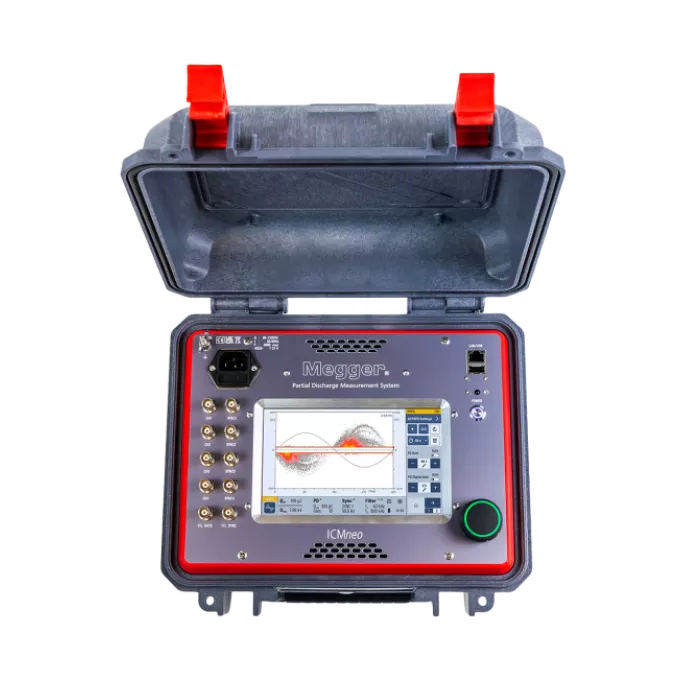

Megger ICMneo Digital Partial Discharge Test and Measurement Device

Megger ICMneo Digital Partial Discharge Test and Measurement Device Specification

Resistant Feature
Shock resistant, water splash resistant, dust protected

Usage & Applications
Partial discharge testing and analysis for cables, transformers, switchgear, rotating machines, and insulation materials

Accuracy
High accuracy digital measurement, meets IEC60270 standards

Pressure
Atmospheric, not a hermetically sealed device

Batteries Type
Rechargeable battery and mains powered operation

Product Type
Digital Partial Discharge Test and Measurement Device

Material
High-grade industrial plastic/ABS polymer

Measuring Voltage Range
Up to 400 kV (with appropriate coupling units)

Operating Temperature
-10C to +50C

Frequency (MHz)
Up to 80 MHz (depending on PD measurement requirements)

Insulation Box
Yes, includes rugged carrying and protection case

Protection System
Integrated protection for harsh environments, IP54 rating (with closed lid)

Size
Portable, compact

Color
Grey and Red

Dimension (L*W*H)
Approx. 340 x 300 x 170 mm

Weight
Approx. 6 kg

Cooling
Passive, fanless design

Display
7" color touchscreen display for live analysis

Calibration
Automatic on-device calibration

Remote Control
Supports remote test execution via network

User Interface
Intuitive graphical user interface with physical rotary knob

Input Channels
Up to 10 inputs depending on configuration

Data Storage
Internal memory plus USB data export

Languages
Multi-language support

Test Capabilities
Supports both online and offline PD measurements

Safety Compliance
Meets international PD and electrical safety standards

Connectivity
Ethernet, USB, and Wi-Fi options for data transfer and remote access

Software
Advanced analysis software included, compatible with Windows

Synchronization
Integrated phase-resolved PD analysis (PRPD)

Megger ICMneo Digital Partial Discharge Test and Measurement Device Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
30 Days

Megger ICMneo Digital Partial Discharge Test and Measurement Device About

Megger ICMneo is a compact digital partial discharge testing and measurement device designed for condition assessment of medium- and high-voltage insulation systems. It supports up to four real-time parallel measurement channels and features an integrated 7-inch touchscreen for easy field and factory operation. The battery-operated system provides up to five hours of portable operation and supports advanced PD analysis, including spectrum analysis and UHF measurement modes. ICMneo is suitable for factory acceptance testing, post-repair assessment, quality assurance, and online or offline spot testing of transformers, rotating machines, MV/HV cables, bushings, cable accessories, instrument transformers and other HV components. It supports partial discharge measurement in accordance with IEC 60270.

Advanced Partial Discharge Analysis

Benefit from integrated phase-resolved PD analysis (PRPD), advanced software compatibility, and live data visualization through the 7-inch color touchscreen display. The ICMneo brings reliable diagnostics to your critical electrical assets, ensuring proactive maintenance and enhanced operational safety through accurate and detailed measurement results.

Rugged, User-Friendly Design

Engineered using high-grade industrial plastic/ABS polymer and insulated with a robust carrying case, the ICMneo withstands demanding environments. Its IP54 rating (with closed lid), shock and splash resistance, and fanless cooling system make it ideal for fieldwork. Navigation is intuitive, thanks to its graphical user interface and practical rotary knob controls.

Versatile Connectivity & Data Management

Facilitate seamless data export and collaboration with built-in Ethernet, USB, and Wi-Fi, along with ample internal storage and USB data export capability. The included software supports comprehensive report generation and remote test execution, enabling efficient, secure workflows and asset management from anywhere.

FAQ's of Megger ICMneo Digital Partial Discharge Test and Measurement Device:

Q: How does the Megger ICMneo perform partial discharge (PD) testing in the field?

A: The ICMneo supports both online and offline PD measurements on a variety of assets such as cables, transformers, and switchgear. Its robust and portable design, combined with automatic on-device calibration and integrated PRPD analysis, enables precise and fast assessment of insulation health in field conditions.

Q: What storage and data transfer options are available on the Megger ICMneo?

A: This device offers internal memory for data storage and supports USB data export. For greater flexibility, Ethernet and Wi-Fi connectivity allow remote access, data synchronization, and smooth integration with analysis software on Windows PCs, streamlining data management and reporting.

Q: When should I use the ICMneo for PD measurement?

A: Use the ICMneo during routine maintenance, commissioning, or troubleshooting of electrical insulation systems. Its high accuracy digital measurements, in compliance with IEC60270 standards, provide timely detection of insulation defects, helping you prevent potential failures and costly downtime.

Q: Where can the ICMneo be applied for partial discharge analysis?

A: The device is suitable for on-site and laboratory assessments of various electrical assets, including medium- and high-voltage cables, transformers, rotating machinery, switchgear, and insulation materials. Its protective case and shock-resistant build facilitate use in challenging, harsh environments.

Q: What is the process for operating the Megger ICMneo?

A: Begin by connecting the device to your test object and performing the automatic device calibration. Navigate settings using the touchscreen and rotary knob, perform live measurements, and save your data to internal memory or export via USB/Ethernet/Wi-Fi. Advanced analysis can then be conducted using the included software.

Q: How does the ICMneo benefit operators and asset managers?

A: The ICMneo enhances maintenance strategies by providing rapid, reliable diagnostics of insulation integrity. Its portability, robust design, and broad connectivity streamline workflows, minimize equipment downtime, and ensure compliance with international safety standards.
