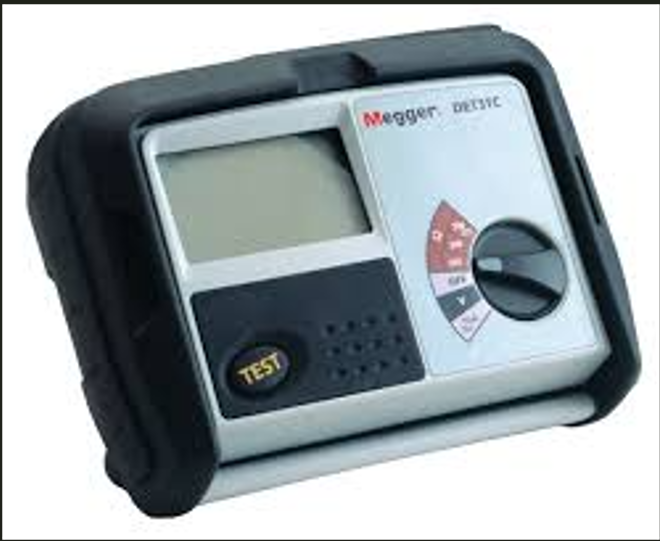

DET3TC Three-terminal earth/ground resistance tester

DET3TC Three-terminal earth/ground resistance tester Specification

Batteries Type
8 x AA (LR6) Alkaline

Accuracy
2% of reading 3 digits

Resistant Feature
Dust & water-resistant to IP54

Usage & Applications
Measurement of earth/ground resistance in electrical installations

Product Type
Three-terminal earth/ground resistance tester

Material
Rugged ABS Plastic

Measuring Voltage Range
0 - 50V AC (Earth voltage)

Operating Temperature
-15C to +55C

Frequency (MHz)
Not specified (test frequency 128 Hz nominal)

Insulation Box
High-impact plastic insulation casing

Protection System
Overvoltage protection on terminals

Size
Compact, hand-held design

Color
Grey/Black

Dimension (L*W*H)
203 x 148 x 78 mm

Weight
Approx. 1 kg

Power Supply
Battery operated

Display Type
Large clear analog/digital display

Included Accessories
Test leads, earth stakes, carry pouch

Resistance Measurement Range
0.01 to 2000

Test Current
Maximum 2 mA (AC)

Test Lead Length
Up to 30 meters

Voltage Warning Indicator
Yes, warning if hazardous voltage detected

Safety Standards
IEC61010 CAT IV 100V

Storage Temperature
-25C to +70C

Terminal Types
C1, C2, P1, P2 (three-terminal operation)

DET3TC Three-terminal earth/ground resistance tester Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About DET3TC Three-terminal earth/ground resistance tester

2 and 3 point testing
ART (Attached Rod Technique) testing capability
Selectable 25 V or 50 V output
Warning indicators prevent test failure
IP54 rated

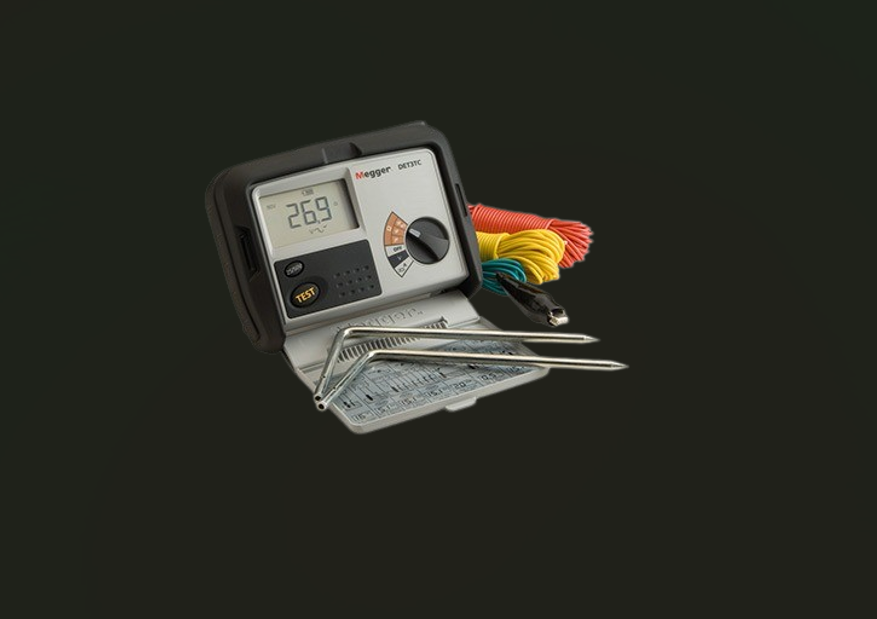

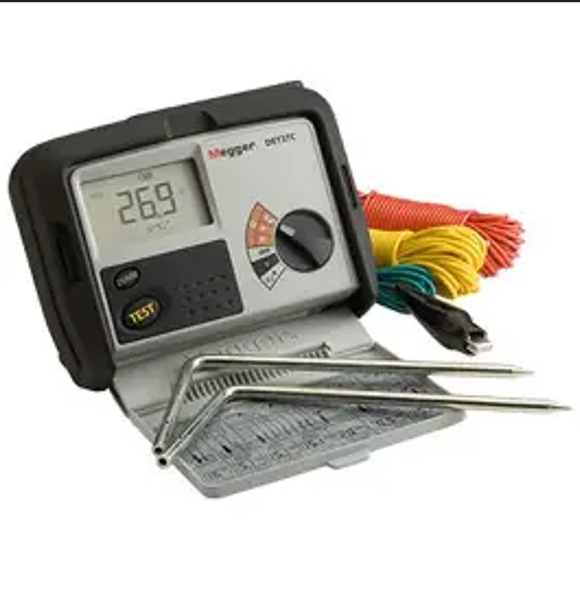

Complete with leads, stakes, and rugged carry case
Simple one-button operation
Calibration test certificate included
Optional earth testing kit (ETK) available

The DET3TC is capable of testing on-site grounds without disconnecting the utility connection. The complete kit gives you everything you need to start testing and consists of the instrument, test leads, stakes, batteries, and calibration certificate delivered in a tough polypropylene carry case.

The DET3TC is easy to use, with a large selector switch that enables you to change between two-pole or three-pole testing, and can be operated easily with gloved hands. What's more, the design makes the fitting of shorting links for two-pole testing a thing of the past.

The earth/ground rod tester is rated to IP54, making it a hardy outdoor instrument. Using the optional clamp around the earth/ground rod connection allows the testing of the rod without the need for disconnection, leaving the earthing system intact during testing (ART). A large, clear, easy-to-read LCD display and thumb-sized test button also makes the instrument particularly suited outdoor conditions.

Advanced Safety and Durability

The DET3TC tester is engineered for high reliability, incorporating overvoltage protection on all terminals and a voltage warning indicator to alert users of hazardous voltages during testing. Its rugged ABS casing offers excellent impact resistance, and IP54-rated dust and water protection ensures dependable operation in challenging environments. Designed to meet IEC61010 CAT IV 100V safety standards, this device delivers peace of mind during demanding fieldwork.

Versatile Field Applications

Tailored for measuring earth and ground resistance in a variety of electrical installations, the DET3TC is perfect for utilities, construction, and maintenance professionals. Its ability to use test leads up to 30 meters and operate across a wide temperature range, from -15C to +55C, makes it adaptable to both indoor and outdoor environments. The inclusion of a carry pouch and lightweight, compact design enhances portability and convenience on-site.

FAQ's of DET3TC Three-terminal earth/ground resistance tester:

Q: How do I use the DET3TC to measure earth resistance?

A: To measure earth resistance, connect the supplied test leads and earth stakes to the C1, C2, P1, and P2 terminals, positioning the earth stakes adequately in the ground (up to 30 meters apart). Select the test function, ensure the area is clear of hazardous voltages-indicated by the warning light-and observe results on the large analog/digital display.

Q: What safety features are included in the DET3TC tester?

A: The tester features overvoltage protection on all terminals and a voltage warning indicator that alerts you if a hazardous voltage is detected, ensuring testing is performed safely. Its design is compliant with IEC61010 CAT IV 100V standards for electrical safety.

Q: Where can the DET3TC be effectively used?

A: This instrument is ideal for measuring earth/ground resistance in diverse environments such as construction sites, substations, and facility maintenance areas. Its robust and water-resistant design makes it suitable for both indoor and outdoor applications, even under challenging conditions.

Q: What is the benefit of the large analog/digital display?

A: The large, clear analog/digital display provides quick and accurate readings, minimizing errors and improving ease of use. This helps users interpret measurements confidently, even in low-light or outdoor environments.

Q: How is the DET3TC powered and what type of batteries does it use?

A: The DET3TC operates on 8 AA (LR6) alkaline batteries, ensuring reliable performance and ease of replacement during field use without the need for external power sources.

Q: What accessories are included with the DET3TC?

A: Each package includes test leads, earth stakes, and a convenient carry pouch for easy transportation and setup, enhancing user experience and efficiency during measurements.
