ICMmonitor On-line Partial Discharge Monitor

ICMmonitor On-line Partial Discharge Monitor Specification

Usage & Applications
Continuous on-line PD monitoring for transformers, GIS, switchgear, cables, and other MV/HV assets

ICMmonitor On-line Partial Discharge Monitor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

ICMmonitor On-line Partial Discharge Monitor About

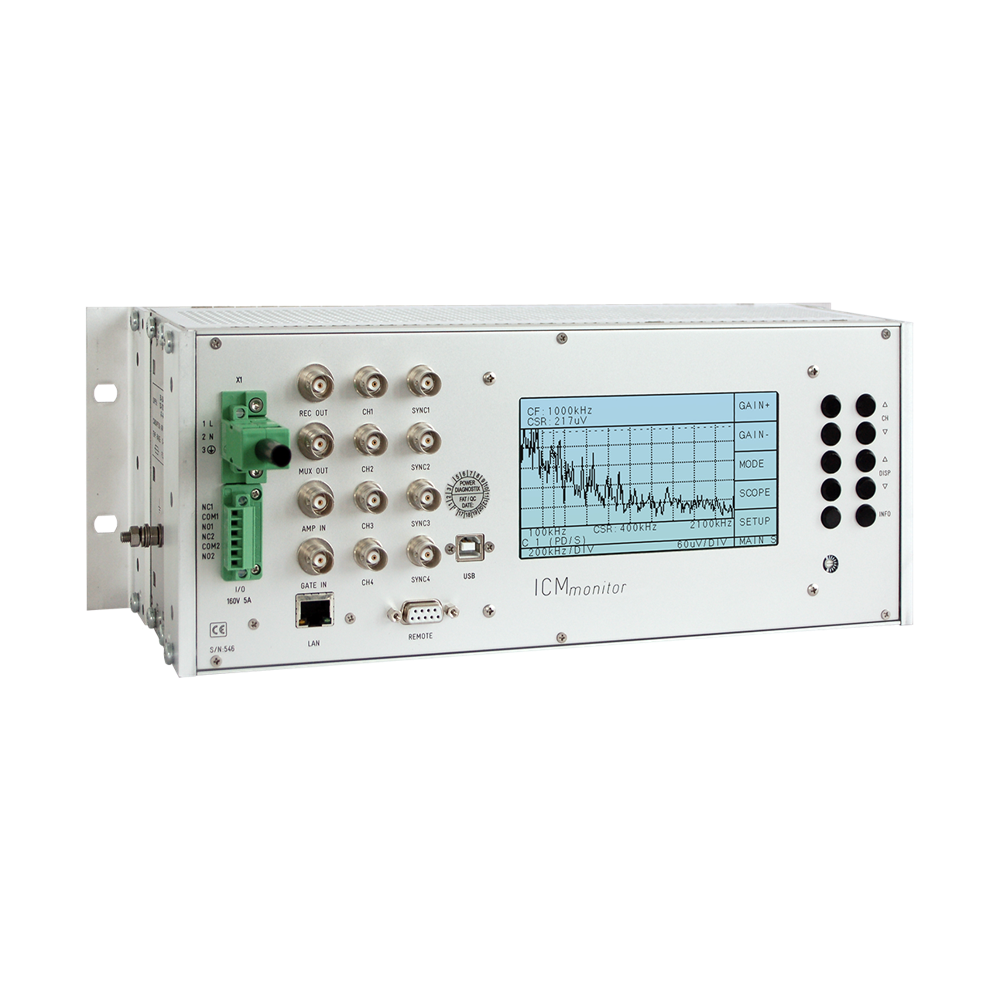

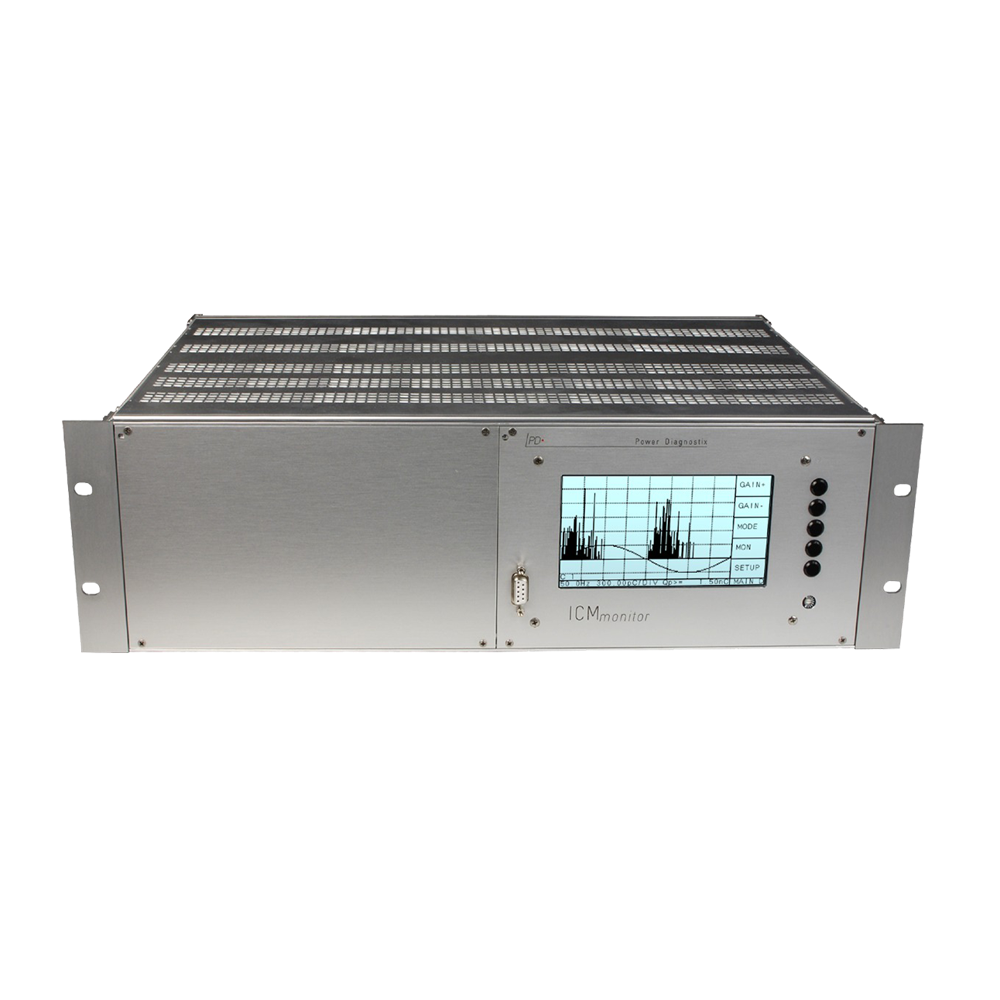

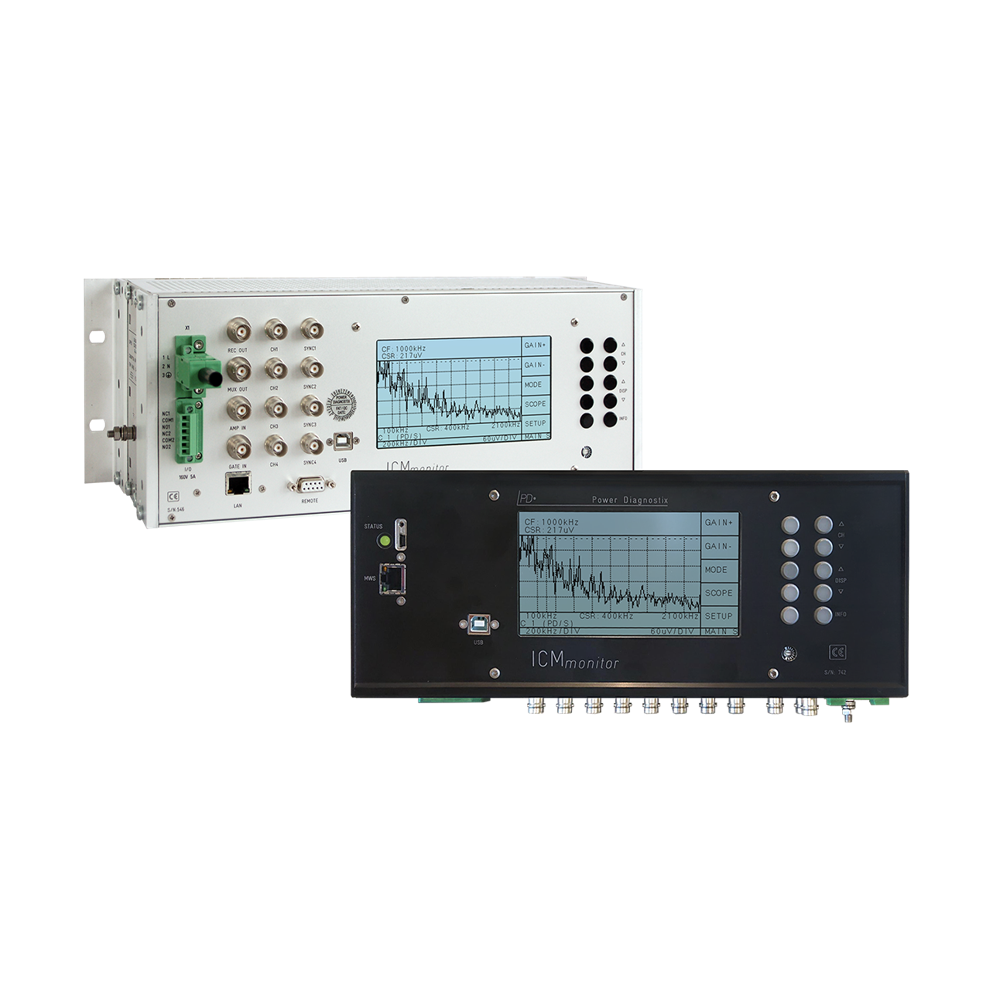

Megger ICMmonitor On-line Partial Discharge Monitor, available with Adiradh Offers, is a permanent on-line monitoring system designed for continuous insulation condition assessment of medium and high voltage assets. It provides real-time PD detection, trending, and early warning of insulation defects in transformers, GIS, switchgear, and cables. The system supports multiple UHF channels, advanced noise suppression, and remote software monitoring, enabling utilities and industries to prevent failures, reduce downtime, and optimize maintenance schedules. Its rugged design ensures reliable operation in harsh environments, delivering accurate, standards-compliant PD data around the clock.

Specifications:

Monitoring Type: Continuous on-line partial discharge monitoring
Measurement Standard: IEC 60270 compliant
Channels: Up to 40 parallel UHF channels
PD Sensor Type: Embedded or retrofit UHF sensors, disturbance antennas
Interface: LAN/USB, remote software visualization
Measurement Modes: AC phase-resolved PD, DC time-based PD, spectrum analysis
Noise Suppression: Gating and interference separation
Power Supply: AC mains with backup options

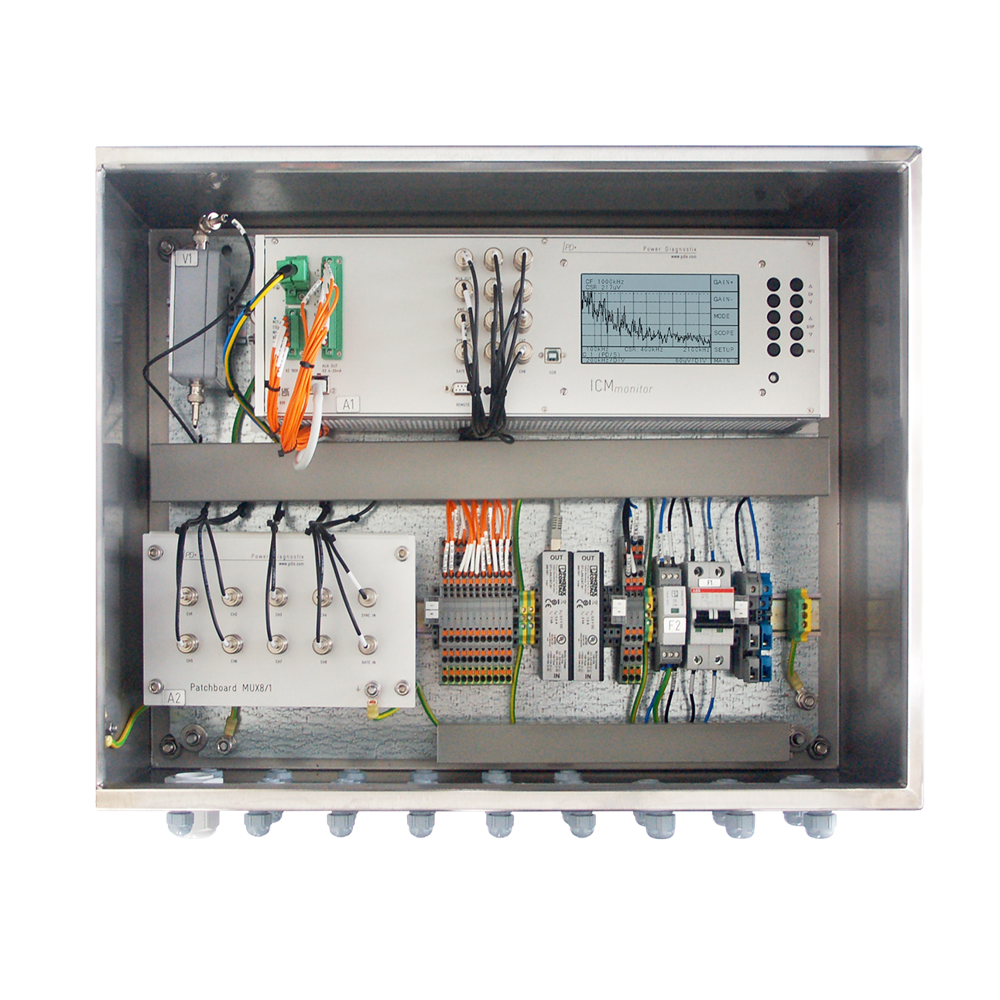

Portability: Fixed installation, rugged design
Operating Environment: Outdoor and industrial harsh conditions
Software Support: ICMmonitor software for trending, visualization, and alarms

Advanced On-line PD Monitoring

The ICMmonitor is specifically engineered to provide real-time surveillance of partial discharges in essential electrical infrastructure. Its monitoring extends to transformers, gas-insulated switchgear (GIS), power cables, and more, capturing changes as they occur to help anticipate failures before they escalate.

Key Application Areas

Its versatility makes the ICMmonitor ideal for use in substations, industrial facilities, and utility networks where asset reliability is critical. By facilitating ongoing condition assessments, it supports informed maintenance scheduling and optimizes asset lifespan.

FAQ's of ICMmonitor On-line Partial Discharge Monitor:

Q: How does the ICMmonitor On-line Partial Discharge Monitor operate?

A: The ICMmonitor continuously tracks partial discharge activities in real time by analyzing electrical signals from MV/HV assets. It detects insulation degradation and provides data for early corrective actions.

Q: What equipment can be monitored using the ICMmonitor?

A: This device is suitable for transformers, GIS, MV/HV cables, and switchgear, making it a flexible solution for multiple types of electrical infrastructure.

Q: When should I use an on-line partial discharge monitor for my assets?

A: It is recommended to use the ICMmonitor during the operational life of MV/HV assets to ensure uninterrupted monitoring. Early installation facilitates prompt defect detection and long-term reliability.

Q: Where can I source the ICMmonitor in India?

A: The ICMmonitor is available through authorized suppliers and traders across India. You can contact local electrical equipment distributors or specialized monitoring solution providers for procurement.

Q: What is the process of installing the ICMmonitor for PD detection?

A: Installation involves connecting the monitor's sensors to the target asset, configuring the system to local network protocols, and initiating calibration. Most suppliers offer technical guidance and support during installation.

Q: How does continuous PD monitoring benefit my asset management strategy?

A: Continuous PD monitoring provides early fault detection, enabling condition-based maintenance and reducing the likelihood of unexpected failures. It maximizes uptime and contributes to safer, more cost-effective operations.
