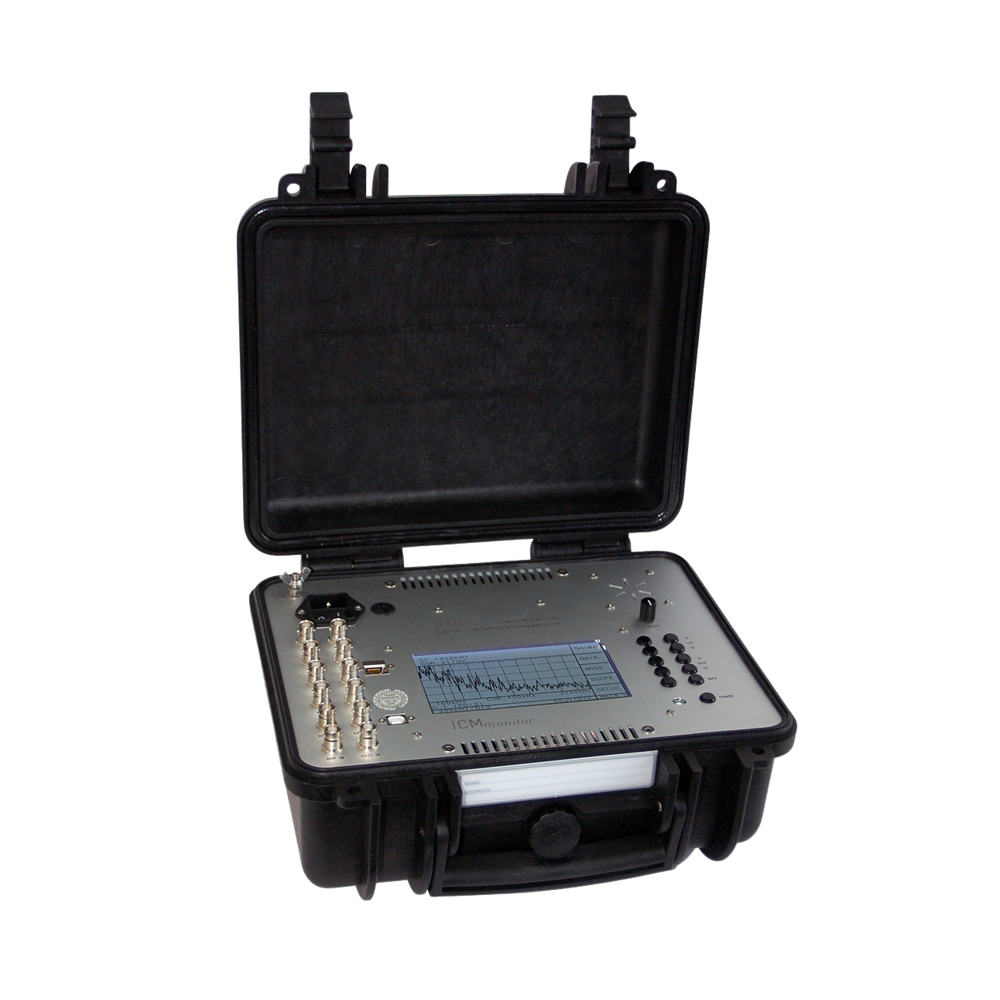

ICMmonitor Portable Partial Discharge Monitoring System

ICMmonitor Portable Partial Discharge Monitoring System Specification

Usage & Applications
Temporary PD monitoring and diagnostics for transformers, GIS, switchgear, cables, and MV/HV electrical assets.

ICMmonitor Portable Partial Discharge Monitoring System Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About ICMmonitor Portable Partial Discharge Monitoring System

Megger ICMmonitor Portable is a versatile portable partial discharge monitoring system, available with Adiradh Offers, designed for real-time insulation condition assessment of medium and high voltage electrical assets. It allows parallel PD acquisition on multiple channels, supports advanced noise separation, and provides accurate PD measurement and visualization on-site. Its rugged and compact design ensures reliable performance in harsh environments, making it ideal for temporary monitoring of transformers, GIS, cables, and switchgear. Moreover, the system is compatible with Megger PD software for detailed analysis, trending, and reporting, providing engineers with actionable insights for preventive maintenance and asset management.

Specifications:

Monitoring Type: Temporary / portable online partial discharge monitoring
Measurement Standard: IEC 60270 compliant
Channels: Up to 40 parallel UHF channels
PD Sensor Type: UHF sensors, disturbance antenna, coupling devices
Display/Interface: USB/LAN connection to PC, software visualization for up to 24 sensors
Measurement Modes: AC phase-resolved PD, DC time-based PD, spectrum analysis
Noise Suppression: Gating for interference separation
Power Supply: Battery operation / AC mains
Portability: Rugged, compact, and field-ready
Operating Environment: Outdoor and harsh field conditions
Software Support: Compatible with ICMmonitor and GISmonitor software

Applications:

Transformer temporary PD monitoring
GIS and switchgear PD assessment
Cable and accessory condition diagnostics
On-site maintenance and testing
Preventive maintenance and trending

Versatility in Electrical Asset Monitoring

The ICMmonitor excels in temporarily monitoring partial discharge activity in various electrical equipment, such as transformers, GIS, switchgear, and both medium and high-voltage cables. This adaptability ensures optimal performance and protection of critical assets, minimizing downtime and optimizing maintenance planning.

Enhanced Maintenance Strategy

With real-time data collection and analysis, the ICMmonitor empowers asset managers to make informed decisions. By identifying PD issues early, maintenance teams can proactively address problems before failures occur, ultimately improving system reliability and extending equipment life.

FAQ's of ICMmonitor Portable Partial Discharge Monitoring System:

Q: How is the ICMmonitor Portable PD Monitoring System used in the field?

A: The ICMmonitor is transported to the site and connected to the electrical asset under observation-be it a transformer, GIS, switchgear, or cable. It continuously monitors partial discharge activity, offering valuable diagnostic data to engineers and maintenance teams for immediate analysis.

Q: What types of electrical assets can be diagnosed using the ICMmonitor?

A: This system is designed for a wide range of electrical equipment, including transformers, gas-insulated switchgear (GIS), conventional switchgear, and both medium and high-voltage cables, supporting comprehensive PD diagnostics across power networks.

Q: When should the ICMmonitor be deployed for asset monitoring?

A: The ICMmonitor is ideal for temporary monitoring situations, such as during scheduled maintenance, commissioning of new equipment, troubleshooting suspected PD issues, or before major operational changes to ensure asset integrity.

Q: Where can the ICMmonitor be purchased or sourced in India?

A: The ICMmonitor Portable PD Monitoring System is available through authorized suppliers and traders across India. Contact your local distributor or electrical asset management specialist for procurement details.

Q: What is the process of performing partial discharge monitoring with this system?

A: Users simply connect the system's sensors to the asset, power up the device, and initiate monitoring. The ICMmonitor captures PD signals and provides real-time analysis, helping users interpret data and plan maintenance strategies accordingly.

Q: What are the main benefits of temporary PD monitoring with the ICMmonitor?

A: Temporary PD monitoring with the ICMmonitor enables early detection of insulation defects, prevents unexpected downtime, supports informed maintenance decisions, and prolongs asset life, thereby reducing overall operational costs.
