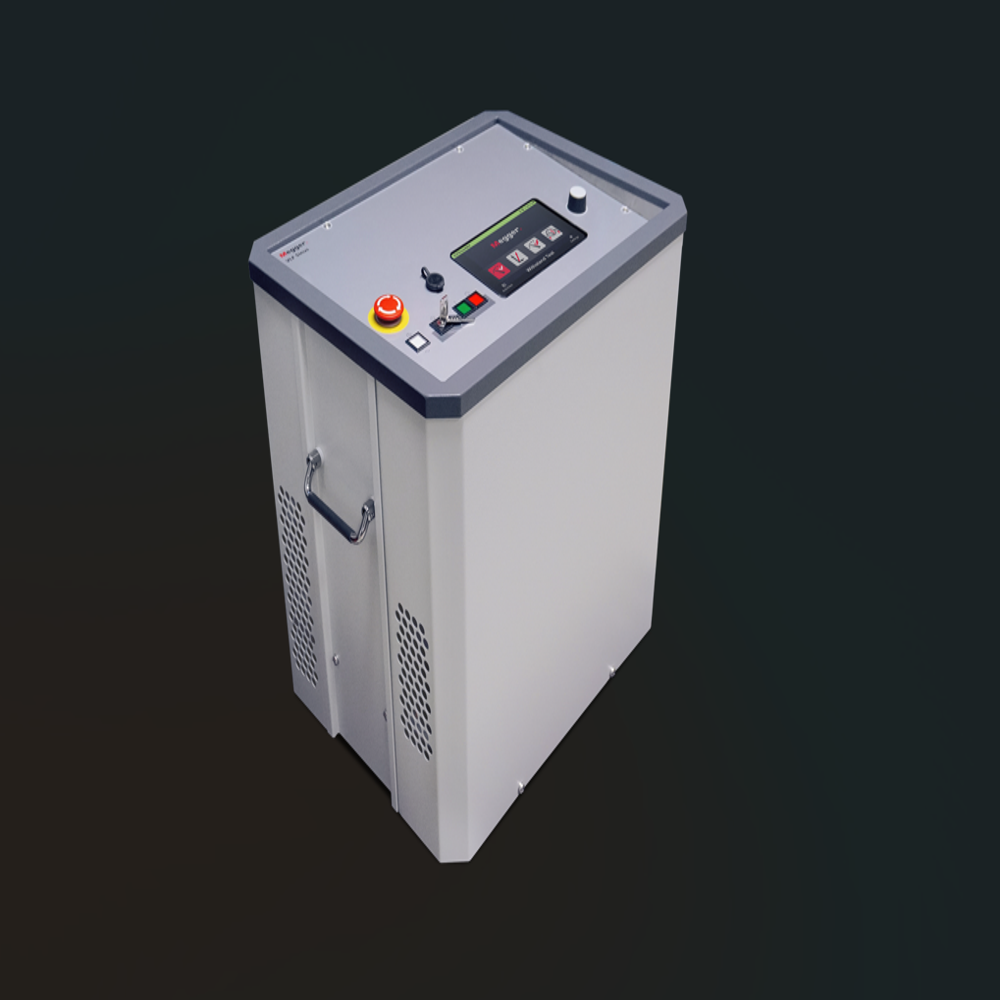

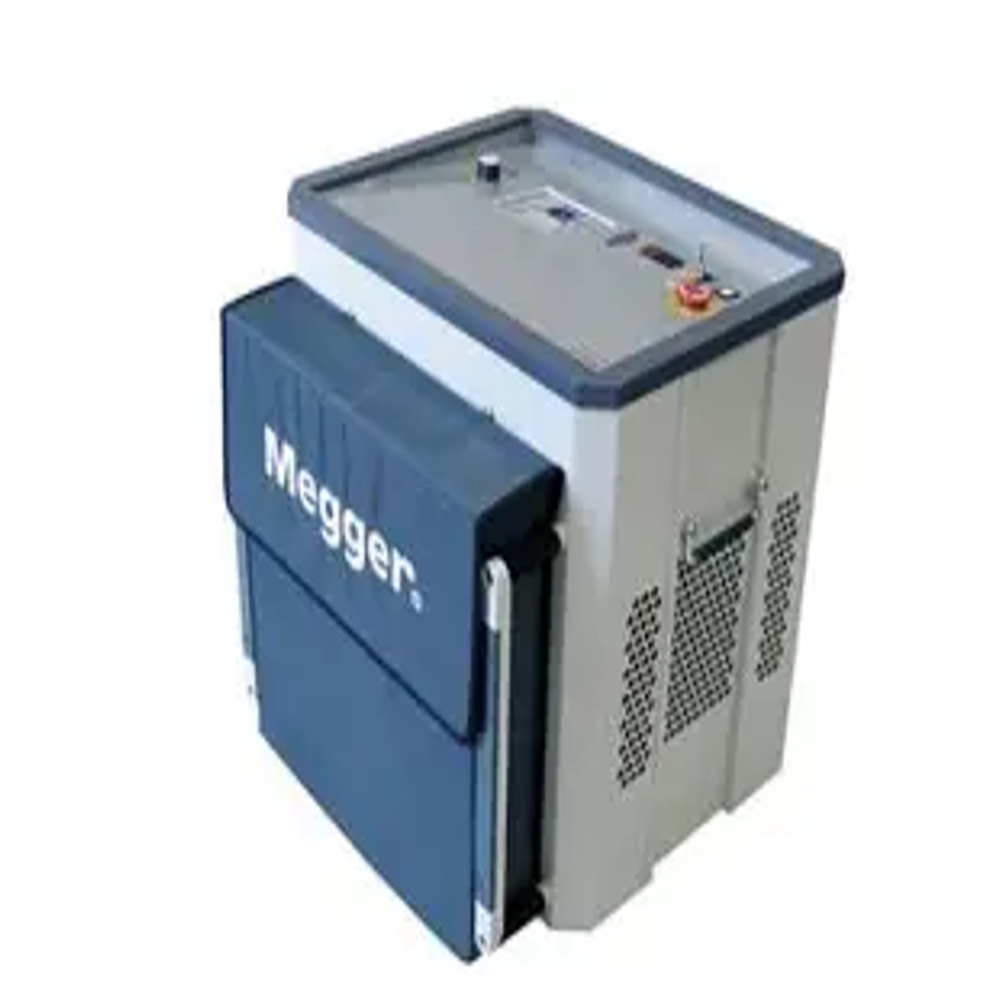

VLF Sine Wave High Voltage Test Set - 45 kV

VLF Sine Wave High Voltage Test Set - 45 kV Specification

Accuracy
1% full scale

Pressure
Atmospheric

Resistant Feature
Shock-resistant, Weather-resistant enclosure

Batteries Type
Mains operated, No internal batteries

Usage & Applications
Testing insulation of cables, transformers, generators, and other electrical apparatus

Product Type
VLF Sine Wave High Voltage Test Set

Material
High-Grade Industrial Plastic & Metal

Measuring Voltage Range
0 - 45 kV (RMS)

Operating Temperature
-10C to +50C

Frequency (MHz)
0.01 Hz to 1 Hz (Sine Wave Output)

Insulation Box
Yes, built-in

Protection System
Overload, Overheat, Overcurrent, and Short-circuit Protection

Size
Compact and portable

Color
Blue & Grey

Dimension (L*W*H)
450 mm x 320 mm x 280 mm

Weight
Approximately 18 kg

Control Method
Microprocessor-based operation with programmable timer

Display Type
Digital LCD Display

Test Duration
0-60 minutes (adjustable)

Standards Compliance
IEC 60502-2, IEEE 400.2, VDE standards

Cooling System
Forced Air Cooling

Safety Interlocks
Automatic discharge and grounding circuit

Max Output Current
15 mA

Input Voltage
220V 10%, 50/60 Hz

Data Storage
Up to 200 test records

Output Voltage Waveform
True Sine Wave

VLF Sine Wave High Voltage Test Set - 45 kV Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

VLF Sine Wave High Voltage Test Set - 45 kV About

Spotlight your cable and equipment testing with the radiant VLF Sine Wave High Voltage Test Set - 45 kV, offered at a reduced price for an ephemeral time. Featuring a potent true sine wave output, digital LCD display, and microprocessor-based control, this test set delivers incomparable performance and accuracy. It integrates a programmable timer, stores up to 200 records, and is fortified with automatic safety interlocks. Its shock-resistant, weatherproof enclosure and compact build make it resilient for diverse environments. Compliant with IEC 60502-2, IEEE 400.2, and VDE standards, this portable solution stands out for professional electrical testing needs.

Effortless Operation & Versatile Application

To use the VLF Sine Wave High Voltage Test Set - 45 kV, connect the device to the mains and select the appropriate voltage and timer setting via the digital LCD console. Apply the output terminals to the insulation surface of cables, transformers, generators, or related apparatus requiring high-voltage testing. Designed for periodic or on-demand usage, it suits both maintenance and commissioning tasks, providing accurate diagnostics across a wide array of electrical components while upholding safety and reliability.

Smooth Delivery and Global Reach

Shipment times for the VLF Sine Wave High Voltage Test Set - 45 kV are typically estimated between 2 to 4 weeks, with careful consideration of export market requirements and delivery expenditures. The product is exported globally, with significant demand in Asia, Africa, Europe, and the Middle East. Certified as per IEC 60502-2, IEEE 400.2, and VDE standards, each unit arrives with documentation and rigorous inspection, ensuring you receive a compliant, world-class testing solution.

FAQ's of VLF Sine Wave High Voltage Test Set - 45 kV:

Q: How does the VLF Sine Wave High Voltage Test Set enhance the testing process?

A: The VLF Test Set's microprocessor-based controls, precise sine wave output, and automated safety systems ensure reliable, accurate testing of insulation in cables and electrical apparatus, streamlining workflows and boosting confidence in results.

Q: What surfaces or equipment can this test set be applied to?

A: This unit is designed for testing the insulation integrity of a wide range of surfaces, including cables, transformers, generators, and similar high-voltage electrical devices found in industrial and utility settings.

Q: Where is the data from each test stored and how many records can be kept?

A: Test records are stored internally in the device's memory. The VLF Test Set has the capacity to securely keep up to 200 test records for easy recall and assessment.

Q: When should the VLF Sine Wave High Voltage Test Set be used?

A: It should be used during routine maintenance, post-installation commissioning, or after repairs of high-voltage equipment to ensure the insulation is intact and complies with relevant safety standards.

Q: What are the main benefits of using this test set over conventional options?

A: The main benefits include accurate true sine wave output, enhanced safety interlocks, robust weather-resistant build, portability, programable testing features, and compliance with international testing standards.
