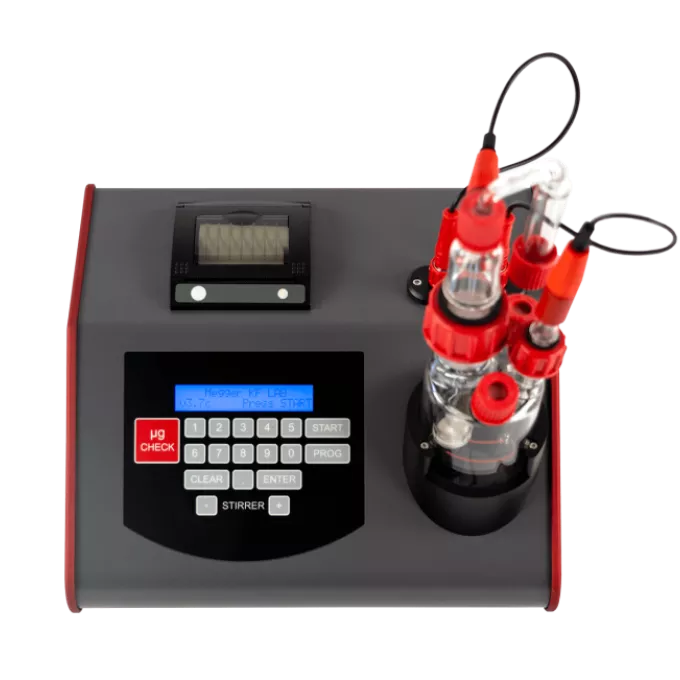

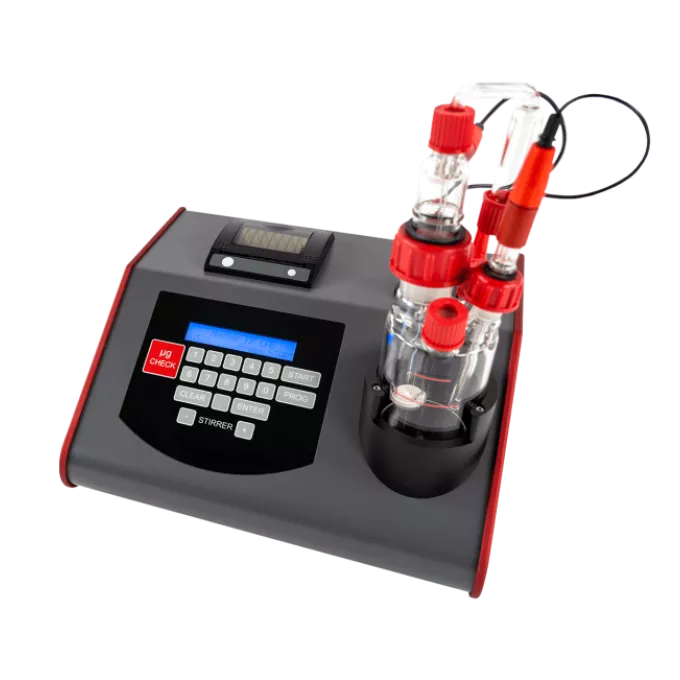

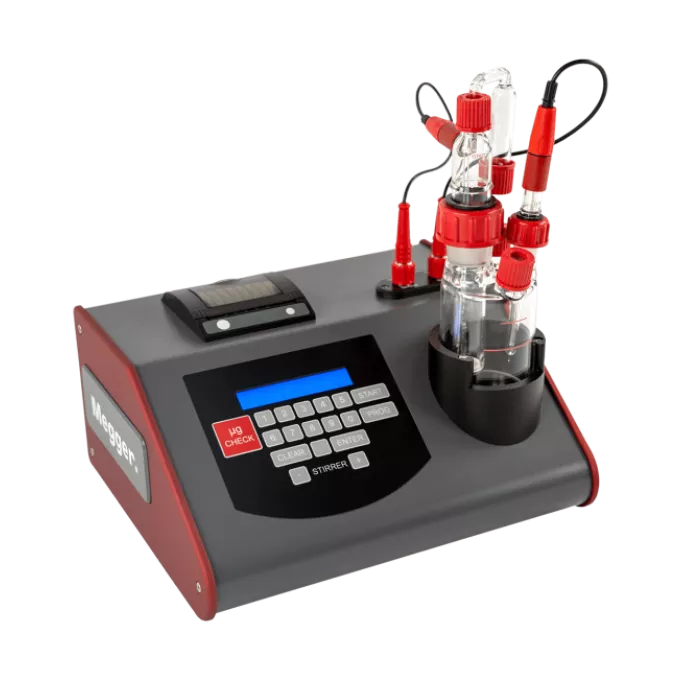

Moisture In Oil Test Sets-Karl Fischer

Moisture In Oil Test Sets-Karl Fischer Specification

Storage Temperature
0C to 60C

Temperature Range
10C to 50C

Language
English

Connecting Type
Clip connectors

Model
Karl Fischer Moisture In Oil Test Set

Operating Temperature
10C to 50C

Connector
Banana type

Humidity %
80% RH (non-condensing)

Frequency
50Hz

Sensitivity
High Sensitivity

Output
In-built printer and digital output

Response Time
Within seconds

Input
Touch Keypad

Resolution
0.1 g (microgram) H2O

Process Connection
Standard KF glassware with electrode ports

Application Media
Oils and liquids

Color
Grey/Red

Equipment Type
Moisture Analyzer

Mounting
Table Top

Sensor Type
Karl Fischer electrode

Stability
Auto Drift Compensation

Dimension (L*W*H)
350 x 300 x 200 mm

Housing Material
ABS & Engineering Plastic

Measuring Units
ppm, %

Measurement Range
1 ppm to 100% moisture

Connectivity Type
Inbuilt printer, RS232 interface

Material
ABS Body with Chemical Resistance

Power Supply
230V AC, 50Hz

Power Consumption
25 Watt

Accuracy
1% of reading

Display Type
Alphanumeric LCD Display

Range
1 ppm to 100% moisture

Stirring System
Magnetic Stirrer with Adjustable Speed

Sample Size
0.5 ml to 10 ml

Operation Mode
Auto/Manual/Programmable

Printer Type
Thermal In-built Printer

Glassware Compatibility
All Standard Volumetric and Coulometric Karl Fischer Glassware

Voltage Tolerance
10%

Moisture In Oil Test Sets-Karl Fischer Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About Moisture In Oil Test Sets-Karl Fischer

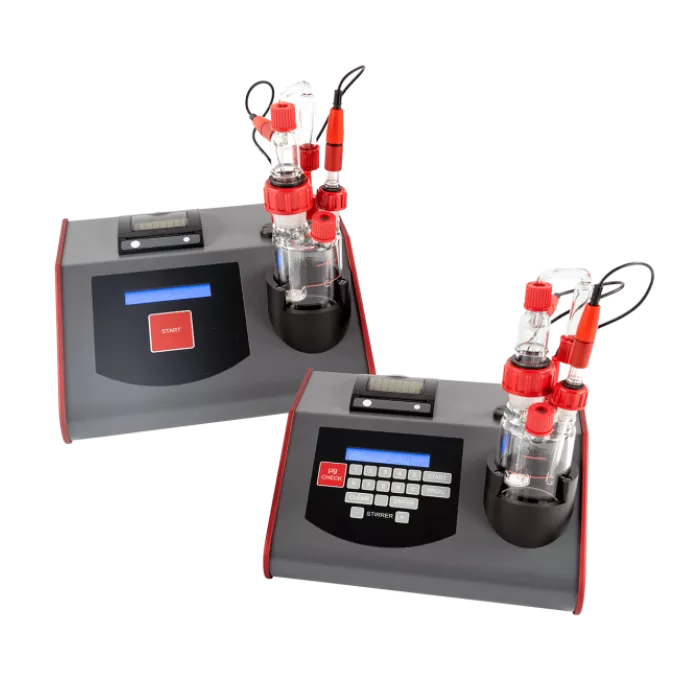

Adiradh energy offers Megger make Coulometric Karl Fischer Test Sets KF875-&KF Lab Mk-II designed to determine moisture in oil, to provide highly accurate results on-site. Optimized for testing insulating oils with a specific gravity of 0.875, the kit simply requires the operator to press one button and inject a 1ml sample into the test cell.Coulometric Karl Fischer Oil Test Set allows the titration of samples with a range of specific gravities from 0.60 to 1.40 and also permits the use of different sample sizes. It can be used to measure water content in a variety of different materials but is also easy to set up for transformer insulating oils.

High Sensitivity & Wide Compatibility

This moisture analyzer employs a Karl Fischer electrode for precise detection and accommodates all standard volumetric and coulometric Karl Fischer glassware. Its adjustable magnetic stirrer ensures homogeneous sample mixing for consistent test outcomes across oils and other liquids.

Automatic & Programmable Operations

Choose from automatic, manual, or fully programmable modes to suit different analysis needs. The auto drift compensation feature ensures stable results, while its touch keypad and user-friendly LCD interface make operation intuitive for both experienced technicians and new users.

Reliable Data Output and Connectivity

Equipped with an inbuilt thermal printer and RS232 interface, the test set provides documented results and digital data integration. Results are instantly available through the alphanumeric display and hard copy printouts for straightforward record-keeping.

FAQ's of Moisture In Oil Test Sets-Karl Fischer:

Q: How does the Karl Fischer Moisture In Oil Test Set determine moisture levels in samples?

A: The instrument uses the Karl Fischer titration method to accurately measure water content in oils and liquids. Its sensitive electrodes and adjustable stirring system ensure thorough sample analysis for precise moisture quantification.

Q: What types and volumes of samples are compatible with this moisture analyzer?

A: This device handles various oils and liquids with sample sizes ranging from 0.5 ml to 10 ml. Its design accommodates all standard volumetric and coulometric Karl Fischer glassware, making it highly versatile for many testing scenarios.

Q: When should auto, manual, or programmable modes be used during operation?

A: The auto mode is ideal for routine, repetitive testing, while manual mode allows hands-on adjustment for unique samples. Programmable mode suits laboratories needing customized testing sequences and automatic drift compensation for consistent results.

Q: Where can this test set be used effectively?

A: Thanks to its chemical-resistant ABS housing and stable operation within temperatures from 10C to 50C and up to 80% relative humidity (non-condensing), the test set is suitable for laboratories, industrial settings, and oil quality control stations.

Q: What benefits does the inbuilt thermal printer and RS232 output provide?

A: The built-in printer enables immediate, tamper-proof documentation of results. The RS232 interface allows seamless integration with computers or data management systems, supporting efficient laboratory record-keeping and reporting.

Q: How do I ensure optimal measurement accuracy and consistency?

A: For best results, ensure standard Karl Fischer glassware and fresh reagents are used. The magnetic stirrer should be properly adjusted for each sample type, and the auto drift compensation should be enabled to maintain reliable results even with environmental changes.
