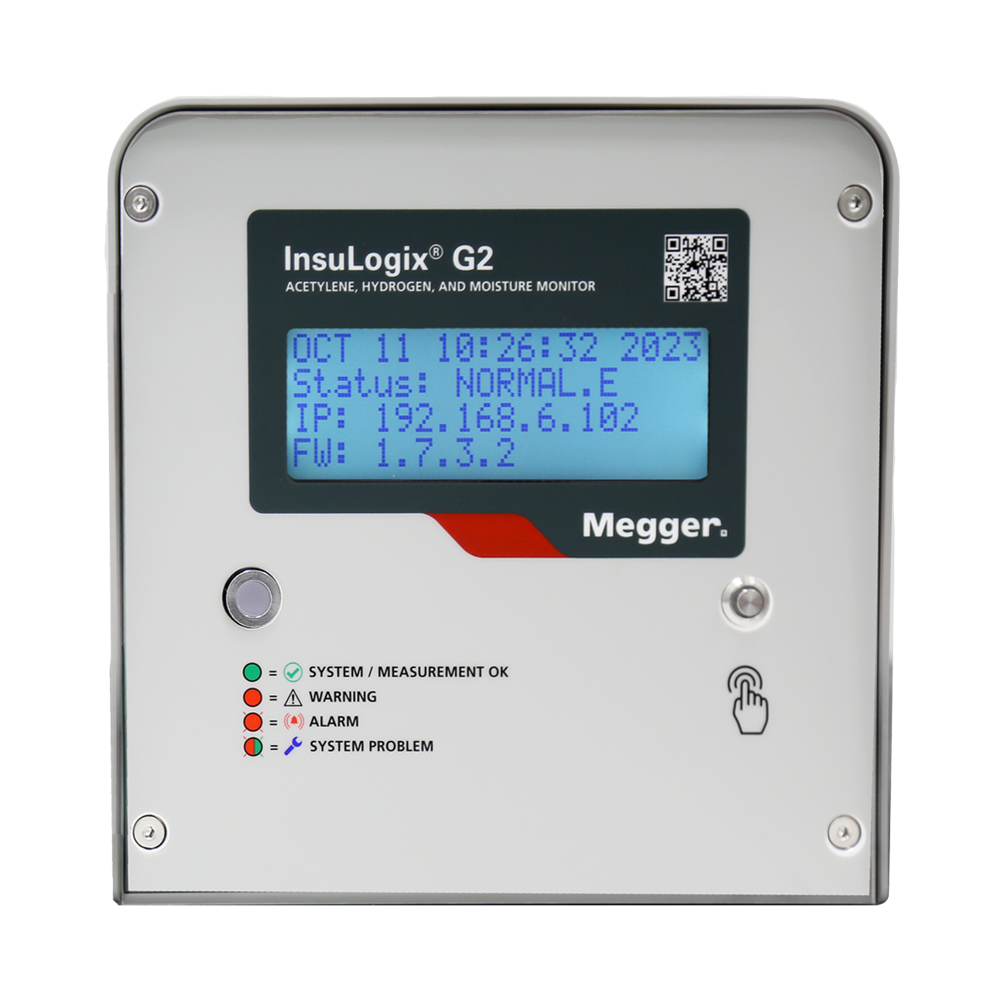

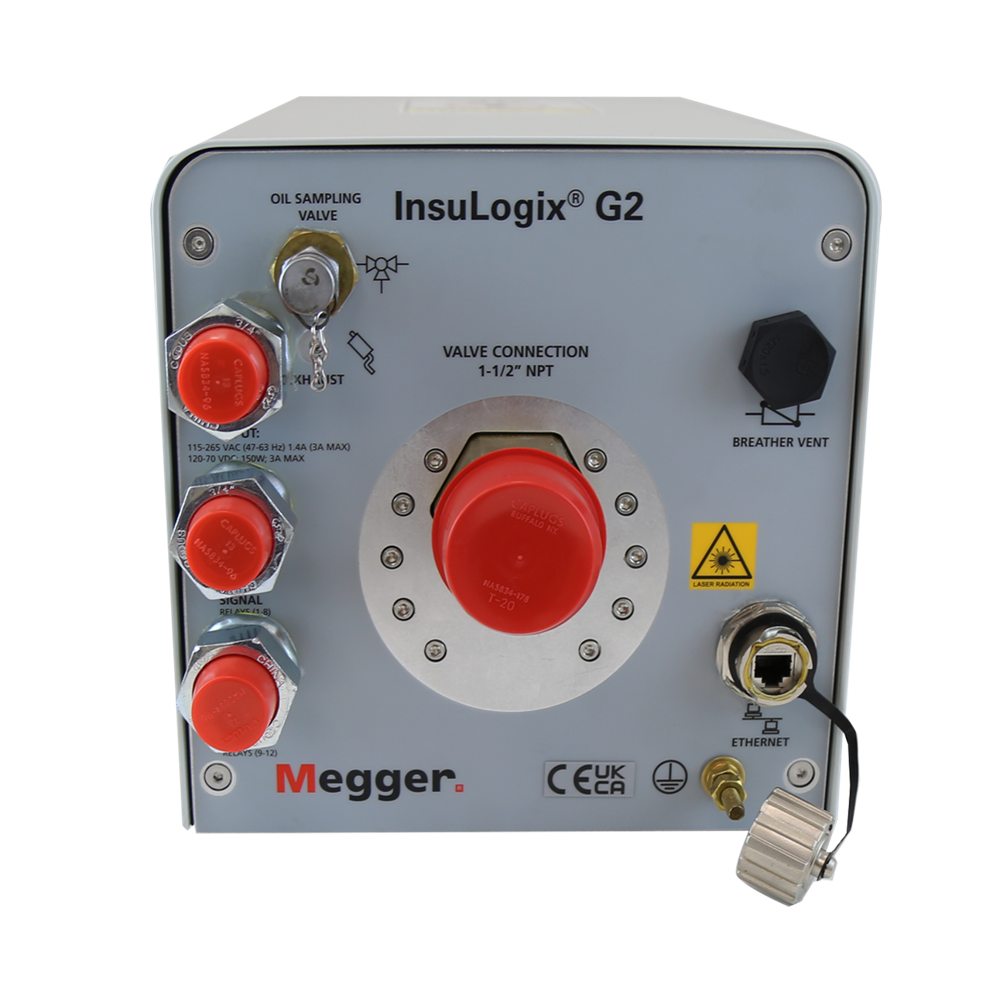

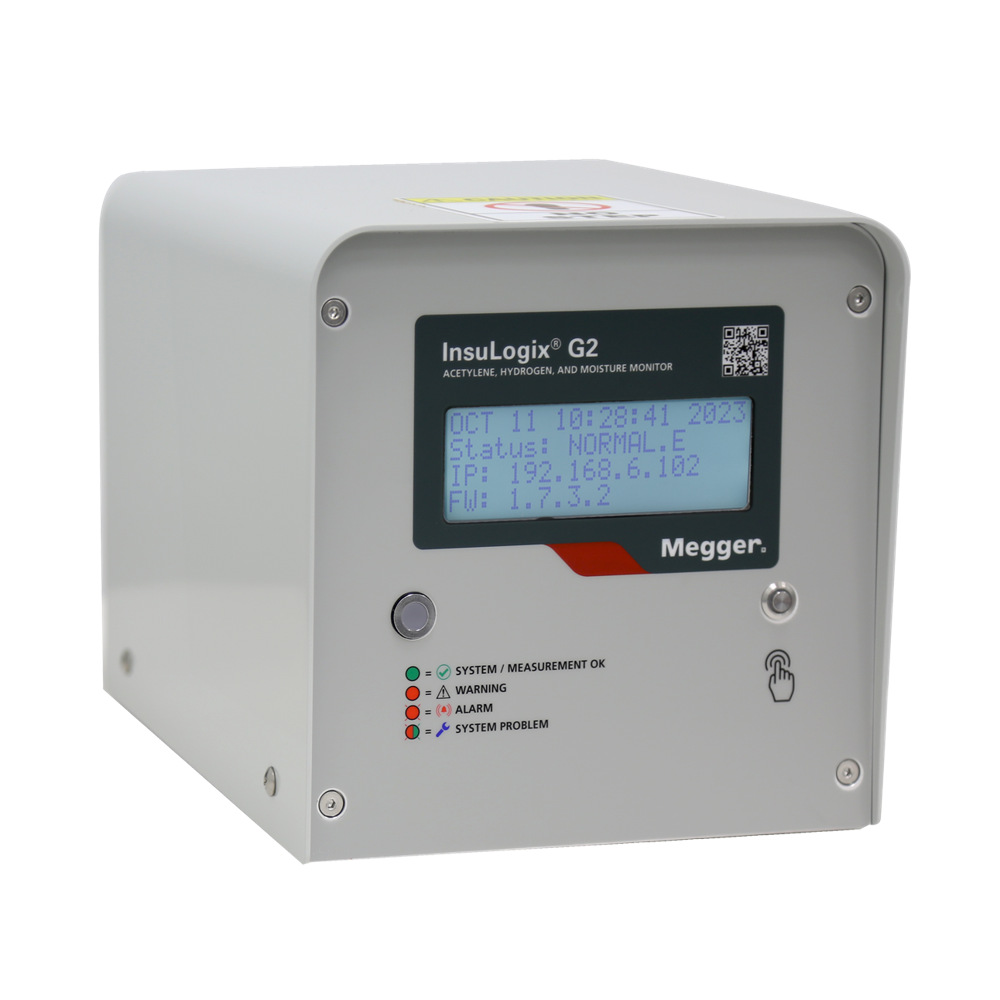

Transfomer DGA Monitor-InsuLogix G2

The InsuLogix G2 Transformer DGA Monitor is an advanced online dissolved gas analysis system designed for continuous monitoring of transformer insulation health. It provides early detection of incipient faults by accurately measuring key fault gases generated in transformer oil. With a compact, rugged design, InsuLogix G2 is suitable for both new installations and retrofitting on existing transformers. The system delivers real-time data to support condition-based maintenance and reduce the risk of unexpected transformer failures. Its reliable monitoring capability helps utilities and industries extend transformer life and improve network reliability.

Technical Specifications

• Product code: InsuLogix G2

• Monitoring type: Online dissolved gas analysis (DGA)

• Measured gases: Key fault gases for transformer condition assessment

• Measurement method: Oil-based gas extraction with sensor-based analysis

• Data output: Digital communication for SCADA / monitoring systems

• Alarm functions: Configurable thresholds with warning and trip alarms

• Installation: Online mounting suitable for power and distribution transformers

• Enclosure: Weatherproof, industrial-grade design

Key Features

• Continuous online monitoring of transformer dissolved gases

• Early fault detection for thermal and electrical defects

• Compact and low-maintenance design

• Real-time alarms and trending analysis

• Easy integration with substation monitoring systems

• Supports condition-based and predictive maintenance strategies

Applications

• Power transformers, Distribution transformers, Utility substations, Industrial power plants, Renewable energy substations, Critical electrical infrastructure
