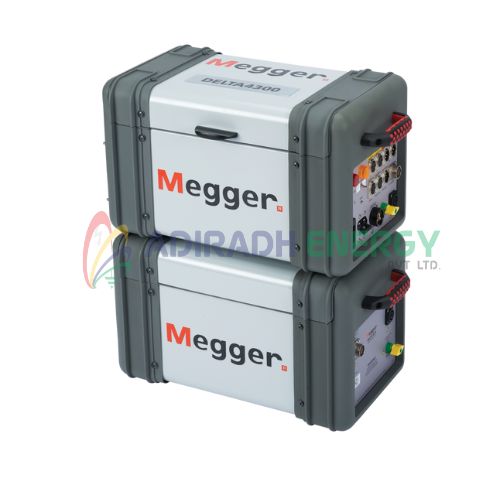

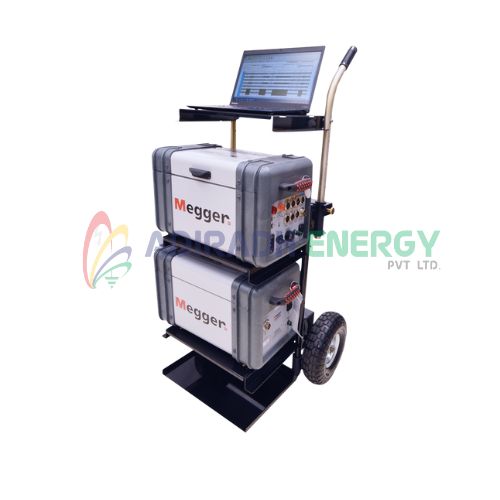

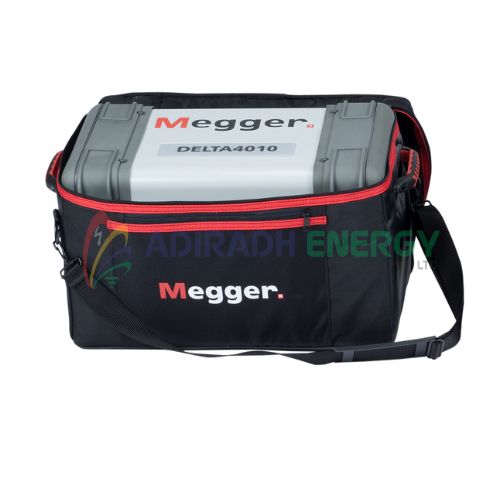

Capacitance and Tan delta kit -12KV Insulation Diagnostic system

Capacitance and Tan delta kit -12KV Insulation Diagnostic system Specification

Usage
Industrial

Size
Standard Sizes

Power Supply
Manual

Display Type
Analog Only

Capacitance and Tan delta kit -12KV Insulation Diagnostic system Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
30 Days

About Capacitance and Tan delta kit -12KV Insulation Diagnostic system

The 12kV Capacitance and Tan Delta Kit is a highly reliable and advanced insulation diagnostic system designed to assess the condition of high-voltage electrical equipment. It accurately measures capacitance, dissipation factor (tan ), and insulation quality, helping to detect aging, moisture ingress, and dielectric losses in transformers, cables, bushings, generators, and other HV assets.

Built for precision and portability, this system ensures accurate field and laboratory testing under various environmental conditions. Its 12kV test voltage capability allows comprehensive evaluation of medium and high-voltage insulation systems.

Key Features:

Test voltage up to 12kV AC RMS
Measures Capacitance, Tan Delta (Dissipation Factor), and Power Factor
Automatic and manual testing modes
High accuracy and stability even in harsh field conditions
User-friendly interface with digital display
Data storage and USB connectivity for test reports
Compact, lightweight, and portable design
Ideal for transformers, motors, generators, cables, and bushings

Applications:

Power transformers and reactors
High-voltage cables and bushings
Rotating machines (motors & generators)
Switchgears and insulators
Preventive and predictive maintenance testing

Comprehensive Insulation Diagnostics

Ensure the safety and efficiency of your electrical assets with the 12KV Capacitance and Tan Delta Kit. Its analog display provides straightforward readings for professionals conducting thorough maintenance and reliability checks on industrial equipment. The system is engineered for robust field use, making it ideal for regular testing protocols.

Reliable Performance for Industrial Applications

Crafted to meet industrial usage requirements, this kit is equipped with a manual power supply for uninterrupted operation even in challenging environments. Its standard size allows compatibility with a wide array of electrical assets, empowering maintenance teams with dependable insulation diagnostics.

FAQs of Capacitance and Tan delta kit -12KV Insulation Diagnostic system:

Q: How does the Capacitance and Tan Delta Kit - 12KV Insulation Diagnostic System operate?

A: This kit works by applying a high voltage (up to 12KV) to electrical insulation and measuring both the capacitance and tan delta (dissipation factor) values using its analog display. The manual power supply ensures direct user control during operation.

Q: What is the process for using this insulation diagnostic system in an industrial setting?

A: First, the equipment under test is connected to the kit. The operator manually powers the system and applies the test voltage. Readings are then taken from the analog display, indicating insulation quality and possible degradation.

Q: When should this kit be used for testing and diagnostics?

A: Ideally, the kit should be utilized during routine maintenance schedules, periodic inspections, or prior to commissioning new electrical equipment to ensure insulation integrity and early detection of potential faults.

Q: Where can I purchase the Capacitance and Tan Delta Kit in India?

A: You can source this insulation diagnostic system from authorized suppliers and traders nationwide. Many industrial equipment providers across India stock this product, ensuring accessibility for maintenance teams.

Q: What are the main benefits of using the 12KV Capacitance and Tan Delta Kit in an industrial environment?

A: The kit offers accurate diagnostics of insulation health, helping prevent equipment failures, ensuring workplace safety, and reducing downtime. Its analog display and manual operation make it reliable and easy to use, even in demanding industrial conditions.

Q: How is the analog-only display advantageous in field conditions?

A: The analog display provides direct, clear readings, minimizing the risk of misinterpretation and making it easier to use in environments where digital displays may be affected by electromagnetic interference or power fluctuations.

Q: What types of electrical equipment can be tested with this kit?

A: Standard-size design allows the kit to test a wide variety of high-voltage electrical assets, such as transformers, cables, and switchgears, making it versatile for most industrial diagnostics applications.
