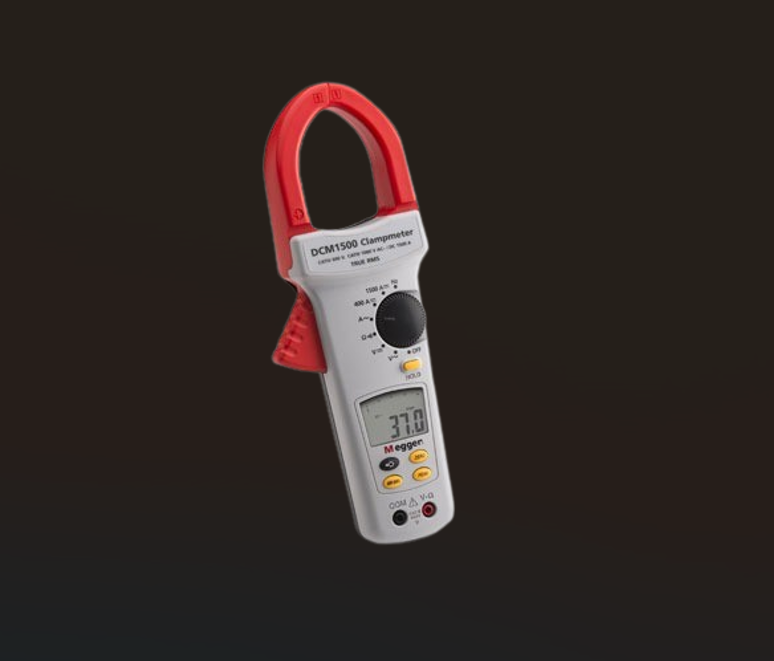

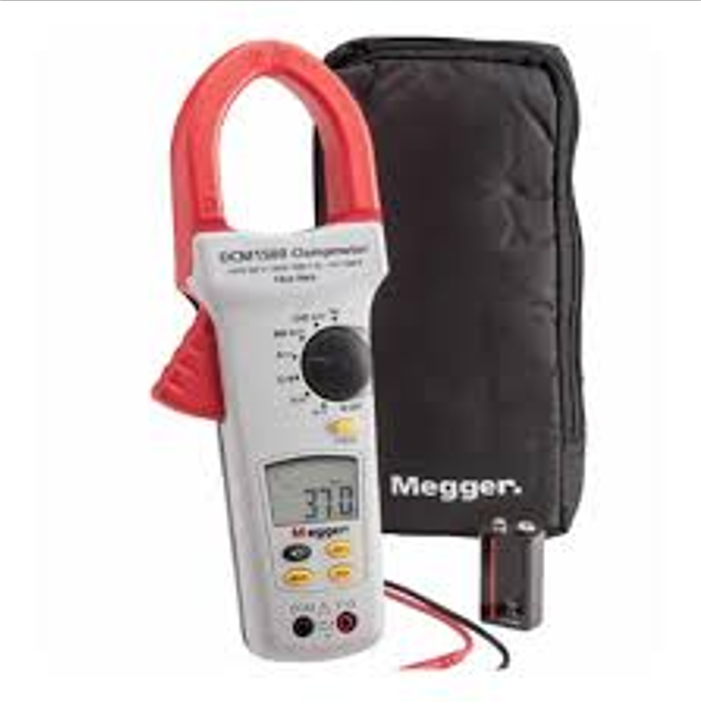

Clamp Meter DCM 1500

Clamp Meter DCM 1500 Specification

Pressure
Ambient

Usage & Applications
Industrial and Electrical Testing

Batteries Type
2 x 1.5V AA

Accuracy
1.5% of reading

Resistant Feature
Shock Resistant

Product Type
Clamp Meter

Material
ABS and Polycarbonate Blend

Measuring Voltage Range
0-1500V AC/DC

Operating Temperature
-10C to 50C

Frequency (MHz)
50 Hz / 60 Hz

Insulation Box
ABS Fused Plastic

Protection System
Overload and Short Circuit Protection

Size
Standard Handheld

Color
Yellow and Black

Dimension (L*W*H)
245 mm x 86 mm x 40 mm

Weight
450 gm

Relative Measurement
Yes

Backlight Display
Yes, for low-light operation

Diode Test
Yes

Data Hold Function
Yes

Continuity Buzzer
Yes

Low Battery Indication
Yes

Current Measurement Range
0-1500A AC/DC

Auto Power Off
Yes

Resistance Range
0-2000

Jaw Opening Size
45 mm

Safety Rating
CAT III 1000V

Display Type
Large LCD Digital Readout

Sample Rate
2 times/second

Storage Temperature
-20C to 60C

Clamp Meter DCM 1500 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About Clamp Meter DCM 1500

The DCM1500 True-RMS AC/DC Clamp Meter is a professional-grade instrument designed for high-current measurement in industrial and utility environments. It accurately measures AC and DC current up to 1500 A, making it ideal for power distribution systems, switchgear, generators, and large electrical loads. True-RMS technology ensures reliable results even on distorted waveforms found in modern electrical installations.

Key Features

AC/DC current measurement up to 1500 A
True-RMS for accurate readings on non-linear loads
AC/DC voltage, resistance, continuity, and frequency measurement
CAT IV 600 V safety rating
Large jaw opening for busbars and heavy conductors
Min/Max, Peak Hold, and Data Hold functions
Backlit digital display for field use

Advantages

Accurate diagnostics in harmonic-rich environments
Safe operation in high-energy electrical systems
Reduces troubleshooting time without circuit disconnection
Rugged and reliable for daily professional use

Precise and Versatile Measurement

The Clamp Meter DCM 1500 is engineered for precise current and voltage measurements across a broad range, accommodating up to 1500A and 1500V AC/DC. Its large jaws allow for effortless clamping around conductors, making it ideal for applications in industrial settings where rapid and accurate diagnostic is critical.

Enhanced User Experience and Durability

Featuring a large, backlit LCD display, the DCM 1500 ensures clear readings even in dim environments. The robust housing, crafted from ABS and polycarbonate blend, provides both durability and shock resistance, making it a reliable tool for field technicians and electricians alike.

Safety-Focused Design

Safety is paramount with this clamp meter. It boasts CAT III 1000V safety rating, along with overload and short circuit protection systems. The meter also indicates low battery status, ensuring users can operate with confidence and awareness, reducing risks during high-voltage measurements.

FAQ's of Clamp Meter DCM 1500:

Q: How do I use the Clamp Meter DCM 1500 for current measurement?

A: To measure current, open the 45 mm jaw and place it around a single conductor. Ensure no other wires are inside the jaws. Select the AC or DC current function on the meter, and read the value directly on the large backlit LCD display.

Q: What benefits does the backlight feature provide for operation?

A: The backlight enables clear visibility of readings even in low-light or poorly lit environments, such as electrical panels or industrial sites, enhancing safety and convenience during measurements.

Q: Where can the DCM 1500 clamp meter be used?

A: This clamp meter is suitable for industrial and electrical testing, particularly in settings that require robust and safe equipment. It is commonly used in factories, power plants, and for electrical maintenance in commercial or industrial buildings across India.

Q: What safety features are included in the DCM 1500 clamp meter?

A: Safety is ensured by the CAT III 1000V rating, overload protection, short circuit safeguards, and a shock-resistant ABS/polycarbonate enclosure. The meter also provides a low battery indicator and auto power-off function for added operational security.

Q: When should I use the data hold and relative measurement functions?

A: Use the data hold feature to freeze a displayed value when readings are needed in hard-to-view positions. The relative measurement function is beneficial when comparing measured values to a reference, aiding in diagnostics or verifying electrical characteristics.

Q: What is the resistance and voltage measurement capacity of this clamp meter?

A: The meter measures resistance from 0 to 2000 and AC/DC voltage from 0 to 1500V, making it suitable for a wide range of electrical troubleshooting, continuity checks, and diode testing.
