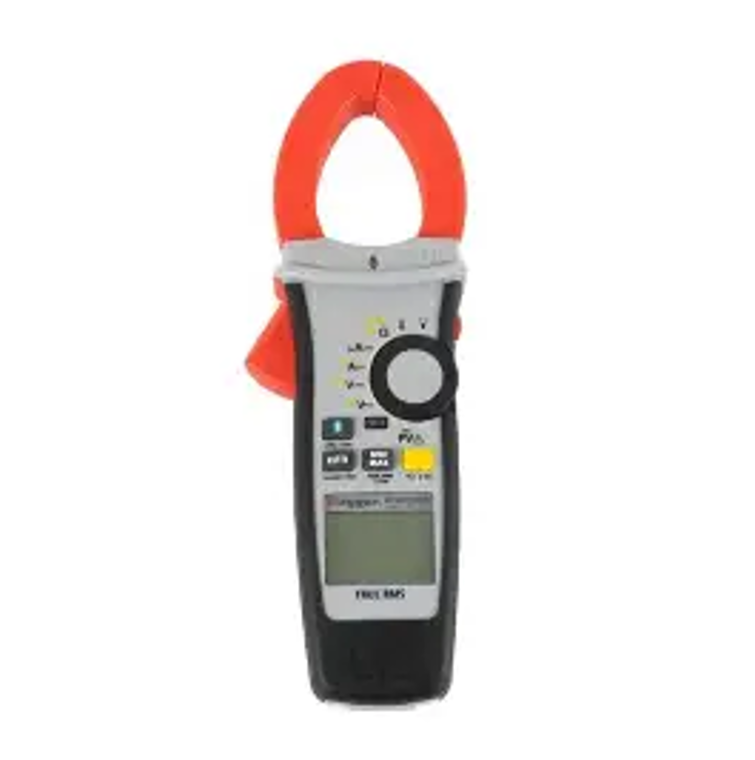

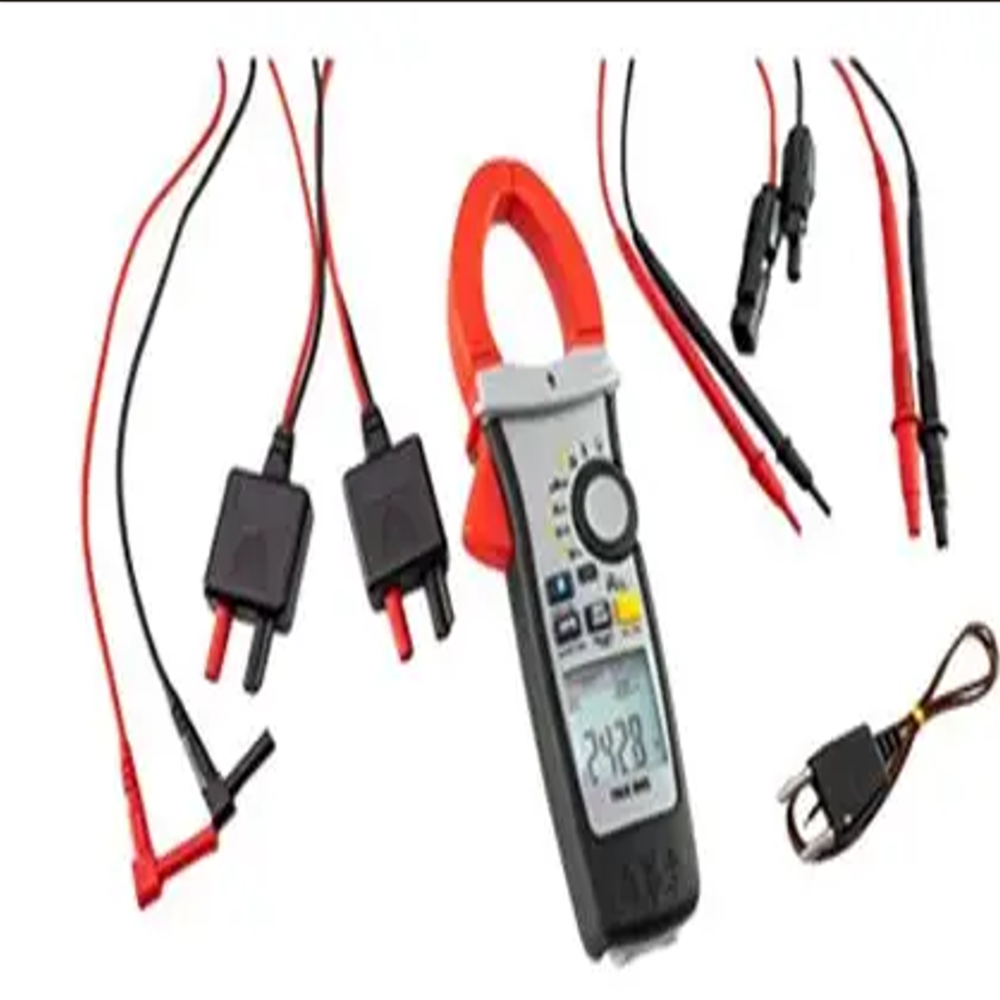

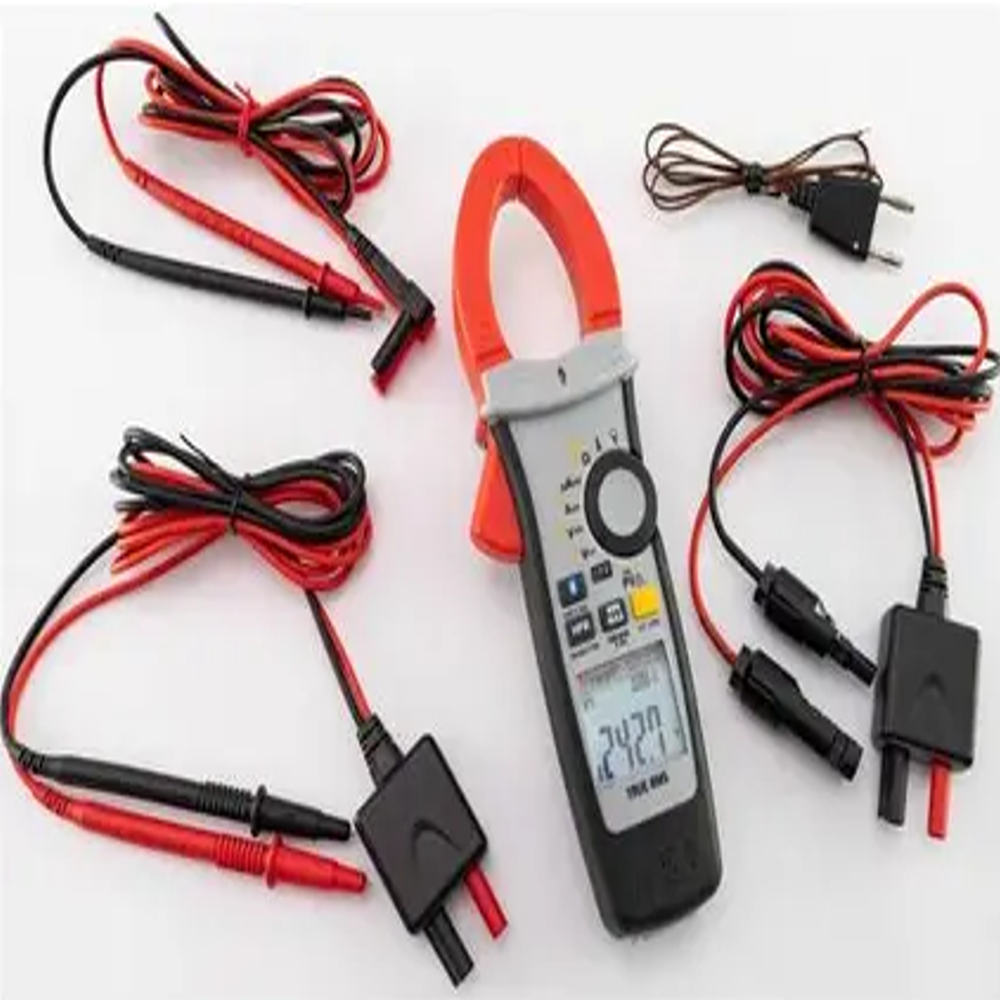

Clamp Meter DCM 1500 S

Clamp Meter DCM 1500 S Specification

Resistant Feature
Shock Resistant, Overload Protection

Accuracy
1.5%

Batteries Type
2 x 1.5V AAA

Usage & Applications
Measuring AC/DC current, voltage, resistance, continuity, frequency in electrical applications

Product Type
Clamp Meter DCM 1500 S

Material
ABS Plastic

Measuring Voltage Range
600V AC/DC

Operating Temperature
0C to 40C

Frequency (MHz)
45 Hz - 400 Hz

Insulation Box
Yes

Protection System
Double Insulation

Size
Standard

Color
Yellow & Black

Dimension (L*W*H)
270 mm x 106 mm x 45 mm

Weight
Approx. 500g

Data Hold Function
Yes

Resistance Range
0 - 2000

Drop Proof
Up to 1 Meter Drop

Continuity Buzzer
Yes

Safety Category
CAT III 600V

Sampling Rate
Approx. 2 times/sec

Display Type
Large Digital LCD

Over Range Indication
Yes

Measuring Current Range
0 - 1500A AC

Relative Humidity
85% RH

Auto Power Off
Yes

Jaw Opening Size
52 mm

Clamp Meter DCM 1500 S Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About Clamp Meter DCM 1500 S

The DCM 1500 S is a professional True-RMS AC/DC clamp meter designed for high-current industrial applications. It measures AC and DC current up to 1500 A with high accuracy, making it suitable for power distribution panels, switchgear, generators, UPS systems, and large motors. True-RMS measurement ensures reliable results on distorted waveforms commonly found in modern electrical installations. The instrument is built to high safety standards and is intended for daily use by electrical engineers and maintenance professionals.

Specifications

Max AC Current: 1500 A
Current Type: AC / DC
Measurement Type: True-RMS
Max DC Voltage: 1000 V
Max AC Voltage: 750 V
Jaw Opening Size: Approx. 52 mm
Display: 6000-count backlit LCD
Safety Rating: CAT IV 600 V
Functions:
AC/DC current and voltage, resistance, continuity, frequency, Min/Max, Peak Hold, Data Hold
Build: Rugged industrial housing suitable for field use
Brand: Megger

Advantages

Enables safe measurement of very high currents without circuit disconnection
True-RMS technology ensures accurate readings on non-linear and harmonic-rich loads
High CAT IV safety rating makes it suitable for utility and industrial environments
Large jaw opening allows easy clamping on busbars and heavy conductors
Multiple measurement functions reduce the need for additional test instruments
Reliable and durable design for daily professional maintenance and troubleshooting work

Efficient and Versatile Measurement

Designed to excel in demanding environments, the DCM 1500 S clamp meter handles AC/DC current readings up to 1500A and voltage up to 600V with 1.5% accuracy. Its large digital LCD screen and intuitive functions, such as data hold and continuity buzzer, make it user-friendly for both professionals and novices working with electrical systems.

Rugged and Reliable for Field Use

With a shock-resistant ABS plastic construction, double insulation, and drop proof capability up to 1 meter, the clamp meter is engineered for tough, on-site work. Its CAT III 600V safety category and overload protection ensure secure operation under challenging conditions, enhancing safety and reliability for critical electrical measurements.

Advanced Features for Professional Results

Packed with features such as auto power off for battery conservation, over-range indication, and a wide 52 mm jaw opening, the DCM 1500 S is built for productivity. The inclusion of an insulation box, protection system, and high sampling rate (approx. 2 times/sec) allow users to work efficiently while maintaining accuracy in fluctuating environments.

FAQ's of Clamp Meter DCM 1500 S:

Q: How do I use the data hold function on the DCM 1500 S clamp meter?

A: To use the data hold function, simply press the 'Hold' button during measurement. This will freeze the current value displayed on the large digital LCD, allowing you to record or note the reading conveniently without losing information when moving the meter or cables.

Q: What types of electrical measurements can the DCM 1500 S perform?

A: This clamp meter can measure AC/DC current (0-1500A), voltage (up to 600V), resistance (0-2000), continuity (with buzzer), and frequency (45 Hz to 400 Hz). These capabilities make it suitable for a wide range of electrical diagnostics and troubleshooting.

Q: When should I use the clamp feature instead of test leads?

A: Use the clamp feature to safely measure current flowing through a conductor without direct contact, minimizing risks and eliminating circuit interruption. Test leads are best for voltage, resistance, or continuity measurements where direct probe contact is necessary.

Q: Where is the DCM 1500 S ideal for usage?

A: The DCM 1500 S is perfect for use in industrial facilities, commercial sites, electrical workshops, maintenance operations, and field service. Its CAT III 600V rating and rugged build allow for safe operation in various demanding environments across India.

Q: What are the benefits of the double insulation and shock-resistant features?

A: Double insulation and shock resistance protect both the user and the meter from electrical hazards and accidental drops. These features enhance safety, extend the device's lifespan, and make it reliable for heavy-duty field work.

Q: How does the auto power off function contribute to operation?

A: The auto power off feature helps conserve battery life by automatically shutting down the meter after a period of inactivity, ensuring the device is ready to use when needed and reducing the frequency of battery replacements.
