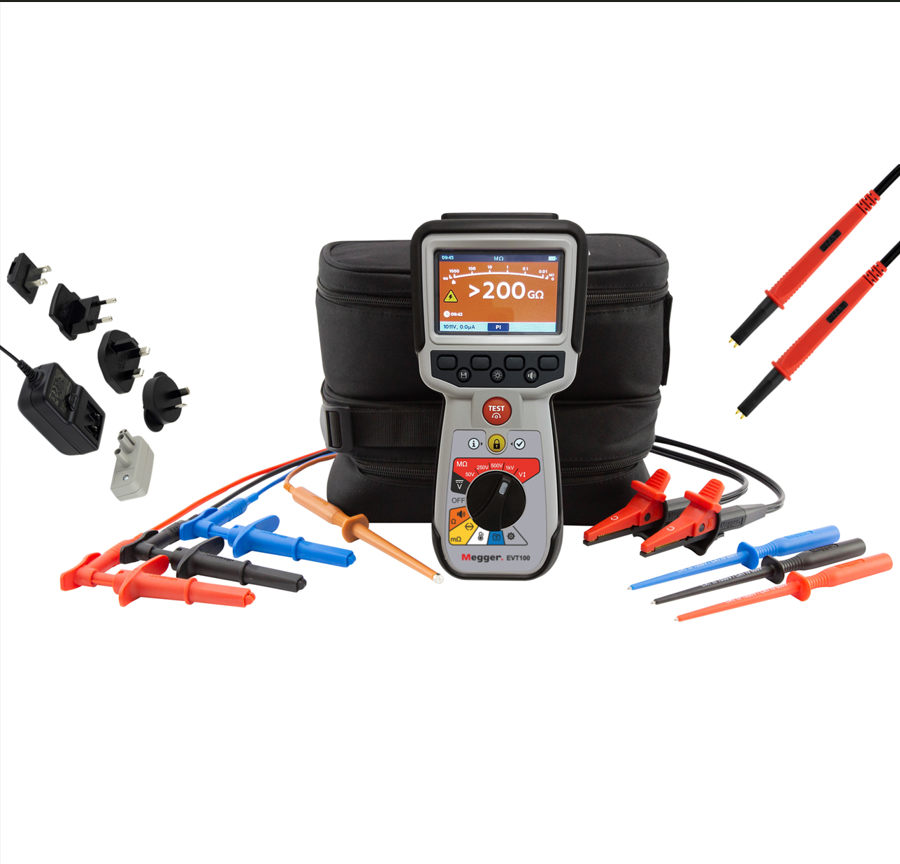

EVT100 Electric vehicle tester

EVT100 Electric vehicle tester Specification

Pressure
Up to 300V withstand capability (measuring internal insulation)

Accuracy
1.5%

Usage & Applications
Testing and Maintenance of Electric Vehicles

Resistant Feature
Shockproof, Fire Resistant, Water Resistant

Batteries Type
Rechargeable Li-ion

Product Type
Electric Vehicle Tester

Material
Industrial Grade ABS Body

Measuring Voltage Range
0-1000V

Operating Temperature
-20C to +60C

Frequency (MHz)
50/60Hz

Insulation Box
Yes, provided

Protection System
Over-voltage, Over-current, Short circuit protection

Size
Standard

Color
Black & Blue

Dimension (L*W*H)
305 mm x 225 mm x 155 mm

Weight
3kg

Auto Power Off
Yes, with Sleep Mode

Input Supply
AC 220V 10%, 50/60Hz

Accessories Included
Test Leads, Charger, User Manual

Safety Category
CAT III 1000V / CAT IV 600V

Indication
LED Status Indicators

Display Type
Digital LCD Display

Test Functions
Voltage Measurement, Insulation Test, Leakage Current Test, Resistance Measurement

Data Storage
Yes, up to 1000 records

EVT100 Electric vehicle tester Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About EVT100 Electric vehicle tester

The EVT100 has been designed to meet the needs of those who manufacture or maintain electric vehicles (EVs) and to aid compliance with the UNECE R100 regulations. A single compact handheld unit provides all the tests that these users will routinely need, including insulation resistance testing up to 1 kV, low-resistance bond testing, continuity and diode testing, and DC voltage measurement with polarity check.

Despite its versatility, the EVT100 is easy and safe to use, even for those with limited experience in electrical testing. It has a straightforward user interface and incorporates safety features that inhibit testing if it is not connected correctly or if an attempt is made to use it outside its operational range. Users also have access to detailed application guides and Meggers renowned global support service.

To ensure reliable results, the EVT100 offers the option of two-, three- and four-wire low resistance testing, which can be used, for example, to verify the bonding of metal parts. The insulation resistance testing function offers automatic temperature compensation, and a guard terminal is provided to eliminate the effects of surface leakage, which could otherwise lead to inaccurate results.

To aid reporting, the EVT100 has internal storage for 256 test results. These can be easily downloaded via a standard USB memory stick and transferred to a computer for incorporation into reports and certificates. This not only saves time but also eliminates the risk of errors.

The EVT100 features rugged construction, ensuring a long, reliable operating life even in tough workshop conditions. It provides a comprehensive, reliable and easy-to-use solution for all EV and EV component testing requirements.

Accurate Multifunctional Testing

The EVT100 offers several test functions, including voltage measurement (up to 1000V), insulation testing, leakage current, and resistance measurement. With an accuracy of 1.5%, it delivers dependable results for electric vehicle maintenance. The inclusion of LED indicators and a clear digital LCD display ensures users can easily monitor test statuses and results.

Rugged and Reliable Design

Built for the demands of industrial environments, the EVT100 features an industrial-grade ABS body that resists shocks, fire, and water. Enhanced protection systems ensure safety during high-voltage testing, and the robust insulation box adds another layer of security, making this tester ideal for use in varied conditions.

Comprehensive Data Storage and User Friendly

The device supports storage of up to 1,000 test records, allowing for efficient tracking and analysis. Its intuitive interface, auto power-off with sleep mode, and rechargeable Li-ion battery contribute to uninterrupted and hassle-free operations. The package comes complete with essential accessories, making it ready to use out of the box.

FAQ's of EVT100 Electric vehicle tester:

Q: How do I use the EVT100 Electric Vehicle Tester to measure voltage or insulation?

A: Simply connect the provided test leads to the appropriate terminals on your electric vehicle. Select the desired test function using the menu on the digital LCD display. Follow the step-by-step instructions in the user manual for accurate voltage or insulation measurements. Results are shown clearly on the screen, and LED status indicators provide additional guidance.

Q: What kind of records can the EVT100 store, and how do I access them?

A: The EVT100 can save up to 1,000 test records, including voltages, insulation, current leakages, and resistance values. You can scroll through saved data directly on the digital LCD display using the navigation buttons, making it simple to review or transfer data as needed.

Q: When is it necessary to use the insulation test function on this tester?

A: The insulation test function is especially important after repairs or maintenance on electric vehicles to ensure that all high-voltage components are properly insulated and safe to operate. It helps identify potential leakages or breakdowns in insulation that could pose safety hazards.

Q: Where is the EVT100 most effectively used?

A: This tester is ideally used in automotive workshops, service centers, and manufacturing settings focused on electric vehicles. Its rugged design and safety ratings (CAT III 1000V / CAT IV 600V) make it suitable for both fieldwork and controlled indoor environments.

Q: What steps are involved in the process of conducting a leakage current or resistance test?

A: To test for leakage current or resistance, select the corresponding function on the device, connect the test leads as directed, and initiate the measurement. The digital LCD will display real-time values, while status LEDs guide you through completion. Detailed process steps are available in the included user manual.

Q: What are the benefits of using the EVT100 for electric vehicle maintenance?

A: The EVT100 offers precise measurements with an accuracy of 1.5%, robust safety features, and comprehensive data storage. It streamlines the diagnostic process, helps prevent electrical failures, ensures user safety, and enhances maintenance reliability for electric vehicles.

Q: How does the tester's protection system contribute to safe operation?

A: The EVT100 is equipped with protection against over-voltage, over-current, and short circuits. These features not only protect the device from accidental damage but also enhance user safety when testing high-voltage systems commonly found in electric vehicles.
