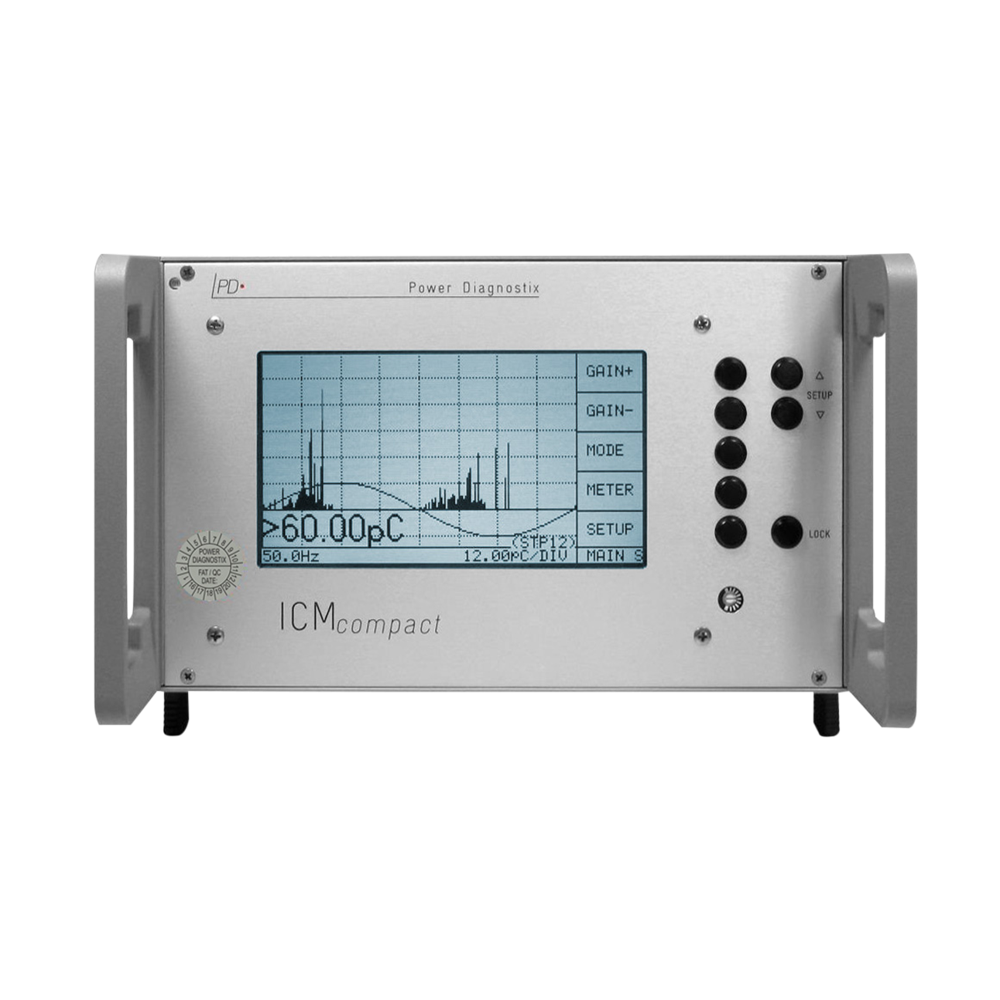

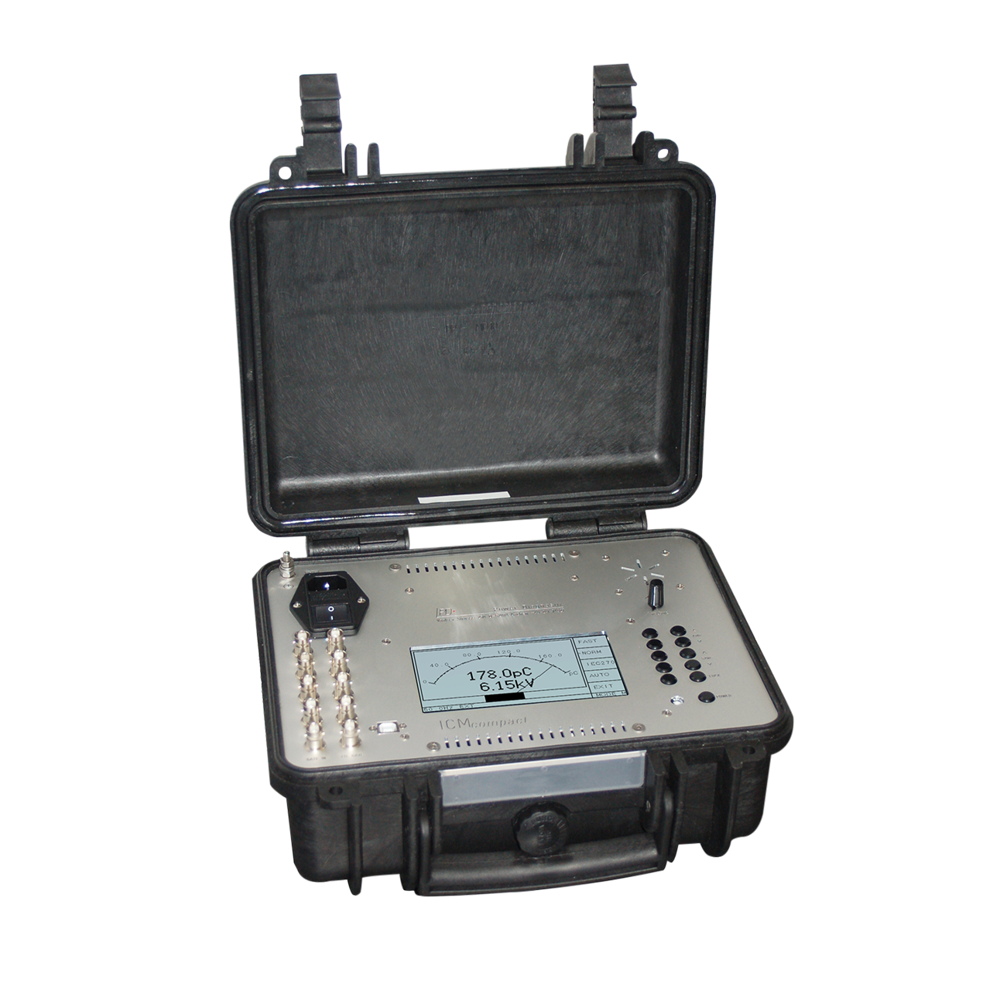

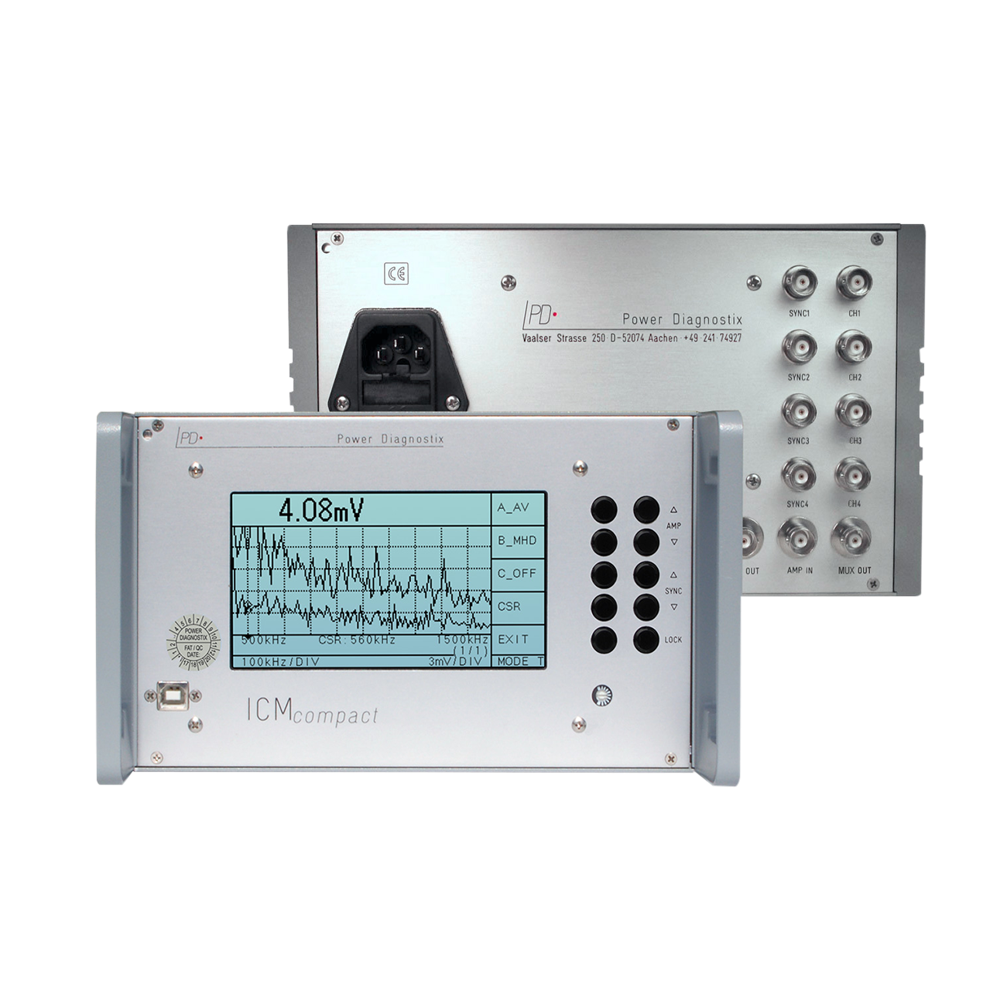

Megger ICMcompact Standalone Partial Discharge Detector

Megger ICMcompact Standalone Partial Discharge Detector Specification

Resistant Feature
Shock and vibration resistant

Accuracy
High sensitivity, <2 pC resolution

Usage & Applications
Partial discharge measurement in switchgear, transformers, cables, capacitors, and rotating machines

Batteries Type
Mains powered (no batteries required)

Product Type
Offline partial discharge testing

Material
Metal and high-grade plastic housing

Measuring Voltage Range
Up to 400 kV AC

Operating Temperature
-10C to +55C

Frequency (MHz)
0.1 - 100 MHz

Insulation Box
No

Protection System
Integrated warning and alarm system

Size
Compact

Color
Grey

Dimension (L*W*H)
300 mm x 160 mm x 260 mm

Weight
Approx. 6.5 kg

Display Type
LCD with PD meter and PRPD patterns

PC Interface
RS232/USB

Language Support
English, German, others

Mounting Type
Portable/benchtop

Acoustic Detection
Yes, with external sensor

Pulse Repetition Rate
Up to 1000 pulses per second

Display
6.4" color graphic LCD

Data Storage
Internal and external storage via USB

Input impedance
50

Calibration
Internal calibration unit included

Compliance
IEC 60270

Environmental Protection
IP20 (front panel), IP40 (housing)

Alarm Outputs
Configurable relay contacts

Megger ICMcompact Standalone Partial Discharge Detector Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Megger ICMcompact Standalone Partial Discharge Detector

Adiradh Offers - Megger ICMcompact Standalone Partial Discharge Detector is a compact and reliable solution designed for accurate partial discharge testing of medium and high voltage electrical assets. It is widely used for insulation condition assessment during factory acceptance tests, commissioning, maintenance, and field diagnostics. The device offers precise PD measurement, clear phase-resolved PD patterns, and simple push-button operation, making it ideal for both laboratory and on-site applications. Moreover, its portable design and advanced noise suppression ensure dependable results even in challenging environments. Therefore, the ICMcompact is a trusted choice for utilities, manufacturers, and service engineers seeking efficient and standards-compliant partial discharge testing.

Specifications:

Monitoring Type: Offline partial discharge testing
Measurement Standard: IEC 60270 compliant
Channel: Single channel
PD Sensor Type: External coupling capacitors, HFCT, quadrupoles
Display: Built-in LCD with PD meter and PRPD patterns
Measurement Modes: PD magnitude, PRPD, scope view
Noise Suppression: Gating and disturbance separation
Interface: USB / LAN for PC connection
Power Supply: AC mains and battery operation
Portability: Compact, standalone design
Operating Environment: Laboratory and field use
Software Support: PC software for visualization and analysis

Applications:

Transformer partial discharge testing
Cable and cable accessory testing
Switchgear and GIS diagnostics
Factory acceptance and commissioning tests
Preventive maintenance and condition monitoring

Advanced Display and User Interface

View and analyze data with ease using the 6.4-inch color graphic LCD, which displays partial discharge patterns, pulse data, and PRPD charts. The interface is intuitive, supporting multiple languages including English and German, making operation straightforward for a diverse range of users.

Robust Compliance and Data Management

The ICMcompact meets IEC 60270 standards for partial discharge measurements, supporting reliability and regulatory compliance. Data can be stored internally or externally with USB devices, and users benefit from seamless PC connectivity via RS232 or USB for efficient data transfer and reporting.

Comprehensive Detection and Safety Features

Equipped with acoustic detection using an external sensor and an integrated warning and alarm system with configurable relay contacts, the ICMcompact ensures early detection and response to partial discharge risks. Internal calibration and high sensitivity (<2 pC resolution) guarantee accurate, dependable results even in challenging environments.

FAQ's of Megger ICMcompact Standalone Partial Discharge Detector:

Q: How does the Megger ICMcompact detect partial discharges in high-voltage equipment?

A: The ICMcompact uses high-sensitivity electrical and acoustic detection to identify partial discharges in switchgear, transformers, cables, and other electrical assets. Its internal calibration and wide frequency range (0.1-100 MHz) enable precise and reliable measurement of discharge pulses.

Q: What types of data storage are supported by the ICMcompact?

A: The device provides both internal storage and external storage options via USB, ensuring that measurement data and diagnostic reports can be easily saved and transferred for further analysis and documentation.

Q: Where can the ICMcompact be used effectively?

A: It is ideal for use in substations, manufacturing sites, and maintenance workshops for applications involving switchgear, transformers, power cables, capacitors, and rotating electrical machines, due to its portable design and robust build.

Q: When should I utilize the acoustic detection feature with the external sensor?

A: Acoustic detection is especially useful when identifying the physical location of partial discharge sources within complex equipment, or when operating in noisy electrical environments where electrical detection alone may be insufficient.

Q: What are the benefits of the built-in protection and alarm system?

A: The integrated warning and alarm system, including configurable relay contacts, provides immediate notification of discharge events, enhancing operational safety and preventing escalation of insulation faults.

Q: How user-friendly is the interface for multilingual teams?

A: The ICMcompact's display and menu system support multiple languages, including English and German, making it accessible and user-friendly for international teams.

Q: What makes the ICMcompact suitable for demanding industrial environments?

A: Its compact, shock- and vibration-resistant metal and high-grade plastic housing, along with compliance to IP20/IP40 standards, ensure durability and reliable performance in rigorous operational settings.
