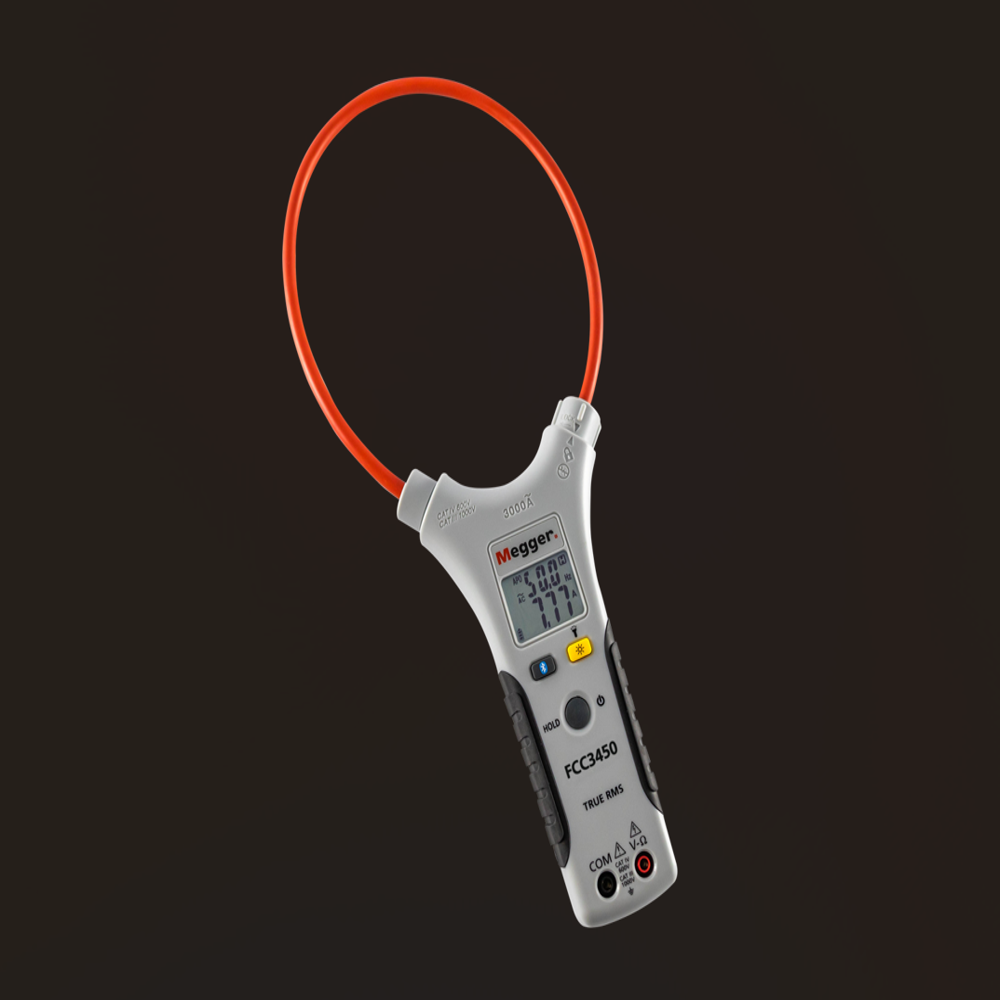

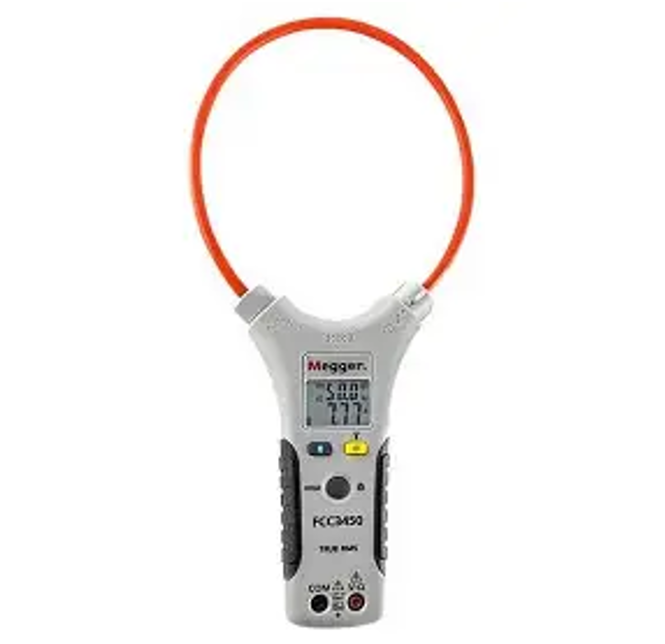

Flexible Clamp Meter FCC3450 3000 A

Flexible Clamp Meter FCC3450 3000 A Specification

Accuracy
1.5% + 5 digits

Resistant Feature
Shock-resistant, dust-resistant

Usage & Applications
Electrical current measurement in cramped or hard-to-reach places

Batteries Type
2 x 1.5V AAA batteries

Product Type
Flexible Clamp Meter

Material
ABS plastic, electronic components

Measuring Voltage Range
600 V AC / DC

Operating Temperature
0C to 40C

Frequency (MHz)
50/60 Hz

Insulation Box
Yes

Protection System
Double insulation

Size
Standard

Color
Gray/Blue

Dimension (L*W*H)
275 x 130 x 25 mm

Weight
Approx. 180 g

Data Hold Function
Yes

Jaw Opening Size
Flexible coil (up to 180 mm diameter conductor)

Display Count
6000 counts

Over Range Indication
Yes

Display Type
Digital LCD

Relative Humidity
<80%

Auto Power Off
Yes

Model Number
FCC3450

Storage Temperature
-10C to 50C

Maximum AC Current Measurement
3000 A

Safety Rating
CAT IV 600V

Sampling Rate
3 times/sec

Response Time
< 1 second

Flexible Clamp Meter FCC3450 3000 A Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

About Flexible Clamp Meter FCC3450 3000 A

The FCC3450 3000 A flexible clamp meter is a Bluetooth enabled flexible current clamp, designed for AC/DC voltage, frequency, continuity, and resistance measurements, as well as AC current up to 3000 A.

It measures True RMS voltage up to 1000 V AC/DC and comes with built- in display with 10 000 count resolution. As well as resistance, continuity, frequency, and capacitance for quick verifications,. iIt meets CAT IV 600 V and CAT III 1000 V AC/DC safety ratings.

Due to the length and flexibility of the coil, measurements can be made around large conductors, or those conductors inaccessible to a fixed-head clamp. Rogowski coils offer flexibility as they do not rely on a rigid iron core, making them easy to get around larger conductors and easy to get into tight confined spaces, this flexibility is a key advantage of the FCC3450.

Using Bluetooth, the FCC3450 can be paired with the free Megger Link app, giving you the ability to collect remote live readings or record measurements directly to your smart device for storage or report creation. The app is compatible with iOS and Android and allows you to capture trending and graphing data to share with your team or for faster diagnosis and detection of faults.

Exceptional Flexibility for Hard-to-Reach Places

Thanks to its flexible coil that fits around conductors up to 180 mm in diameter, the FCC3450 makes electrical current measurements possible even in confined or complex setups. This is invaluable for professionals dealing with dense wiring systems or irregular installations in commercial or industrial environments.

Advanced Safety and Reliability Features

The FCC3450 clamp meter prioritizes user protection with a CAT IV 600V safety rating and double insulation. Its shock-resistant and dust-resistant ABS plastic construction ensures durability. The insulation box adds another layer of safety, making the device suitable for challenging conditions.

Precise Digital Measurements, Fast Response

The digital LCD displays results clearly up to 6000 counts, while the meter offers a fast response time (<1 second) and high sampling rate (3 times/sec). An accuracy of 1.5% + 5 digits ensures reliable readings, supported by helpful features like over-range indication, data hold, and auto power-off.

FAQ's of Flexible Clamp Meter FCC3450 3000 A:

Q: How does the FCC3450 Flexible Clamp Meter measure high AC currents in tight spaces?

A: The FCC3450 uses a flexible coil sensor that wraps around conductors up to 180 mm in diameter, allowing it to measure AC currents up to 3000 A even in cramped or hard-to-reach areas where traditional clamp meters may not fit.

Q: What safety features are integrated into the FCC3450 clamp meter?

A: The device is equipped with double insulation, a robust ABS plastic enclosure, and an insulation box. It holds a CAT IV 600V safety rating, ensuring reliable protection against electrical hazards during measurements.

Q: When is it recommended to use the Data Hold function on this meter?

A: The Data Hold function is best utilized when you need to capture and review current measurement readings without losing them, particularly in situations where immediate note-taking is challenging or repeated measurements are necessary.

Q: Where can the FCC3450 be applied for optimal performance?

A: This meter is ideal for electrical current measurements in commercial, industrial, or field environments, especially where access is restricted, such as densely packed panels, busbars, and areas with oversized or oddly shaped conductors.

Q: What process should be followed to ensure accurate readings with the FCC3450 clamp meter?

A: Wrap the flexible coil securely and centrally around the conductor, ensuring it is not twisted. Select the appropriate measurement mode on the digital display, and use the data hold as needed. Avoid exceeding specified voltage and current ranges, and operate within the recommended temperature and humidity limits.

Q: What benefits does the FCC3450 offer compared to conventional clamp meters?

A: The flexible jaw enables measurements around larger and irregularly-shaped conductors, while its lightweight, shock-resistant design, fast response, and intuitive LCD display improve efficiency and mobility for professional users.
