Online Partial Discharge Monitoring system on GIS

Online Partial Discharge Monitoring system on GIS Specification

Accuracy
3% on discharge magnitude

Batteries Type
External power supply, backup Li-ion battery

Resistant Feature
Moisture and dust resistant, corrosion resistant

Usage & Applications
Continuous GIS health monitoring, predictive maintenance, insulation fault detection

Pressure
Suitable up to 7 bar (SF6 insulation)

Product Type
Online Partial Discharge Monitoring System on GIS

Material
Aluminum alloy and engineered plastics

Measuring Voltage Range
Up to 400 kV

Operating Temperature
-20C to +60C

Frequency (MHz)
0.1-100 MHz (UHF Range)

Insulation Box
Provided, IP65 enclosure

Protection System
Integrated surge and EMC protection

Size
Standard, customizable based on GIS panel size

Color
Grey/Silver

Dimension (L*W*H)
450 mm x 300 mm x 210 mm

Weight
7.5 kg

Display Type
7-inch LCD touch panel

Analysis Software
Advanced PD pattern recognition and reporting

Data Storage
32 GB internal memory

Sensor Type
UHF, TEV, and Acoustic Sensors

Installation
Clamp-on/bolt-on options for GIS

Detection Sensitivity
<2 pC minimum detectable PD

Alarm System
Configurable visual and audible alarms

Sampling Rate
100 MS/s

Power Input
AC 100-240V, 50/60Hz

Environmental Standards
RoHS, CE certified

Compliance
IEC 60270, IEC 62478

Communications Interface
Ethernet, RS485, Wireless (optional)

Event Logging
Time-stamped multi-event recording

Remote Monitoring
Supported with web/mobile app

Online Partial Discharge Monitoring system on GIS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Online Partial Discharge Monitoring system on GIS

GISmonitor builds on more than 20 years of experience in online PD monitoring on rotating machines, transformers, cables, and especially GIS systems. It combines proven technology of the ICMmonitor with new processor technology and embedded hardware capabilities. The hardware core of the system has been optimized for parallel, real-time PD acquisition on multiple channels. Any UHF signal can be detected and digitized within microseconds. A separation of PD events from external disturbances or internal switching pulses is calculated in real-time and, therefore, an effective PD and alarm detection is given.

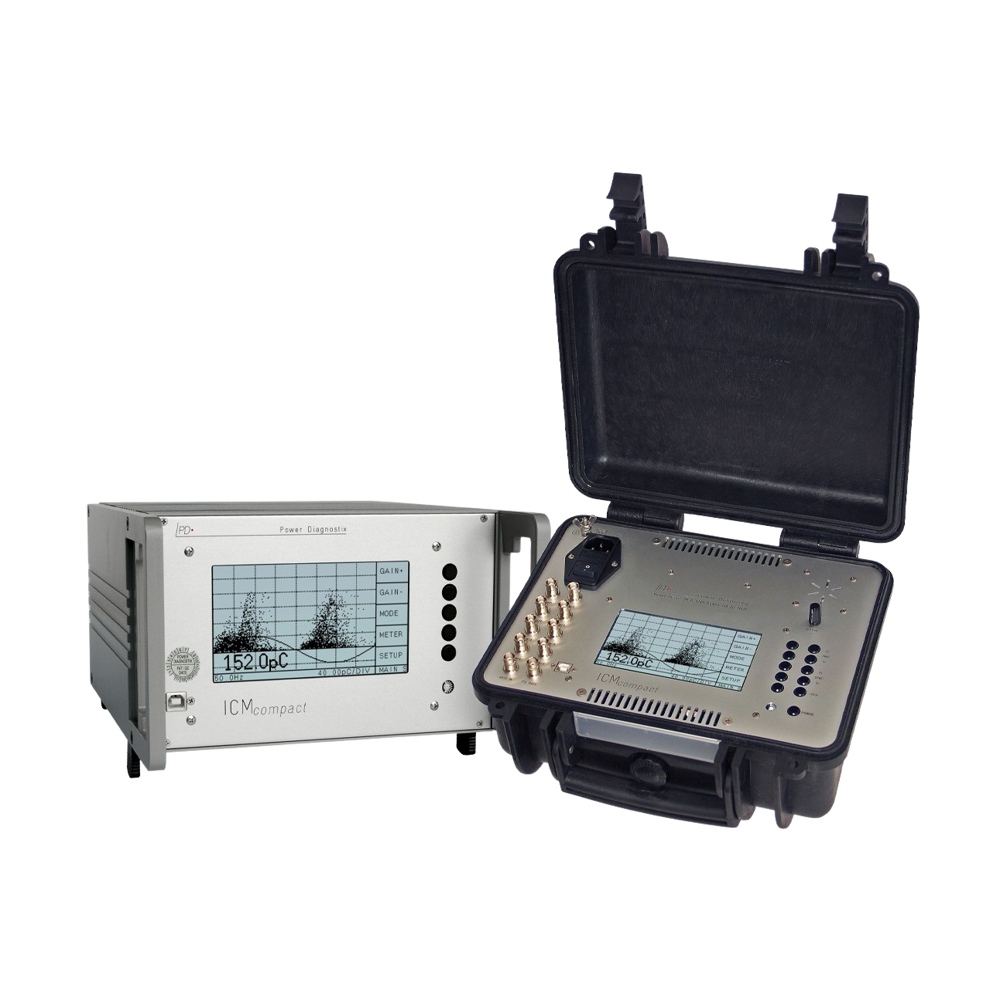

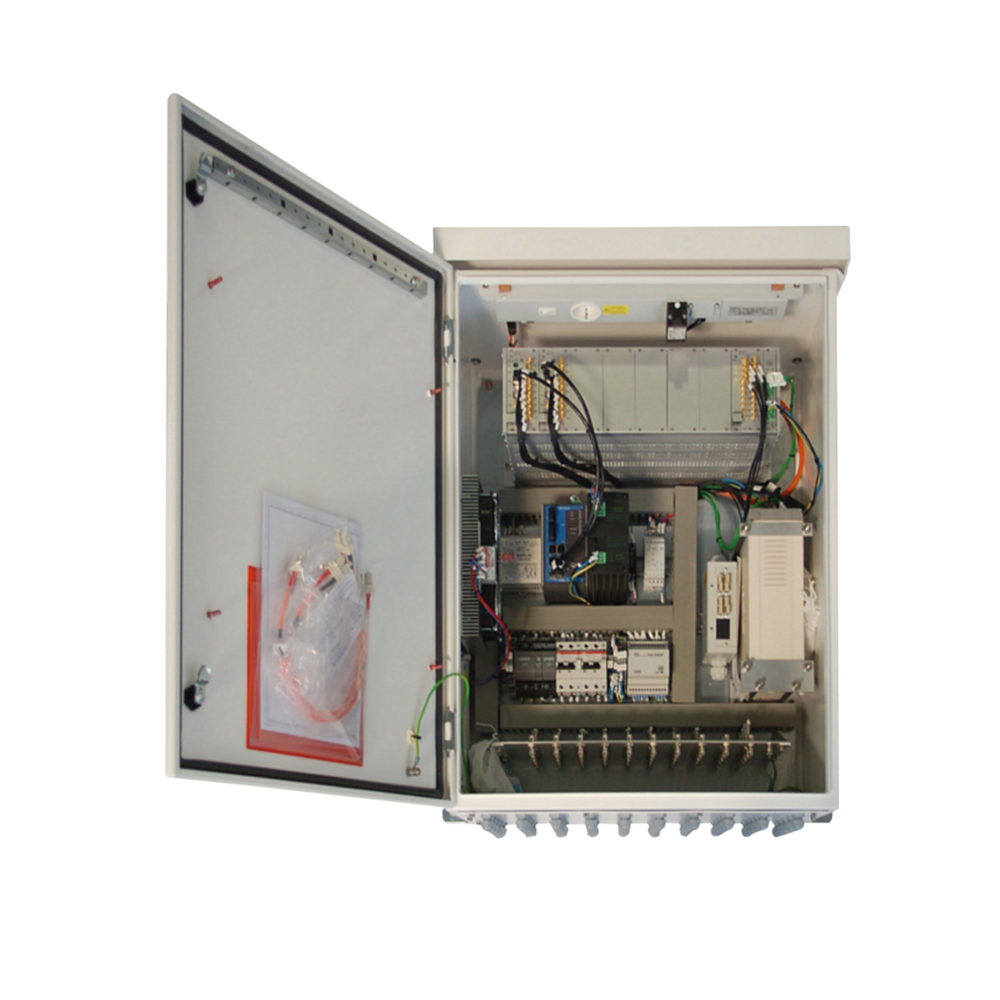

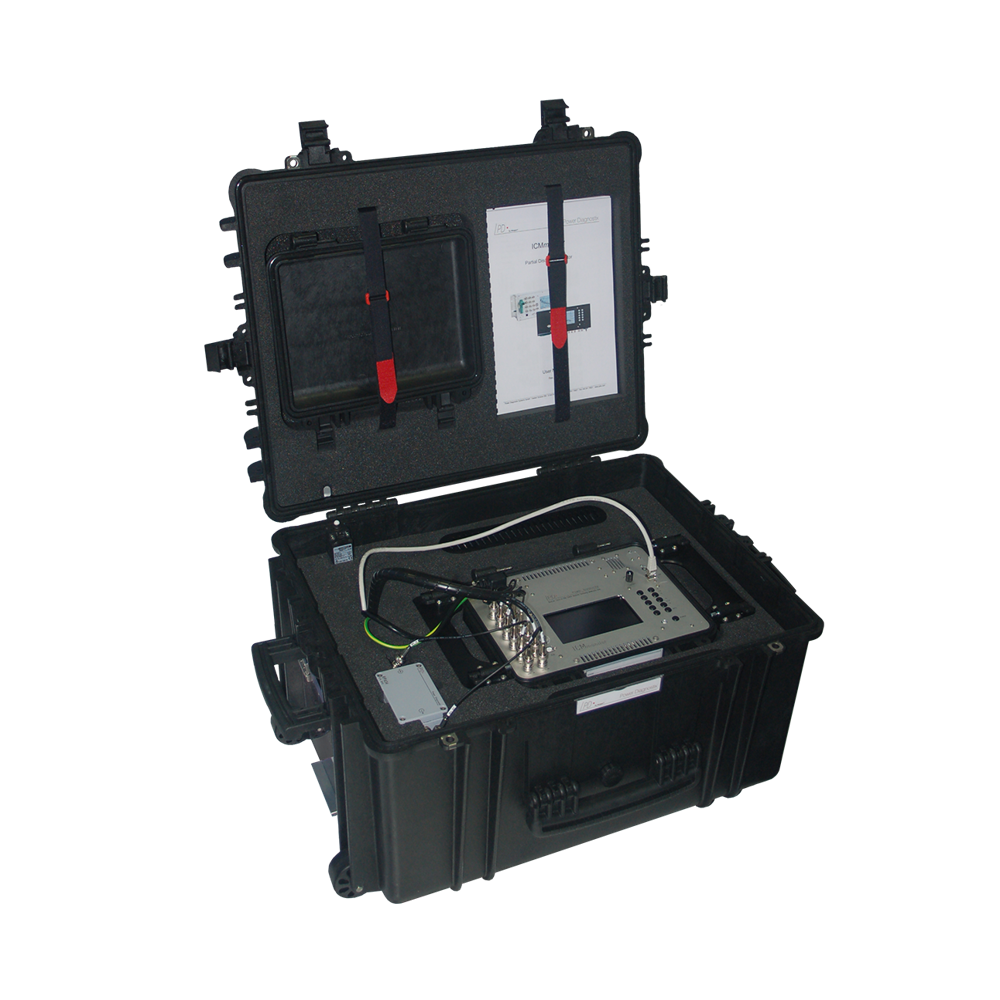

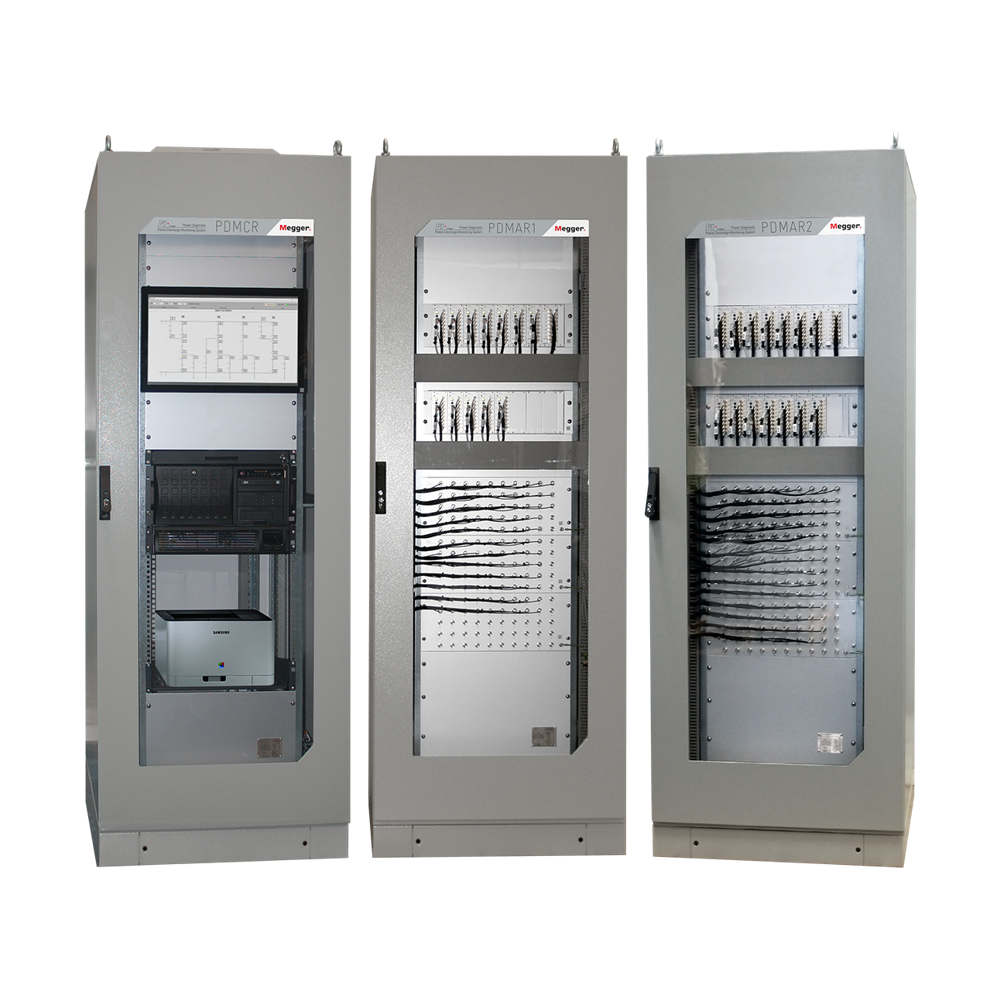

Each 8-channel acquisition plug-in board operates fully stand alone but can be combined with a virtually unlimited number of units, to monitor all PD sensors in one or even multiple GIS in parallel. A full 19" sub-rack carries 64 channels. A remote computer reads all data of the instruments via the high speed fiber optic LAN ring, providing communication redundancy. The GISmonitor indicates with on-board LEDs internal states and alarm conditions

Advanced Monitoring for Reliable GIS Performance

Detect partial discharge as low as 2 pC to proactively address insulation faults. The system utilizes three sensor types for comprehensive coverage, ensuring that GIS assets remain safe, efficient, and in optimal health. Remote monitoring and innovative analysis tools make predictive maintenance both simple and effective.

User-Friendly and Robust Design

Featuring a 7-inch LCD touch panel, IP65-certified enclosure, and rugged construction from aluminum alloy and engineered plastics, this monitoring system is designed for intuitive use and long-lasting durability. The unit is moisture, dust, and corrosion resistant, operating within a wide temperature range and harsh environments.

FAQ's of Online Partial Discharge Monitoring system on GIS:

Q: How does the system detect partial discharge in GIS equipment?

A: The system uses UHF, TEV, and Acoustic Sensors to capture partial discharge signals from gas insulated switchgear (GIS). Its advanced PD pattern recognition software analyzes these signals in real time, identifying insulation faults with high accuracy.

Q: What are the installation options available for this monitoring system?

A: Installation is flexible, offering clamp-on and bolt-on methods suitable for different GIS panel sizes. The enclosure's customizable dimensions ensure compatibility with a variety of GIS configurations.

Q: When should I use online partial discharge monitoring on GIS?

A: Continuous monitoring is recommended for preventive maintenance and early fault detection. It is especially useful during commissioning, after retrofits, or in routine monitoring frameworks to prevent accidental shutdowns and costly repairs.

Q: Where is the data from the monitoring system stored and how is it accessed?

A: All diagnostic data and event logs are stored in the system's 32 GB internal memory. Users can access data remotely via Ethernet, RS485, optional wireless connections, or through the integrated 7-inch LCD touch panel. Reporting and analysis can also be managed using advanced onboard software.

Q: What is the process if the system detects a partial discharge event?

A: Upon detecting a PD event, the system activates configurable visual and audible alarms. It records detailed, time-stamped event data and can notify maintenance teams instantly through remote monitoring interfaces for immediate attention.

Q: What are the primary benefits of using this online PD monitoring system?

A: Benefits include enhanced GIS reliability, reduced downtime, early insulation fault detection, and support for condition-based maintenance. The system also ensures safety compliance, detailed diagnostics, and improved asset management decisions through actionable insights.
