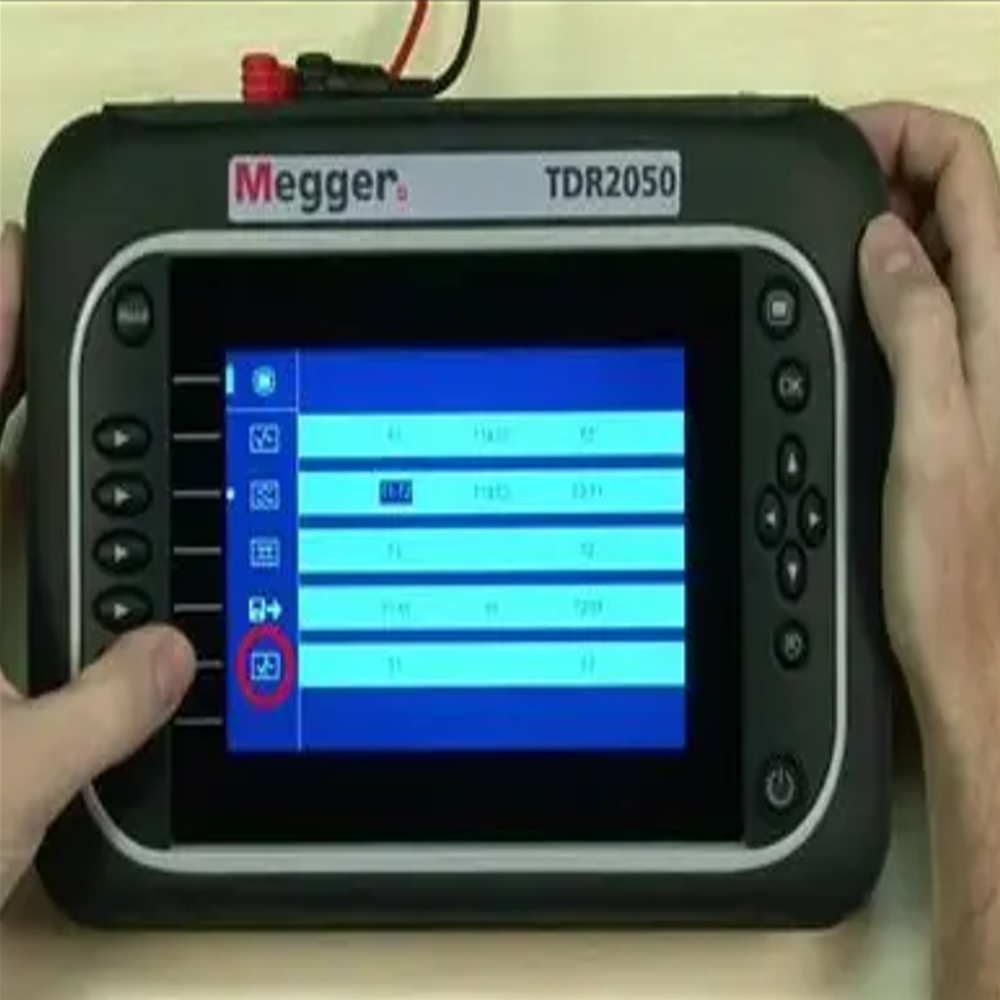

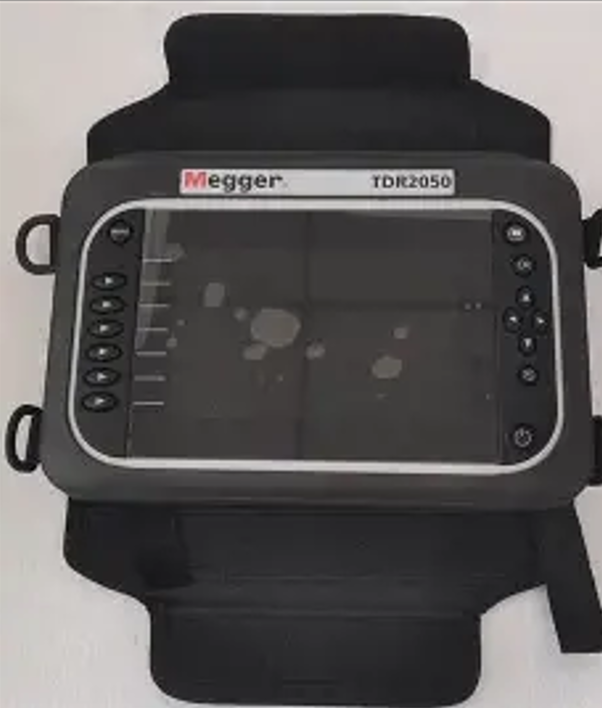

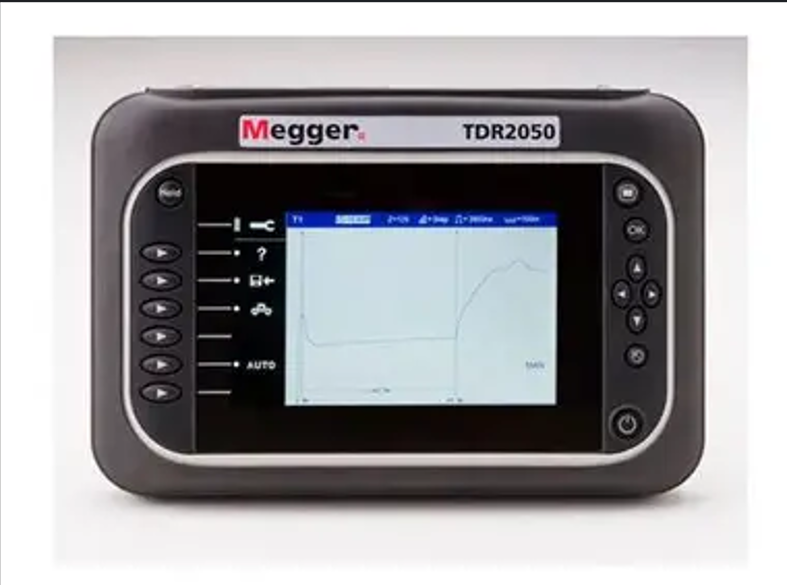

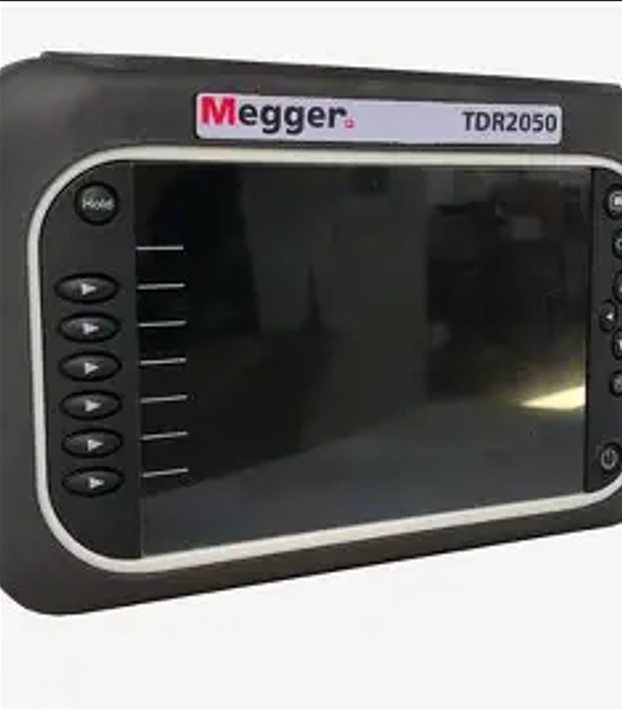

Two-Channel Cable Fault Locator TDR 2050

Two-Channel Cable Fault Locator TDR 2050 Specification

Batteries Type
4 x AA (Alkaline or Rechargeable)

Accuracy
1% of Reading

Resistant Feature
Impact, Dust and Water Resistant (IP54)

Pressure
Atmospheric

Usage & Applications
Locating cable faults on power and communication cables

Product Type
Two-Channel Cable Fault Locator

Material
High Impact ABS Plastic

Measuring Voltage Range
Up to 150V CAT IV

Operating Temperature
-10C to +50C

Frequency (MHz)
Up to 20 MHz

Insulation Box
Built-in Durable Housing

Protection System
IP54 Environmental Protection

Size
Handheld

Color
Black & Yellow

Dimension (L*W*H)
250 mm x 120 mm x 70 mm

Weight
1.1 kg

Cursor
Dual Cursors for Precise Fault Identification

Backlight
Adjustable Backlight for Outdoor Use

Dead Zone
< 1 m

Test Pulse Width
2 ns to 5000 ns Selectable

Velocity Factor Setting
0.30 to 0.99

USB Interface
Yes, for Data Transfer & Software Update

Trace Storage
100 Trace Memories

Range
Up to 20 km (Cable Dependent)

Display Type
Large Colour Transflective LCD

Software Compatibility
PC Analysis Software Included

Compliance
CE, IEC61010-1

Input Protection
Protection up to 150 V CAT IV

Power Saving
Automatic Power Down Feature

Two-Channel Cable Fault Locator TDR 2050 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Two-Channel Cable Fault Locator TDR 2050

The TDR 2050 is a two-channel time domain reflectometer designed for fast and accurate location of faults in power, control, and communication cables. Its dual-channel capability allows simultaneous comparison of two cable traces, helping engineers quickly identify opens, shorts, and impedance changes. The unit features a clear color display and intuitive controls for easy field operation. Compact and rugged, it is well suited for on-site troubleshooting and maintenance. Ideal for utilities, EPC contractors, and industrial maintenance teams.

Key Features

Two-channel measurement for side-by-side trace comparison
Accurate fault distance calculation using TDR technology
High-resolution color display with clear waveform viewing
Adjustable velocity of propagation (VOP) for different cable types
Supports open circuit, short circuit, and impedance faults
Portable, rugged design suitable for field use

Applications

Underground power cable fault location
Control and instrumentation cable testing
Telecom and communication cable diagnostics
Industrial cable maintenance and troubleshooting
Utility, EPC, and service engineer operations

Reliable Fault Location with High Accuracy

The TDR 2050 stands out for its capacity to accurately locate cable faults, reducing downtime and maintenance costs. Its dead zone of less than 1 meter and 1% reading accuracy enable detection of faults even in close proximity to the measurement point. Dual cursors provide engineers and technicians with precise control during analysis.

Engineered for Tough Environments

Built using high-impact ABS plastic and protected by an IP54-rated casing, the TDR 2050 endures harsh conditions including dust, water, and accidental impacts. Its handheld size, lightweight profile, and ruggedized insulation box make it portable and dependable for outdoor and industrial use.

Advanced Data Handling and Connectivity

Equipped with a USB interface, the TDR 2050 facilitates fast data transfer and seamless software updates. The integrated PC analysis software enhances trace analysis and report generation, supporting maintenance and record-keeping workflows efficiently.

FAQ's of Two-Channel Cable Fault Locator TDR 2050:

Q: How does the TDR 2050 identify cable faults?

A: The TDR 2050 transmits test pulses through cables and analyzes the reflected signals to determine the exact location of faults such as breaks, shorts, and degradation. Its dual channels and dual cursors facilitate comparison and accurate pinpointing of multiple faults within both power and communication cables.

Q: What is the process for storing and reviewing trace data?

A: Operators can store up to 100 cable trace memories directly on the device. Reviewing traces is facilitated by the large color transflective LCD, and users can transfer this data to a PC via USB for detailed analysis and reporting using the included software.

Q: When should the adjustable backlight feature be used?

A: The adjustable backlight is particularly beneficial for work in bright outdoor settings or poorly lit areas, allowing clear reading of measurements and traces on the LCD regardless of ambient light conditions.

Q: Where can the TDR 2050 be used?

A: Thanks to its IP54-rated protection and temperature operating range of -10C to +50C, the TDR 2050 is suitable for a wide variety of environments-from indoor substations and server rooms to outdoor cable trenches, fields, and remote installations across India.

Q: What benefits does the automatic power down feature provide?

A: Automatic power down conserves battery life by turning off the device after periods of inactivity, which is especially useful during fieldwork, saving time and ensuring the unit is ready for use when needed.

Q: How does the TDR 2050 ensure operator safety during measurements?

A: The device is rated for up to 150 V CAT IV and complies with CE and IEC61010-1 standards, providing robust input protection during testing on live cables, which helps safeguard users from electrical hazards.

Q: What are the usage advantages of the built-in durable housing?

A: Its durable insulation box and high-impact ABS construction shield the device from physical shocks, dust, and moisture, extending its service life and ensuring reliable operation in various industrial and outdoor locations.
