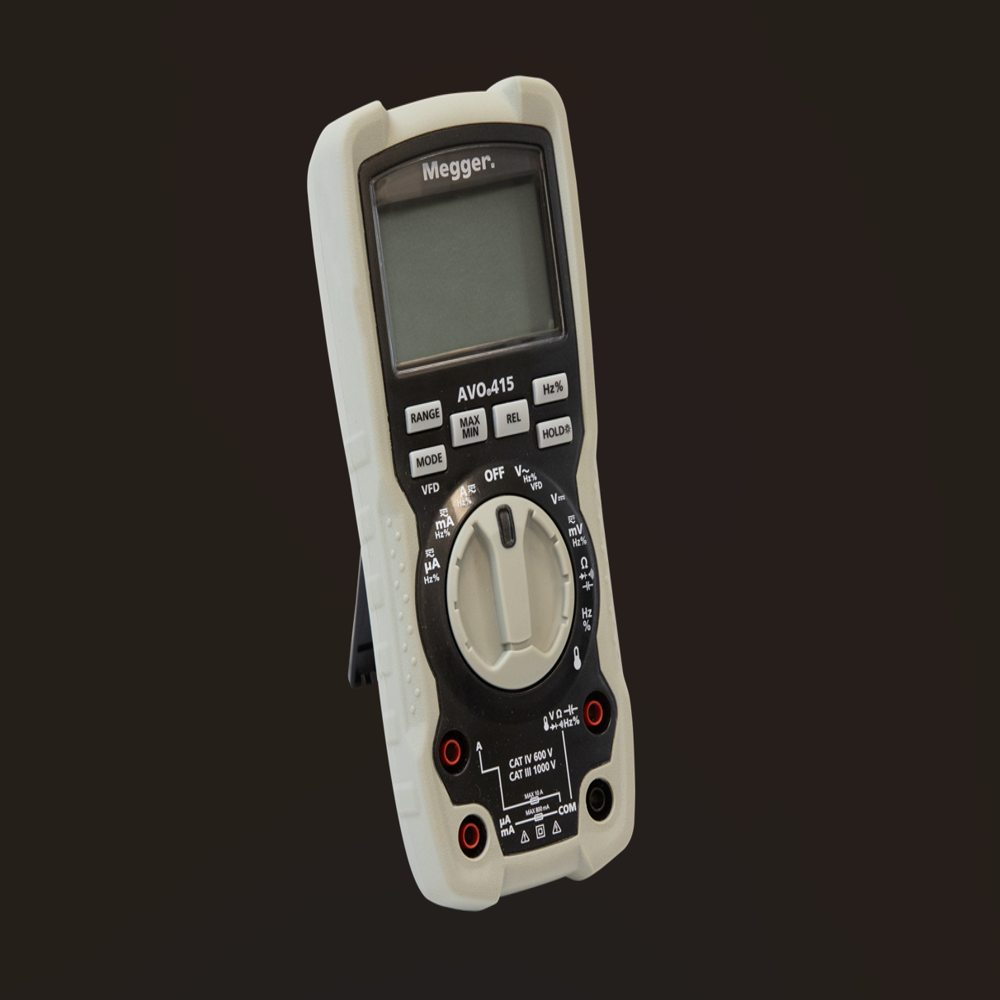

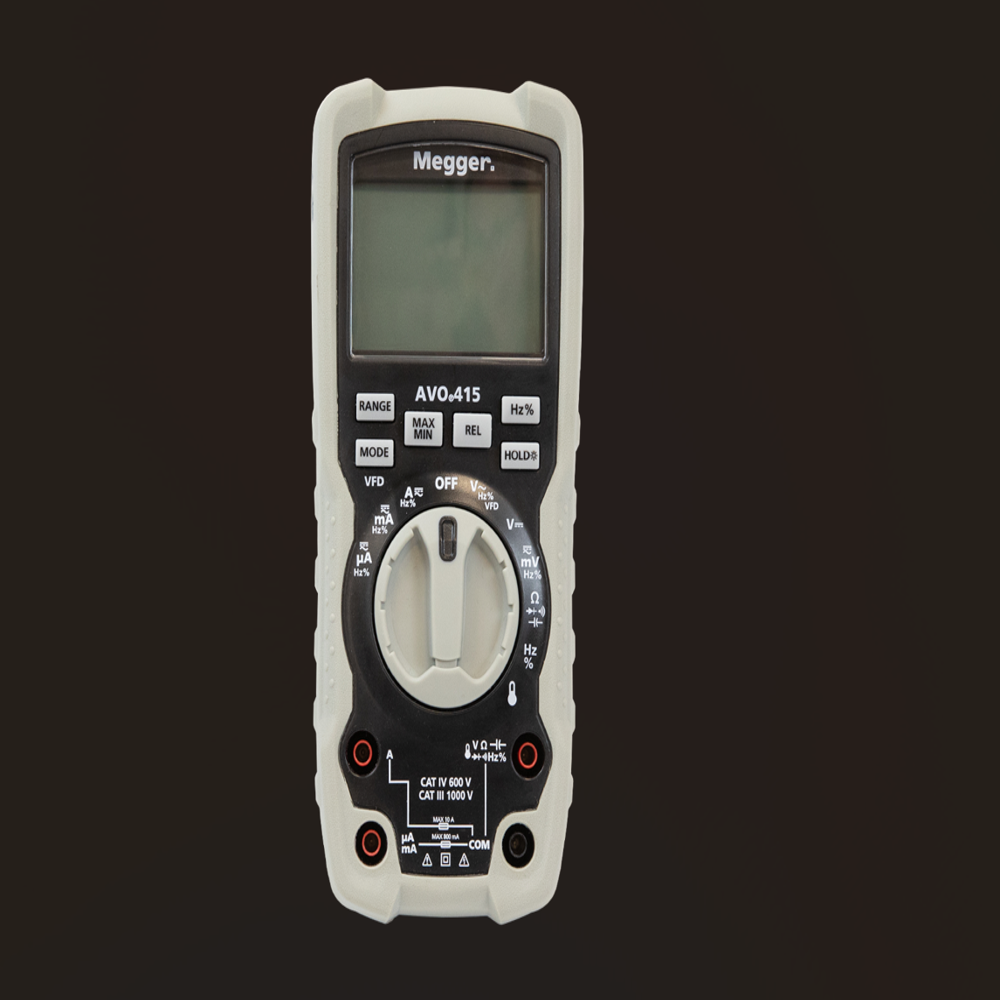

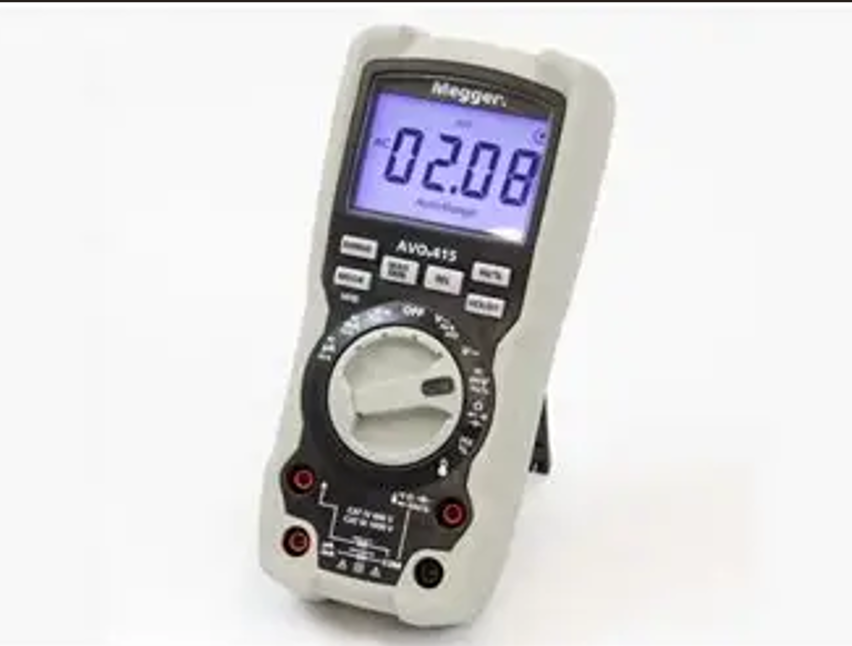

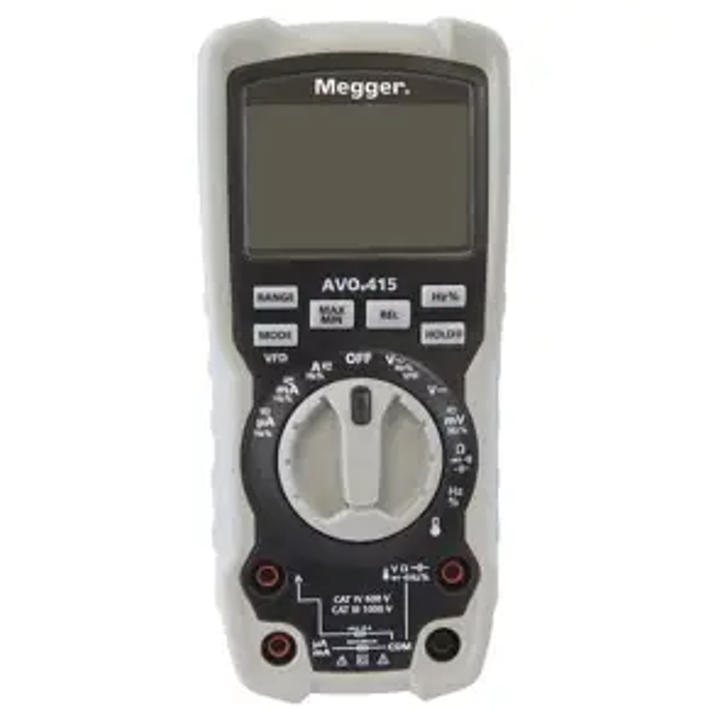

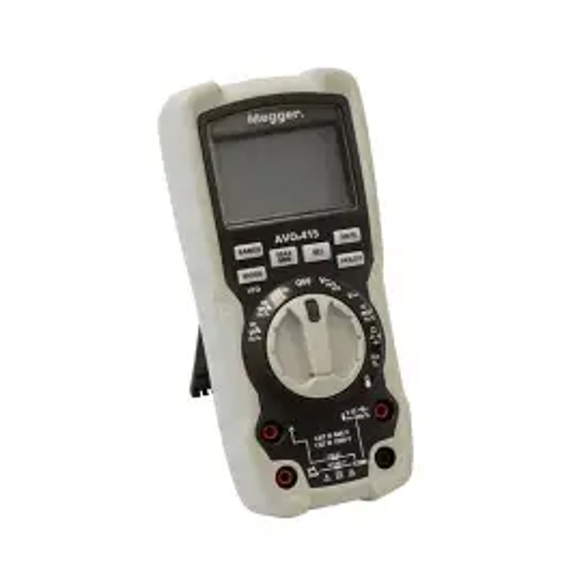

Digital Multimeter with VFD - AVO415 TRMS

Digital Multimeter with VFD - AVO415 TRMS About

The AVO is a heavy duty industrial True-RMS meter for demanding environments. It measures True RMS voltage up to 1000 V and current to 10 A with 6000 count resolution. As well as resistance, continuity, frequency, and capacitance for quick verifications. It meets CAT IV 600V/CAT III 1000V AC/DC safety and features. Its Variable frequency drive (VFD) measurement making it ideal for wide range of applications.

The continuity function features a buzzer to provide audio and visual results. Diode function allows forward reverse bias testing of diode and semiconductor junctions.

Auto ranging or manual range selection allows precision and speed to do the job. Also comes with MAX, MIN and hold function allowing ease of readability in daily use.

Specifications

• Max DC Voltage: 600 V

• Max AC Voltage: 600 V

• Max DC Current: 10 A

• Max AC Current: 10 A

• Measurement Technology: True-RMS with VFD (low-pass filter)

• Display: 6000-count digital LCD

• Frequency Measurement: Up to 5 kHz

• Resistance: Up to 60 M

• Capacitance: Up to 10 mF

• Functions:
  AC/DC voltage and current, resistance, continuity buzzer, diode test, capacitance, frequency, Data Hold, Min/Max

• Power Source: Battery operated

• Safety Rating: CAT IV 600 V / CAT III 1000 V

Advantages

• VFD low-pass filter provides accurate voltage measurement on motor drives and inverter-fed systems

• True-RMS ensures reliable readings on distorted and non-sinusoidal waveforms

• High safety rating suitable for industrial and commercial electrical environments

• Wide measurement capability reduces the need for multiple test instruments

• Compact and rugged design ideal for daily maintenance and troubleshooting

• Reliable performance backed by Meggers professional test-instrument quality

Precision and Versatility for Professionals

The AVO415 TRMS Digital Multimeter is designed to offer exceptional accuracy with features like VFD mode for variable frequency drives and True RMS measurement. Its broad measuring ranges and high input impedance ensure precise results for a wide variety of parameters, even in complex environments. Its robust build and CAT IV 600V/CAT III 1000V safety rating make it suitable for electricians, engineers, and service technicians alike.


User-Friendly Design and Reliable Operation

This device features a backlit, 40,000-count LCD for clear readings in various lighting conditions. The auto/manual ranging makes it adaptable to any user's needs, while data hold and low battery indicators enhance efficiency. Its compact, handheld form factor, combined with drop-proof and dust/splash-resistant construction, supports safe and dependable usage in the field or workshop.
