Optical Level PRO GOL 26 D-Bosch

Optical Level PRO GOL 26 D-Bosch Specification

Resistant Feature
Dustproof, Water Resistant (IP54)

Accuracy
1.6 mm at 30 m

Usage & Applications
Construction, Surveying, Land Levelling, Site Engineering

Product Type
Optical Level

Material
High-grade Aluminum and Plastic

Operating Temperature
-10C to +50C

Insulation Box
Yes, robust protective case included

Protection System
Weather and dust resistant (IP54)

Size
Standard

Color
Blue with Black and Silver Accents

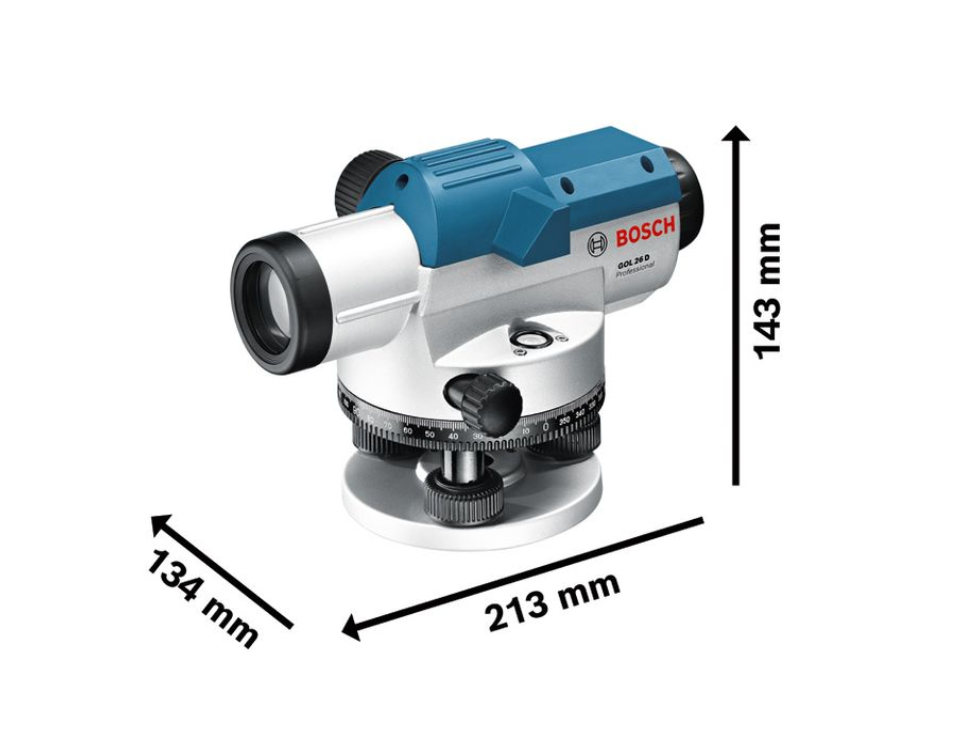

Dimension (L*W*H)
215 x 135 x 145 mm

Weight
1.7 kg (Instrument only)

Telescope Magnification
26x

Field of View
2.6 m at 100 m

Protection Class
IP54 (against dirt and splashes)

Tripod Thread
5/8"

Objective Aperture
36 mm

Minimum Focus Distance
1.6 m

Stadia Additive Constant
0

Compensator Range
15 (minutes) with magnetic damping

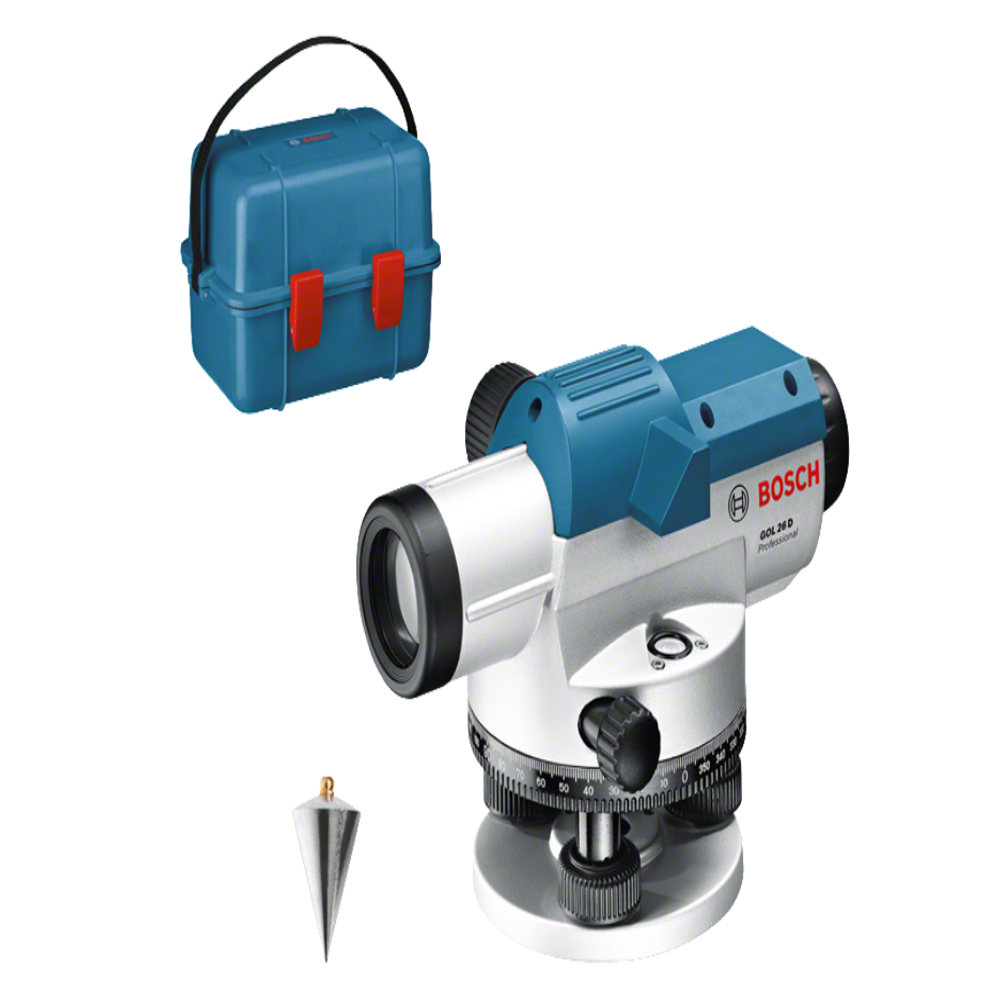

Carrying Case
Yes, included

Leveling Range
360

Stadia Multiplication Constant
100

Optical Level PRO GOL 26 D-Bosch Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

Optical Level PRO GOL 26 D-Bosch About

The Bosch PRO GOL 26 D Optical Level is a high-precision surveying and leveling instrument designed for professional construction and civil engineering applications. It delivers reliable accuracy, rugged durability, and ease of operation for demanding site conditions.

The PRO GOL 26 D is equipped with a 26 magnification telescope that ensures clear, sharp imaging of leveling staffs even over long distances. Its automatic compensator with transport lock maintains accuracy and protects internal components during movement. The metal housing with IP54 protection ensures resistance against dust and water splashes.

Key Features

Magnification: 26
Leveling accuracy: 1.6 mm at 30 m
Working range: Up to 100 m
Protection class: IP54 (dust and splash resistant)
Built-in circular vial and target collimator
360 horizontal circle for angle measurement
Standard 5/8" tripod mounting thread

Technical Specifications

Model: PRO GOL 26 D
Instrument type: Optical Level
Accuracy: 1.6 mm / 30 m
Magnification: 26
Working Range: 100 m
Tripod Thread: 5/8 inch
Operating Temperature: 10 C to +50 C
Weight: Approx. 1.5 kg

Applications

Building and construction leveling
Road and infrastructure projects
Civil engineering and surveying
Landscaping and ground profiling
Foundation and alignment work

Superior Accuracy and Magnification

Offering 26x magnification and an accuracy of 1.6 mm at 30 meters, the Bosch PRO GOL 26 D ensures precise measurements for a wide array of leveling applications. Its high-grade optics provide a bright, clear field of view even in challenging site conditions.

All-Weather, Durable Construction

Built with high-grade aluminum and plastic, this optical level is both lightweight and durable. The IP54 protection class means it's resistant to dust and water splashes, ensuring reliable performance whether you're indoors or outdoors.

Versatile and User-Friendly Design

The PRO GOL 26 D supports applications in construction, site engineering, and land surveying. The 360 leveling range, easy setup with a 5/8" tripod thread, and included robust protective case make transportation and placement straightforward and secure.

FAQ's of Optical Level PRO GOL 26 D-Bosch:

Q: How does the magnetic damping compensator enhance leveling accuracy?

A: The magnetic damping compensator in the PRO GOL 26 D quickly stabilizes the instrument, minimizing vibrations and external movements. This ensures the horizontal line remains steady, contributing to the instrument's high accuracy of 1.6 mm at 30 meters.

Q: What is the recommended process for setting up the GOL 26 D on site?

A: To set up, mount the optical level onto a compatible 5/8" tripod, adjust the instrument height, and use the leveling screws to center the bubble within the vial. The robust design and IP54 rating make it suitable for rapid, reliable setup in various field conditions.

Q: Where can the Bosch PRO GOL 26 D be used effectively?

A: This optical level is ideal for use in construction, surveying, land leveling, and site engineering projects. Its resilience to dust, water splashes, and temperature fluctuations (-10C to +50C) make it dependable in diverse environmental settings.

Q: What benefits does the included insulation and carrying case provide?

A: The insulated, robust carrying case protects the optical level from impacts, dust, and moisture during transport and storage, extending the lifespan and maintaining calibration of the instrument for consistent accuracy.

Q: When should you perform accuracy checks on the instrument?

A: Accuracy checks are recommended before each major use, especially after transport or heavy site activity, to ensure measurement precision over time. The PRO GOL 26 D's design helps maintain calibration, but routine verification maximizes reliability.

Q: What is the minimum focus distance and why is it important?

A: The minimum focus distance of 1.6 meters enables the instrument to perform accurate leveling measurements even in confined or compact work zones, enhancing its flexibility on diverse job sites.
