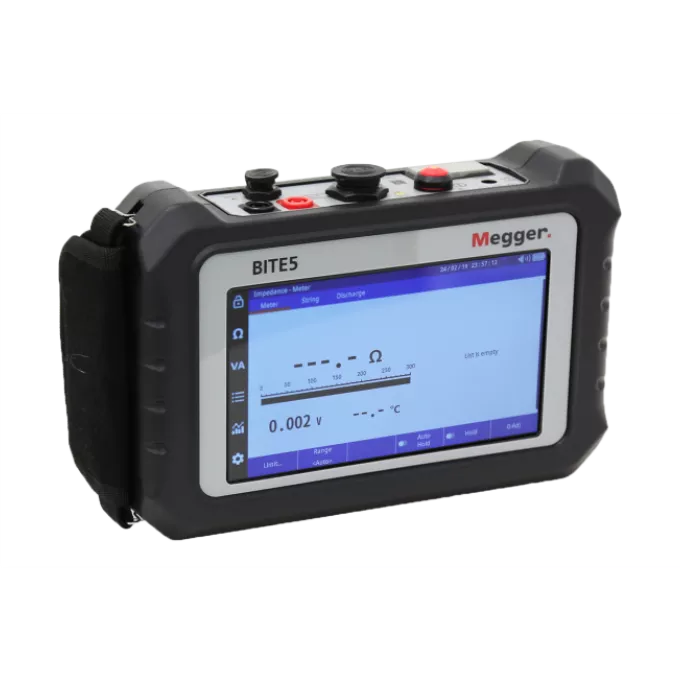

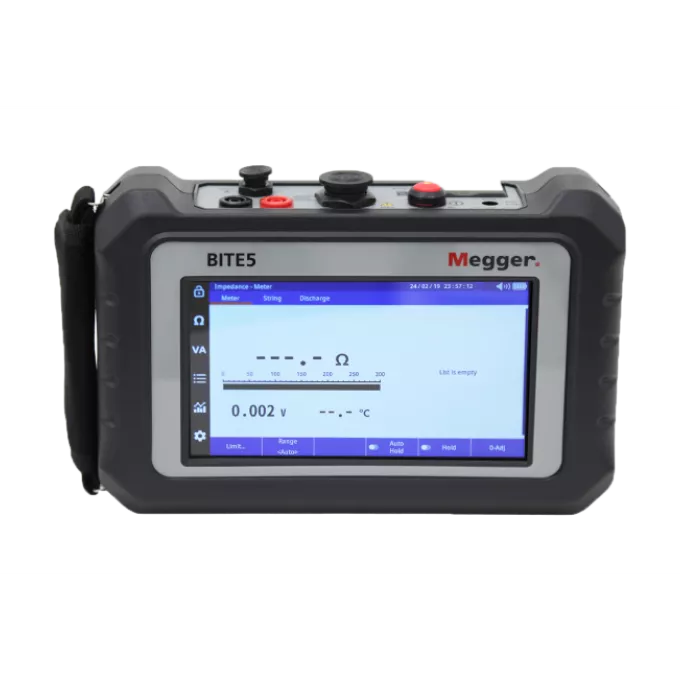

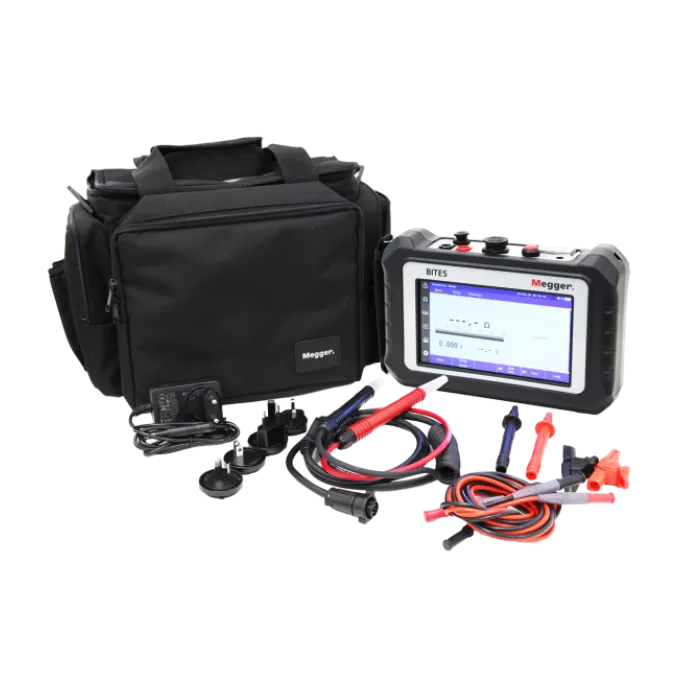

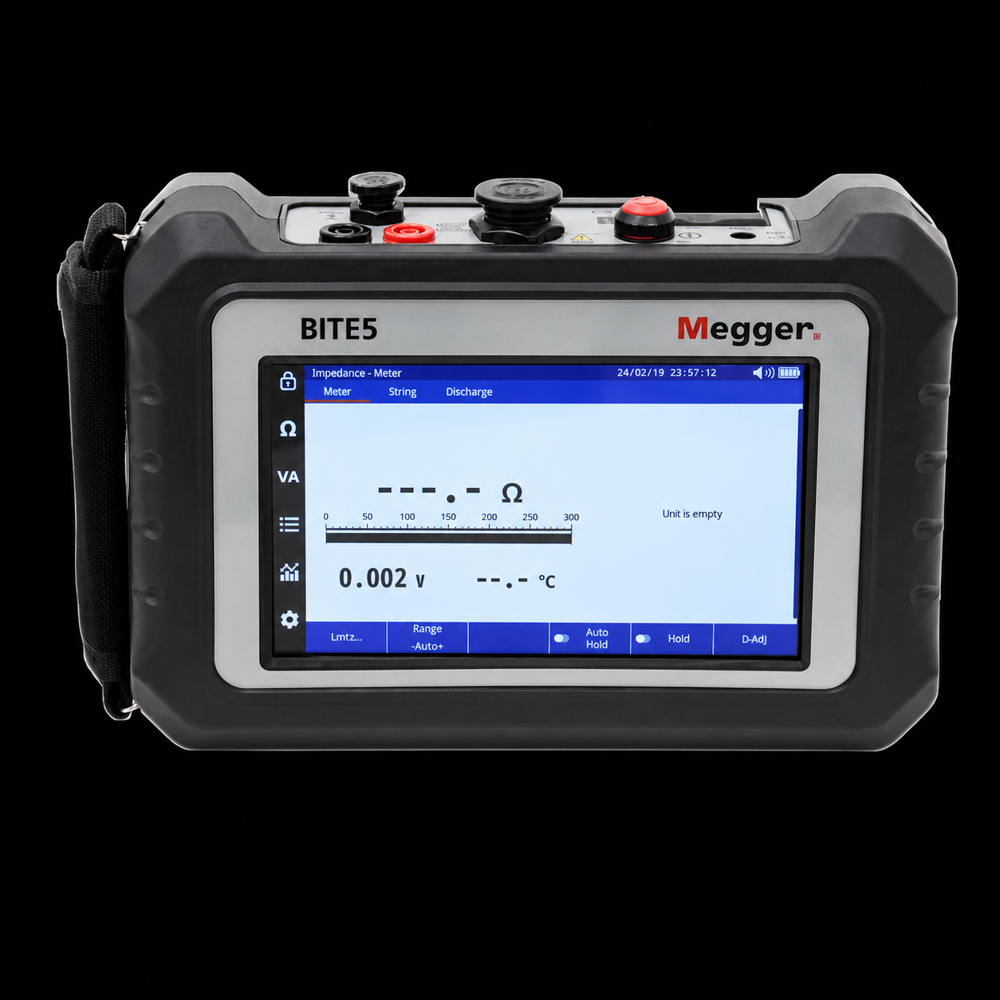

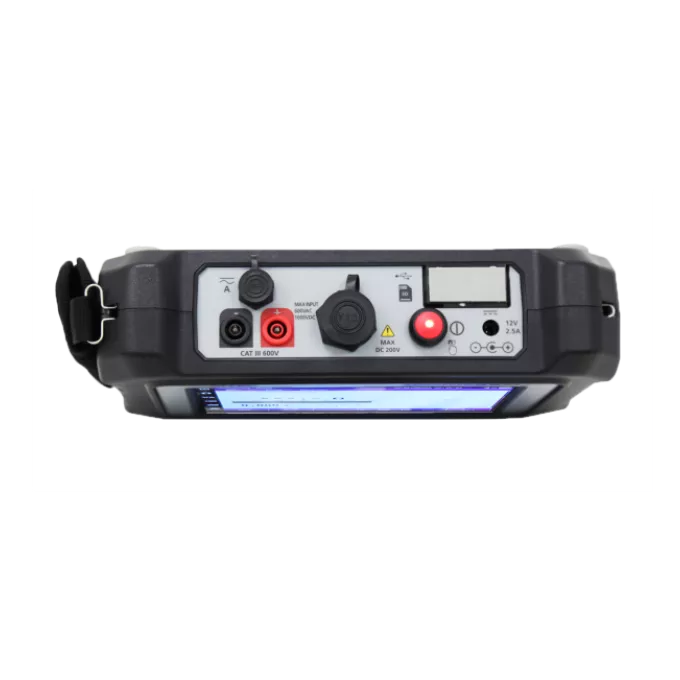

Battery Tester BITE5 Advanced Series

Battery Tester BITE5 Advanced Series Specification

Measuring Range
Voltage: 1 V to 80 V DC; Impedance: 0.001 m to 1

Equipment Type
Battery Impedance Tester

Specimen Size
Compatible with a wide range of lead acid batteries

Port Size
Standard Test Leads

Accuracy
Impedance: 1.5% + 2 digits

Features
WiFi, Bluetooth, Data Logging, Trending, Touchscreen, Multi-language support

Power Supply
Rechargeable Lithium-Ion Battery

Resolution
Impedance: 0.001 m

Application
Testing Lead Acid Battery Strings

Response Time
Instantaneous Measurement

Automation Grade
Manual / Semi-automatic

Interface Type
USB, Ethernet, WiFi, Bluetooth

Operating Voltage
12 - 80 V DC

Display Type
7-inch Color Touchscreen Display

Humidity
0% to 85% RH (non-condensing)

Test Range
Impedance: 0.001 m to 1

Number of Specimens
Single Unit Operation

Mounting Type
Portable / Handheld

Temperature
Operating: -10C to +50C

Usage
Field & Laboratory Battery Analysis

Machine Weight
2.8 kg

Control Mode
Touchscreen Interface

Clock
Real-time clock with date and time stamp

Protection
IP54 rated for dust and water resistance

Memory Capacity
50,000 test results

Calibration Interval
Recommended annually

Firmware
Upgradeable via USB interface

Compliance
IEC 61010, CAT III 600 V

Data Transfer
USB, WiFi, Bluetooth, direct to PC

Dimensions
270 mm x 180 mm x 80 mm

Languages Supported
English, Spanish, French, German, Chinese, and more

Charging Time
Full recharge in 2.5 hours

Safety Features
Overvoltage and reverse polarity protection

Battery Life
Up to 10 hours continuous use

Battery Tester BITE5 Advanced Series Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
30 Days

About Battery Tester BITE5 Advanced Series

Adiradh offers the Battery Tester BITE5 Advanced Series for comprehensive battery condition assessment and preventive maintenance applications. Moreover, the instrument is designed to evaluate lead-acid, NiCd, and stationary battery systems used in critical power infrastructure. In addition, the BITE5 Advanced Series provides rapid battery diagnostics without interrupting system operation. Furthermore, the tester measures internal cell resistance, voltage, ripple current, and temperature to determine battery health accurately. Therefore, maintenance personnel can identify deteriorating cells before failures occur. Also, the handheld design enables convenient testing in substations, data centers, telecommunications facilities, and industrial plants. Consequently, inspection efficiency improves while maintenance costs are reduced. In addition, the advanced data storage and analysis capabilities support condition-based maintenance programs. Furthermore, the instrument delivers reliable and repeatable measurement performance under field conditions. Finally, the BITE5 Advanced Series improves battery reliability, supports predictive maintenance strategies, enhances system availability, and helps prevent unexpected battery failures.

Reliable Field and Laboratory Battery Testing

The BITE5 Advanced Series delivers advanced battery impedance measurements, essential for maintaining and diagnosing lead acid battery strings in both field and laboratory contexts. Its robust construction, wide measuring range, and intuitive touchscreen interface simplify testing large fleets of batteries, ensuring accurate results and supporting efficient maintenance strategies.

Versatile Connectivity and Data Management

Equipped with USB, WiFi, Bluetooth, and Ethernet interfaces, the BITE5 allows seamless data transfer directly to a PC or cloud. With its immense memory, up to 50,000 test results can be logged, trended, or exported for comprehensive analysis. Firmware can be upgraded conveniently via the USB port, future-proofing your investment and ensuring access to the latest features.

Enhanced Safety and Durability Features

Meeting IEC 61010 and CAT III 600 V standards, the BITE5 includes vital safety features like overvoltage and reverse polarity protection. Its IP54 rating guards against dust and water, enabling operation in demanding environments. The rechargeable lithium-ion battery supports up to 10 hours of use, with a fast 2.5-hour recharge time, making it ideal for uninterrupted fieldwork.

FAQ's of Battery Tester BITE5 Advanced Series:

Q: How does the BITE5 Advanced Series conduct battery impedance testing?

A: The BITE5 measures battery impedance by applying a precise signal and instantly analyzing the response, allowing users to assess the health of lead acid batteries. Its 7-inch touchscreen guides operators through the testing process, delivering results with high accuracy and resolution.

Q: What are the advantages of using the BITE5 in the field or laboratory?

A: With its portable design, IP54 rating, and up to 10-hour battery life, the BITE5 excels in both field and laboratory environments. It can store up to 50,000 results, enabling extensive campaigns without frequent data downloads, and supports trending for in-depth maintenance planning.

Q: When should the BITE5 be calibrated or serviced?

A: The BITE5 Advanced Series is recommended to undergo calibration annually to maintain measurement accuracy. Annual service ensures consistent and reliable test results across all your battery analysis applications.

Q: Where can measurement data from the BITE5 be accessed or exported?

A: Data collected by the BITE5 can be accessed directly on the device via its color touchscreen or exported to a PC using USB, Ethernet, WiFi, or Bluetooth. This flexibility allows integration into asset management systems or reporting tools.

Q: What safety features does the BITE5 incorporate during operation?

A: The tester offers comprehensive protection, including overvoltage and reverse polarity safeguards, ensuring user safety and preventing damage to both the tester and batteries under analysis. It is compliant with IEC 61010 and CAT III 600 V standards for high-voltage environments.

Q: How long does it take to fully recharge the BITE5, and what is its runtime?

A: A full recharge of the BITE5's lithium-ion battery is achieved in just 2.5 hours, and the device can be used continuously for up to 10 hours. This makes it suitable for extended battery testing sessions without frequent interruptions.

Q: What types of batteries and environments is the BITE5 compatible with?

A: The BITE5 is designed for single unit operation with a wide range of lead acid batteries, accommodating various specimen sizes and testing scenarios in both controlled laboratory spaces and challenging field conditions.
