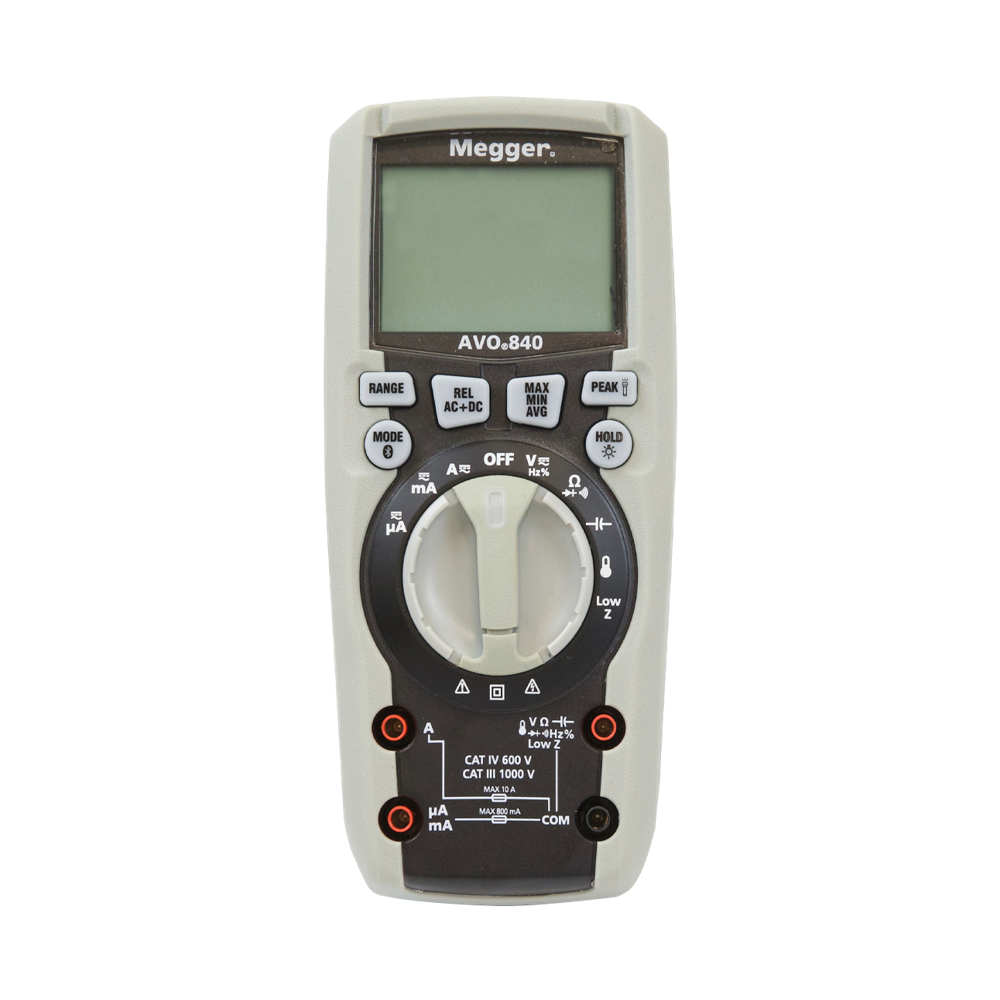

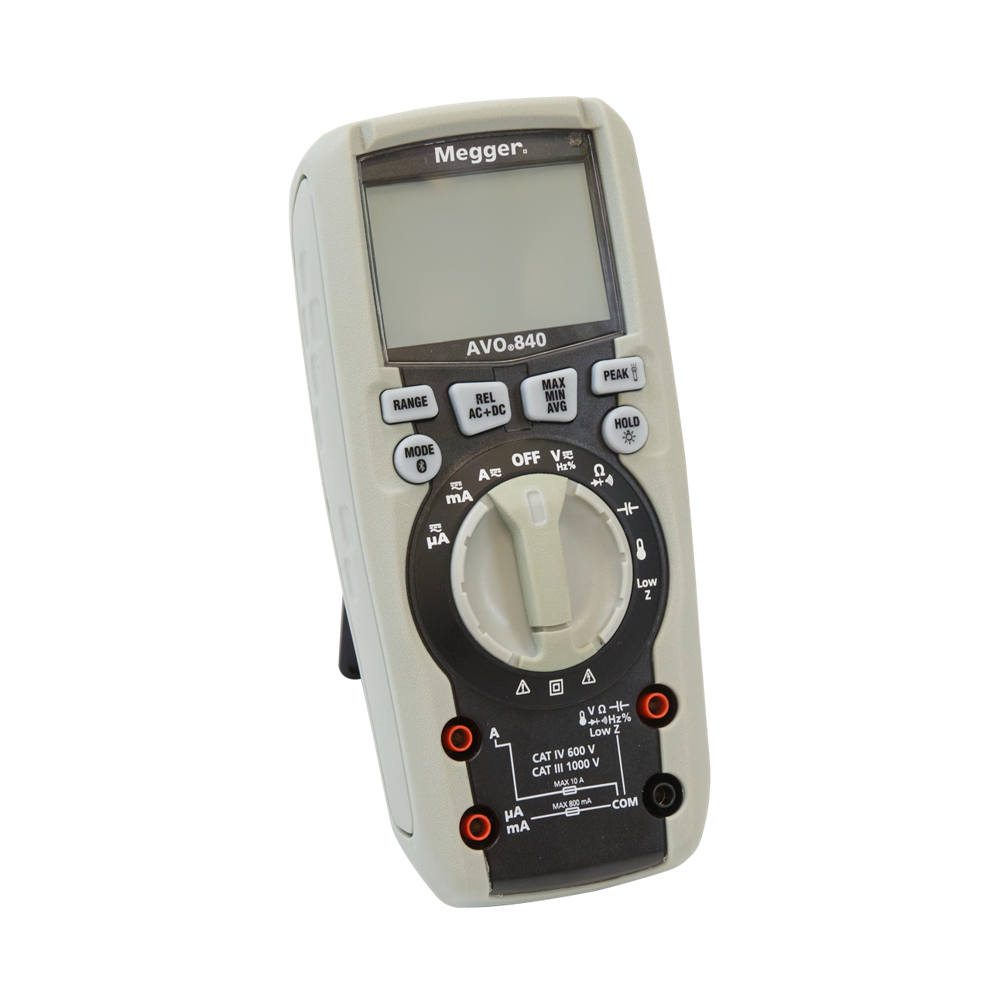

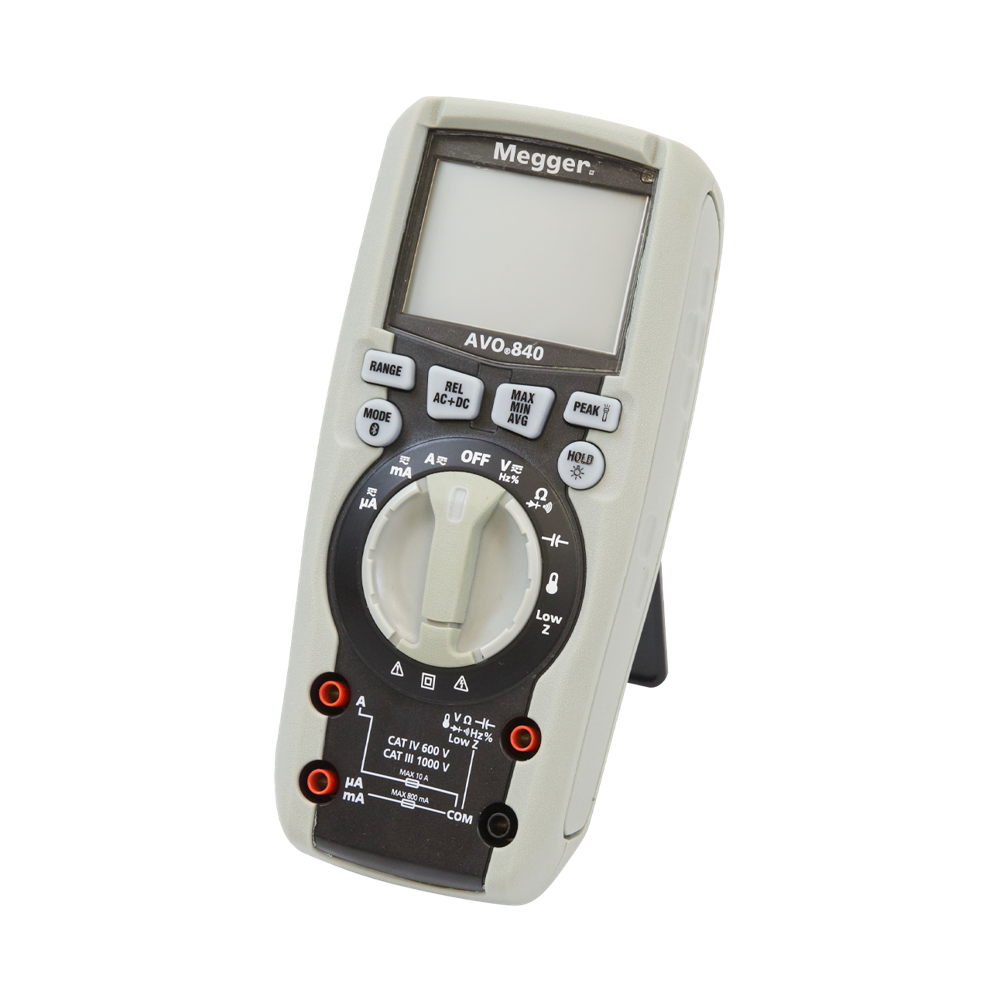

Digital Multimeter AVO840 True RMS

Digital Multimeter AVO840 True RMS Specification

Usage & Applications
Electrical and Electronic Testing

Batteries Type
2 x AA (included)

Resistant Feature
Shock Resistant, Drop Proof

Accuracy
0.5% (DC), 1.0% (AC)

Product Type
Digital Multimeter

Material
ABS Plastic

Measuring Voltage Range
1000V AC/DC

Operating Temperature
0C to 40C

Frequency (MHz)
20 MHz

Insulation Box
Yes

Protection System
Overload and Fuse Protection

Size
Standard

Color
Yellow & Black

Dimension (L*W*H)
190 x 95 x 40 mm

Weight
0.45 kg

Display Type
Digital LCD, 6000 Counts

Data Hold Function
Yes

Diode Check
Yes

Current Measurement Range
10A AC/DC

True RMS
Yes

Backlight
Yes

Safety Standard
CAT III 1000V, CAT IV 600V

Sampling Rate
3 times/sec

Input Impedance
10 M (V)

Continuity Buzzer
Yes

Auto Power Off
Yes

Resistance Measurement Range
60 M Max

Capacitance Measurement
Yes, up to 100 mF

Digital Multimeter AVO840 True RMS Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Packaging Details
Cartoon

Main Domestic Market
All India

Digital Multimeter AVO840 True RMS About

The AVO840 True RMS multimeter is for electricians, technicians, engineers, and service personnel. Comes with Bluetooth connectivity and mobile app support for Android and iOS devices. Real-time measurement sharing and remote track readings from a safe distance.

CAT III 1000 V / CAT IV 600 V safety rated with 6000 count display. Features, AC+DC measurements, make it easy to calculate real time power dissipation. Its Low-Z mode ensures a low impedance input to circuits under test, reducing false readings caused by ghost voltages. Continuity function offers both audio and visual feedback. The diode function to test diodes and semiconductor junctions. Tested to 2m drop and IP57, the AVO840 with its features and durability make it ideal for professionals in the field of electrical work.

Accurate Measurement Made Easy

With True RMS technology and a 6000-count LCD, the AVO840 delivers accurate readings across AC/DC voltage (up to 1000V) and current (up to 10A). This precision, combined with data hold and a frequency range up to 20 MHz, makes it indispensable for troubleshooting in demanding environments.

Safety-Centric Design

The AVO840 ensures user protection through CAT III 1000V and CAT IV 600V safety standards, overload and fuse protection, and insulation box. Its shock-resistant ABS body and drop-proof build further secure users during intensive testing tasks.

Versatile Utility for Professionals

Designed for both electrical and electronic applications, this multimeter accommodates a wide range of measurements including resistance (up to 60 M), capacitance (up to 100 mF), and diode checks. Its compact form factor, light weight, and backlight support ease of use in various field settings.

FAQ's of Digital Multimeter AVO840 True RMS:

Q: How does the True RMS function benefit electrical and electronic testing with the AVO840 multimeter?

A: The True RMS capability enables the AVO840 to accurately measure both pure and distorted AC waveforms, making it ideal for professional applications where precise readings are crucial, such as diagnosing complex electrical systems.

Q: What is the process for measuring current and voltage with the AVO840, and what ranges are supported?

A: To measure current or voltage, simply select the appropriate mode on the multimeter and connect the test leads to the circuit. The AVO840 supports voltage measurement up to 1000V AC/DC and current up to 10A AC/DC, ensuring wide applicability.

Q: When should the data hold and backlight functions be used during testing?

A: The data hold function is helpful when you need to freeze a reading for documentation or difficult-to-view positions, while the backlight is useful in low-light environments, ensuring the display remains visible during critical measurements.

Q: Where can the Digital Multimeter AVO840 be safely used?

A: Thanks to its CAT III 1000V and CAT IV 600V safety ratings, and durable, shock-resistant construction, the AVO840 is suitable for use in industrial, commercial, and residential settings where high voltage and demanding environments are present.

Q: What makes the AVO840 multimeter reliable in terms of user protection?

A: The AVO840 is equipped with overload and fuse protection systems, an insulation box, and a rugged ABS plastic enclosure, all of which significantly reduce risks associated with high-voltage and high-current measurements.

Q: How does the AVO840 support different types of electrical measurements?

A: In addition to voltage and current, the AVO840 can measure resistance up to 60 M, capacitance up to 100 mF, perform diode checks, and test continuity with an audible buzzer-providing comprehensive coverage for troubleshooting and diagnostics.
