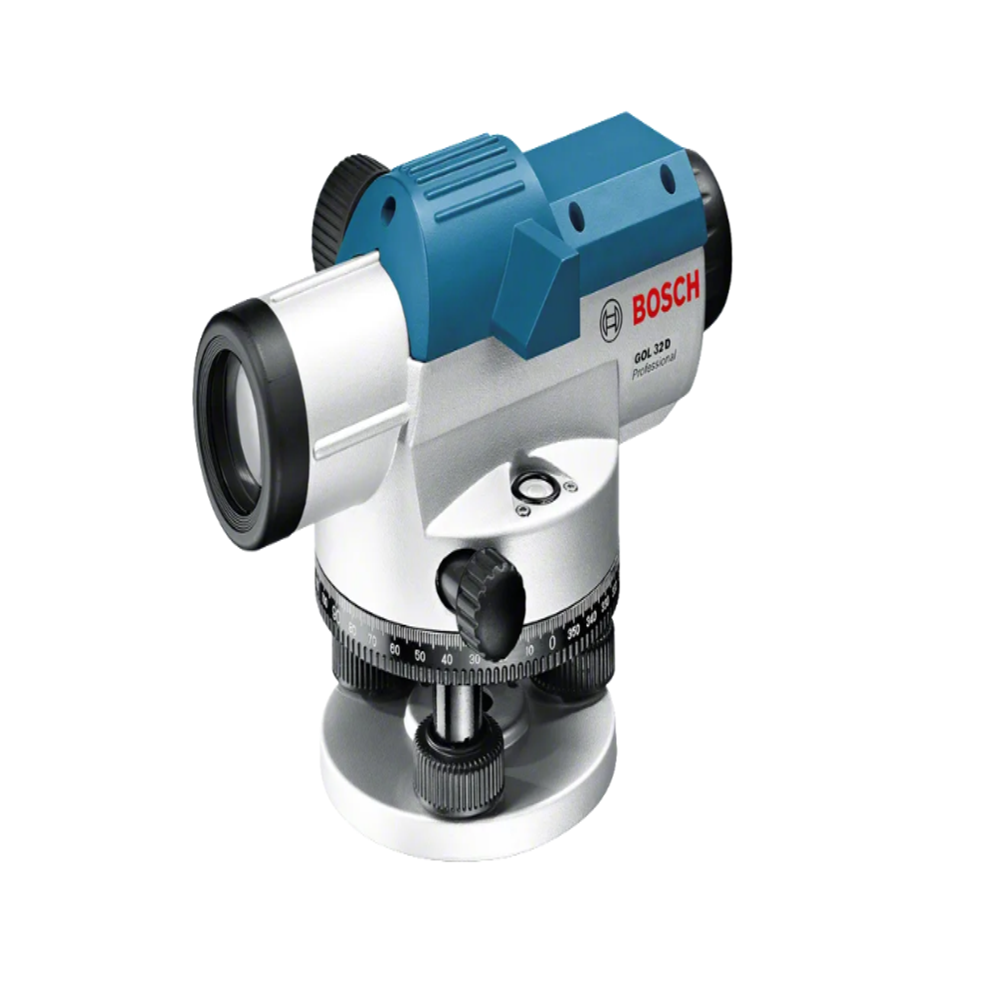

Optical Level PRO GOL 32 D

Optical Level PRO GOL 32 D Specification

Accuracy
1.0 mm per 1 km double run

Resistant Feature
Dust & Water Resistant

Usage & Applications
Surveying, Construction Leveling

Product Type
Optical Level

Material
Aluminum Alloy

Operating Temperature
-20C to +50C

Insulation Box
Yes

Protection System
IP54

Size
32x20x20 cm

Color
Yellow-Black

Dimension (L*W*H)
24 cm x 12 cm x 14 cm

Weight
1.5 kg

Telescope Image
Erect

Circle Graduation
360

Stadia Additive Constant
0

Tripod Thread
5/8''

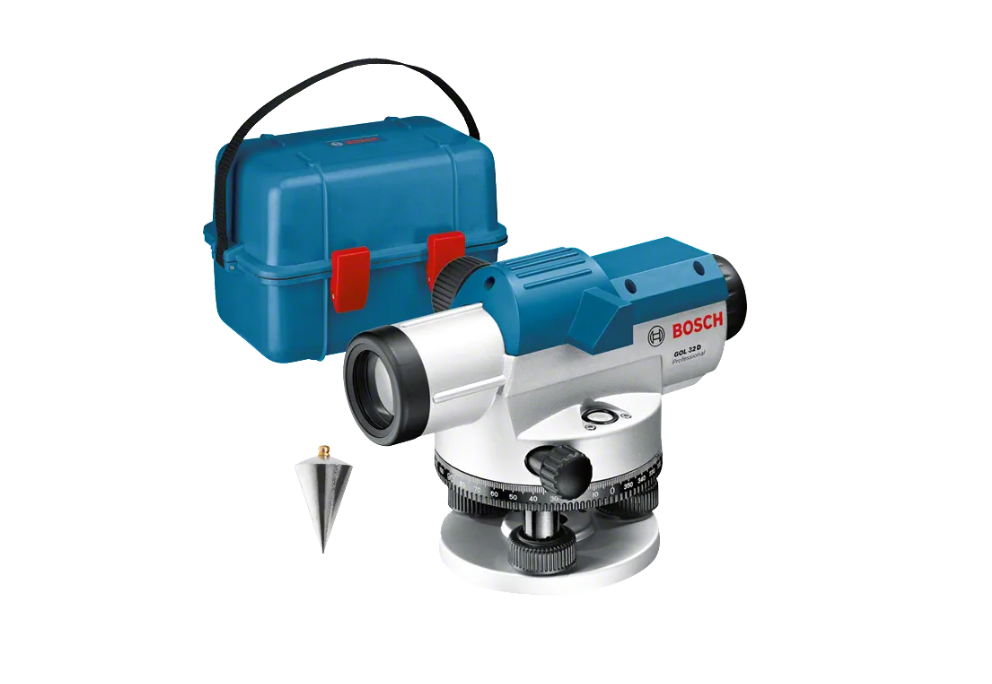

Carrying Case
Hard Carrying Case Provided

Stadia Multiplication Constant
100

Shortest Focusing Distance
0.3 m

Objective Aperture
40 mm

Magnification
32x

Compensator Accuracy
<0.5"

Compensator Range
15'

Optical Level PRO GOL 32 D Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10 Days

About Optical Level PRO GOL 32 D

The Optical Level PRO GOL 32 D is a professional optical leveling instrument designed for accurate height and alignment measurement in construction and surveying work. It features a high-quality 32x magnification optical system that delivers clear and sharp readings over long distances. The automatic compensator ensures stable and precise leveling, even with minor setup errors. With a rugged body and IP54 dust and splash protection, the instrument is suitable for regular outdoor site use. Manual operation without batteries makes it reliable for continuous field applications. The PRO GOL 32 D supports fast setup, consistent accuracy, and dependable performance for civil engineering and infrastructure projects.

Technical Specifications:

Magnification: 32x
Accuracy: 1 mm at 30 m
Working Range: 120 m
Unit of Measure: 360 degrees
Dust and Splash Protection: IP54
Tripod Thread: 5/8 inch
Operating Temperature: -10 C to +50 C
Storage Temperature: -20 C to +70 C
Weight (Approx.): 1.5 kg

Key Features:

High-precision 32x optical system
Automatic compensator for stable readings
Clear optics for long-distance measurement
Rugged construction for site conditions
Manual operation without battery dependency
Standard 5/8" tripod mounting

Applications:

Construction site leveling
Foundation and footing alignment
Road and infrastructure projects
Land surveying and civil engineering
Height transfer and elevation measurement

Advantages:

Accurate and repeatable results
Reliable mechanical operation
Suitable for outdoor and rough environments
Easy setup and handling
Low maintenance requirements

Superior Precision and Durability

Engineered for consistent accuracy, the PRO GOL 32 D features a 32x magnification telescope and a 40 mm objective aperture. Its robust aluminum alloy body and IP54 rating ensure resilience to dust and water, while a hard carrying case and insulation box protect it during transport and storage. Designed to withstand harsh jobsite conditions, this level maintains performance from -20C to +50C.

Engineered for Efficiency

With its shortest focusing distance of 0.3 m and a 360-degree graduated circle, the Optical Level PRO GOL 32 D excels in tasks requiring fine detail and broad measurement. The compensator has a range of 15' and an accuracy of less than 0.5", enabling fast setup and reliable readings for construction, land surveying, and leveling projects.

Reliable in Field Applications

Ideal for both demanding construction sites and detailed land surveys, the PRO GOL 32 D supports a stadia multiplication constant of 100, ensuring simple, repeatable distance calculations. Lightweight at 1.5 kg and easy to mount with a 5/8 tripod thread, this instrument streamlines workflow for professionals in India's varied terrains.

FAQ's of Optical Level PRO GOL 32 D:

Q: How do I set up the Optical Level PRO GOL 32 D on-site?

A: To set up the PRO GOL 32 D, attach it securely to a tripod using the 5/8 thread, adjust the leveling screws for stability, and ensure the bubble is centered. The robust compensator will further maintain level accuracy during measurements.

Q: What applications is the PRO GOL 32 D best suited for?

A: This optical level is ideal for construction leveling, land surveying, engineering assessments, and any task requiring precise horizontal measurement and elevation determination.

Q: When should I use the hard carrying case and insulation box provided?

A: The hard carrying case should be used during transport or storage to protect the instrument from physical impacts, while the insulation box is useful when working in temperature extremes, ranging from -20C to +50C.

Q: Where can I use the Optical Level PRO GOL 32 D, considering environmental conditions?

A: With its IP54-rated dust and water resistance, and operating temperature range of -20C to +50C, this instrument can be used on diverse construction sites and in outdoor terrains across India.

Q: What benefits does the IP54 protection provide?

A: IP54 protection shields the instrument from dust ingress and splashing water, ensuring reliable operation and durability during tough on-site conditions.

Q: How accurate are the measurements taken with this optical level?

A: The PRO GOL 32 D provides measurement accuracy of 1.0 mm per 1 km double run and compensator accuracy of less than 0.5 seconds, ensuring highly reliable results for professional applications.

Q: What is the process for focusing the telescope for optimal clarity?

A: To focus, simply turn the focusing knob until the target image appears sharp in the eyepiece. The 0.3 m minimum focusing distance allows for both close and distant readings with ease.
