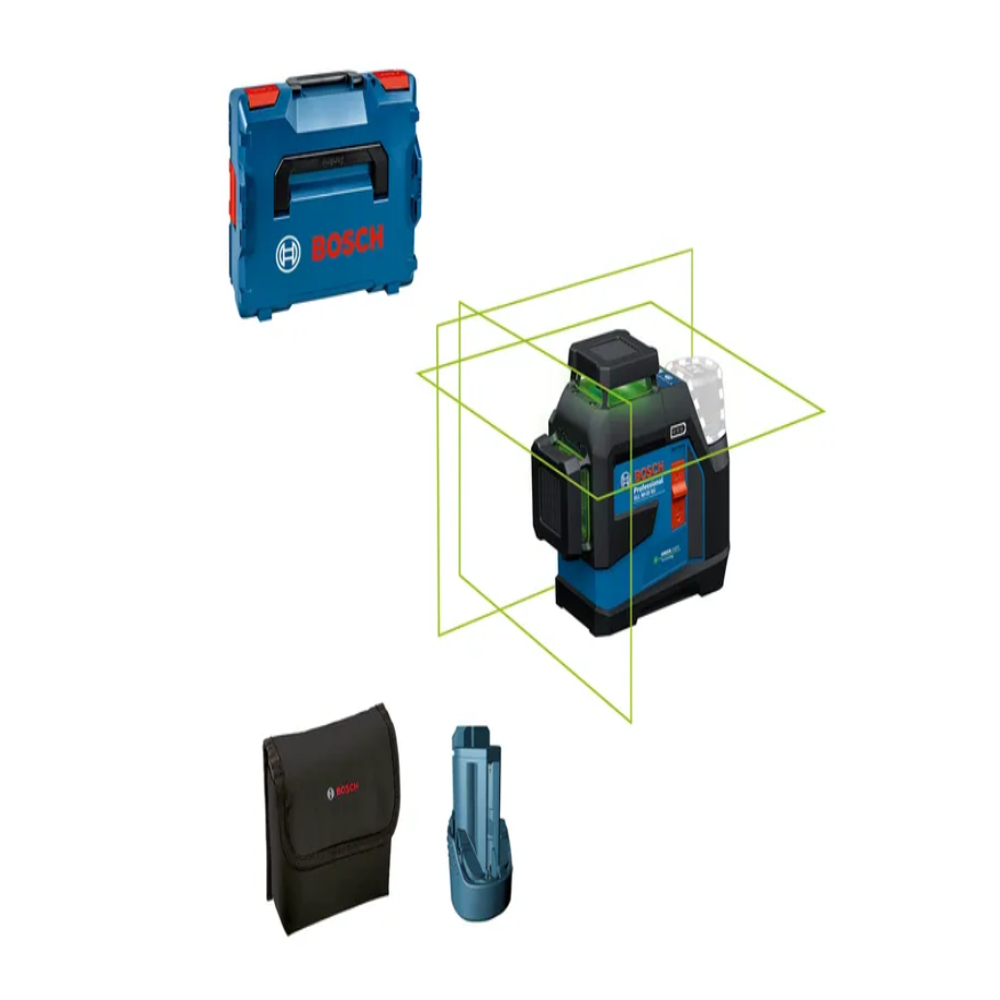

Line Laser PRO GLL 90-33 XG - BOSCH

Line Laser PRO GLL 90-33 XG - BOSCH Specification

Batteries Type
4 x AA (included)

Usage & Applications
Precise leveling for alignment, tiling, and construction work

Resistant Feature
Shock, Dust, Water Resistant

Accuracy
0.3 mm/m

Product Type
Line Laser Level

Material
High-grade Composite and Metal

Operating Temperature
-10C to +50C

Frequency (MHz)
50-60

Insulation Box
Yes

Protection System
IP54 (dust and splash water protection)

Size
Compact

Color
Green and Black

Dimension (L*W*H)
140 x 60 x 122 mm

Weight
0.72 kg

Self-leveling Range
4

Laser Class
Class 2

Working Range
Up to 30 m (with target plate)

Tripod Mount
Yes

Laser Diode
500-540 nm, < 10 mW

Lines Projection
3 x 360 Green Laser Lines (2 vertical, 1 horizontal)

Leveling Time
<4 seconds

Mount Adapter Thread
1/4" and 5/8"

Power Supply
Battery or optional Bosch 12V lithium-ion battery

Storage Temperature
-20C to +70C

Line Laser PRO GLL 90-33 XG - BOSCH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Line Laser PRO GLL 90-33 XG - BOSCH

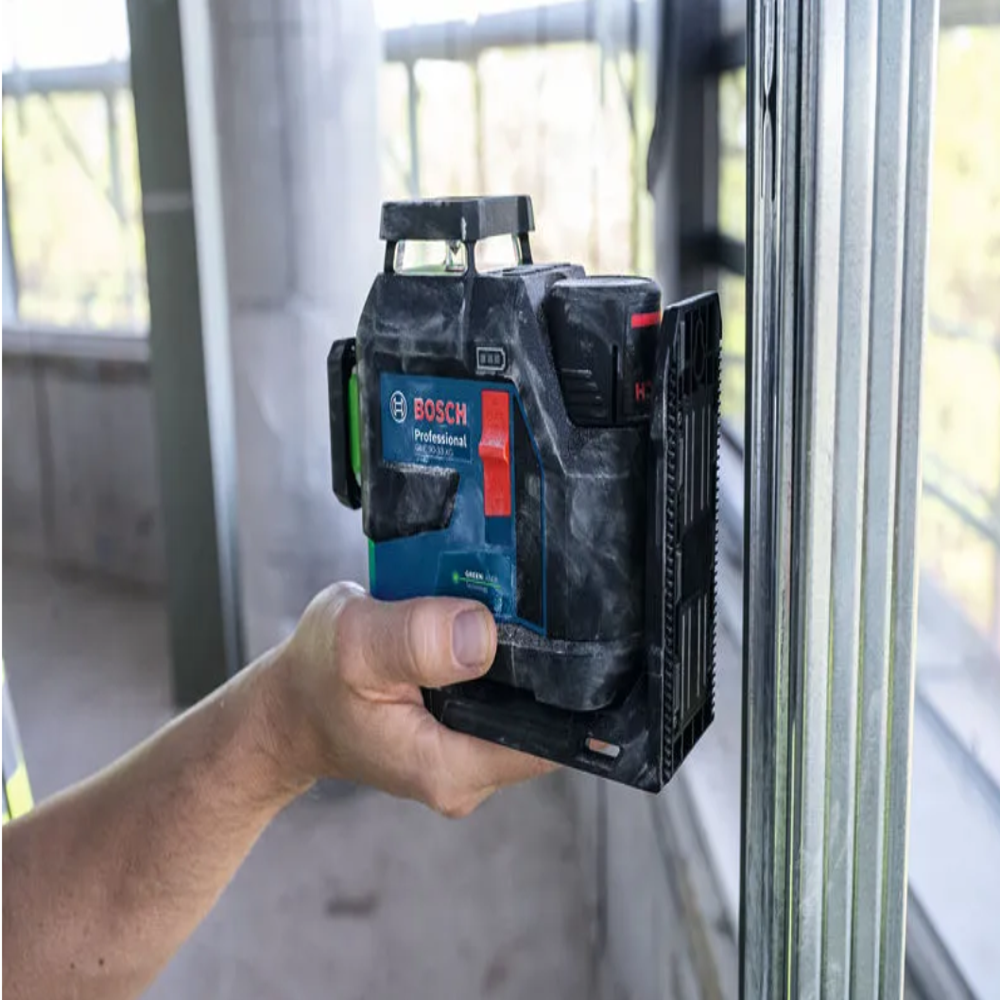

The GLL 90-33 XG Professional offers easy and intuitive operation. It is designed to withstand tough jobsite conditions with its rubber enforced housing and laser windows and IP65 rating for dust and water resistance. Dual power source offers you the flexibility to switch between the 12V Li-Ion battery and AA alkaline batteries as a backup power source.

Equipment & Application

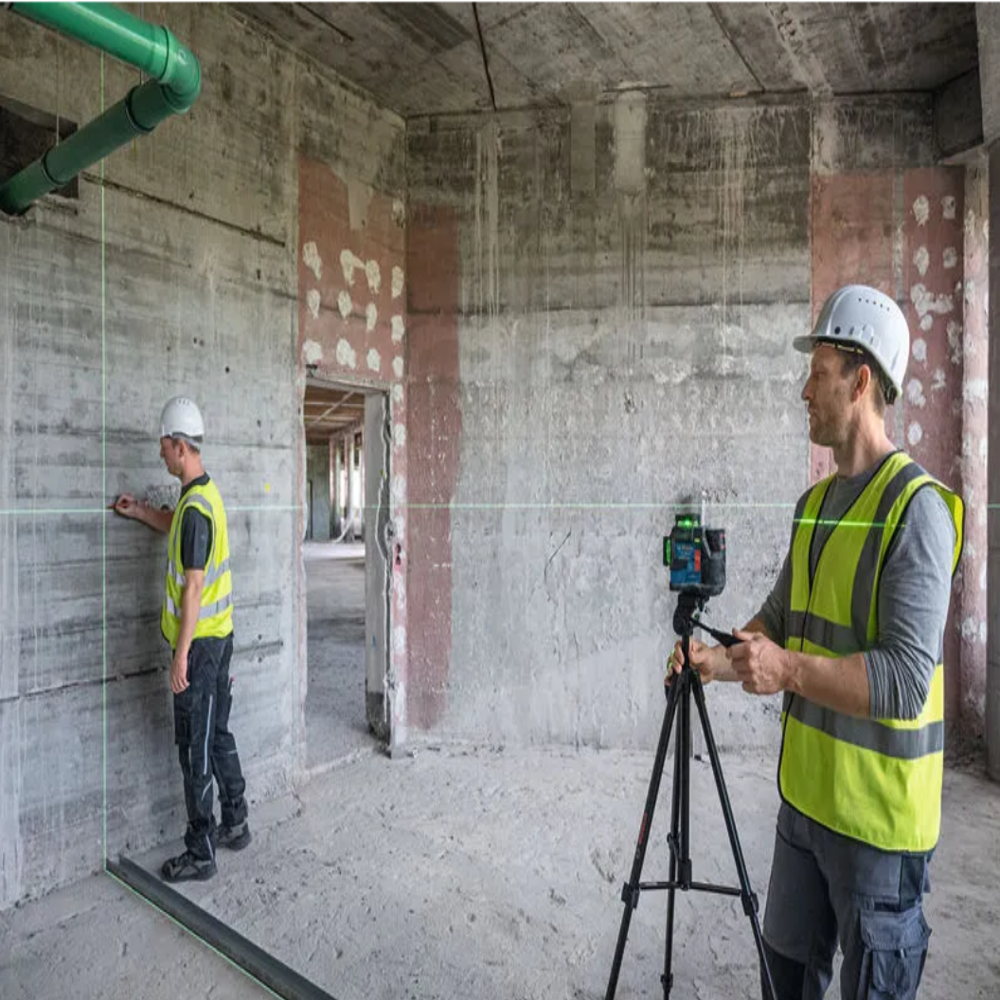

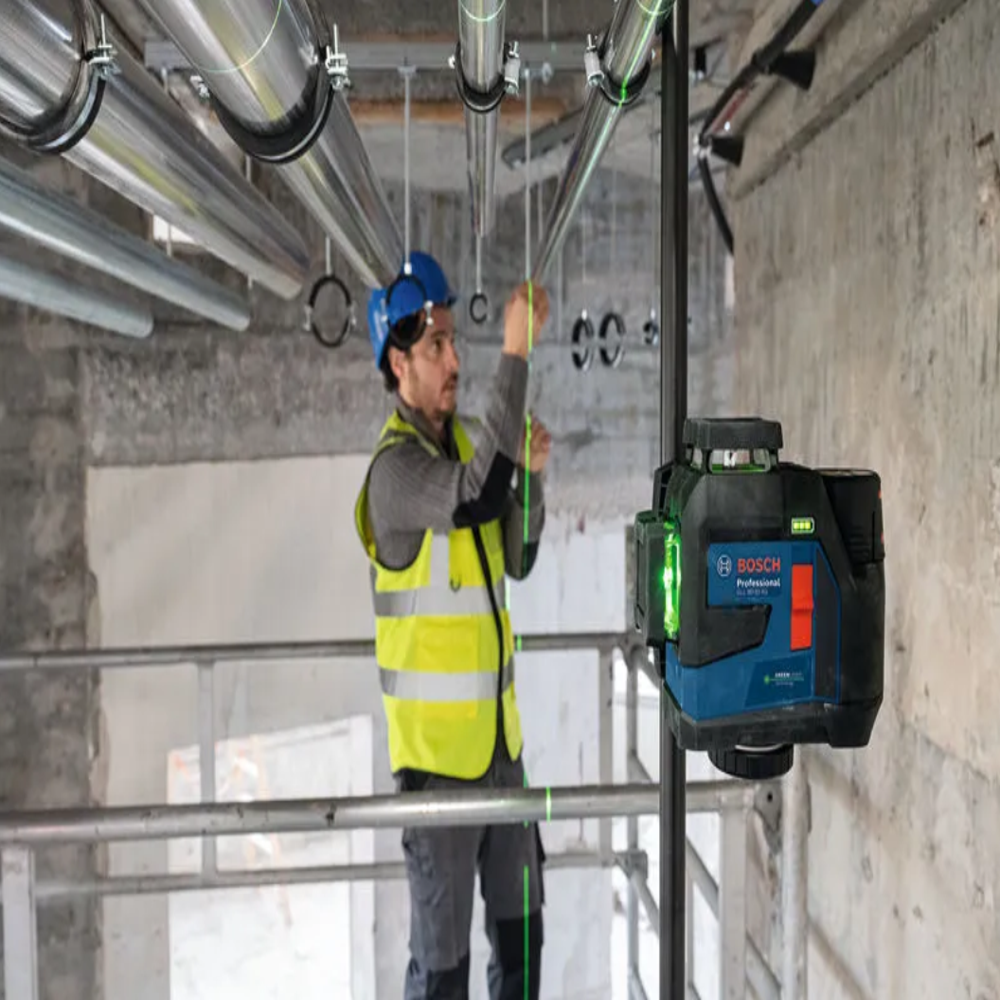

Enjoy easy operation of the GLL 90-33 XG with a new keypad design for clear laser line selection and a large battery indicator for convenience. The line laser is perfect for alignment of walls and partitions, tile and flooring installations, and staircase construction.

Additional Information

It features 3 x 360 lines for simultaneous horizontal and vertical levelling, allowing for easy layout of large spaces with just one tool. For starting right away, the GLL 90-33 XG laser receiver mode is always activated. With the optional laser receiver LR 7 Professional you can extend the working range up to 90 metres (radius). The bright green laser lines offer up to four times better visibility than red lines, ensuring precision in every task.

Advanced 360 Laser Projection

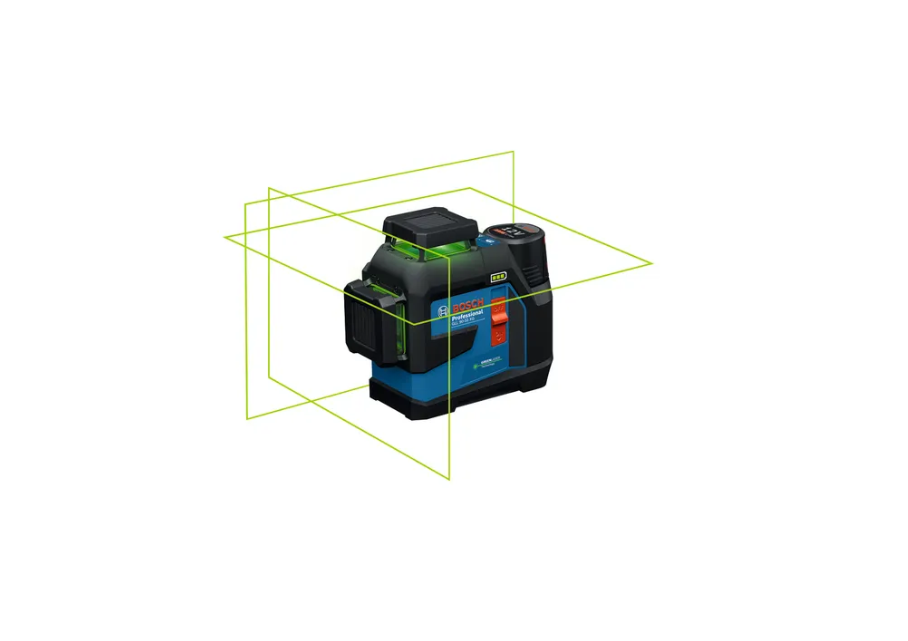

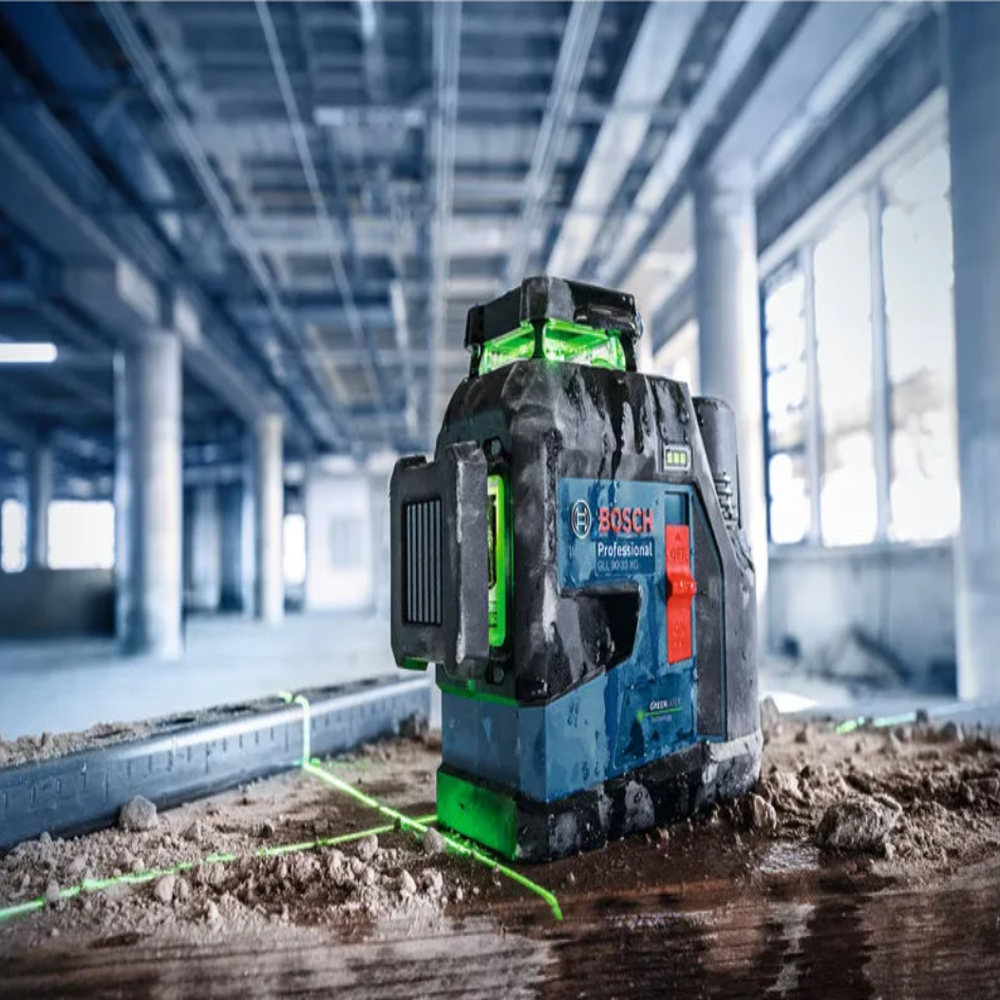

Experience comprehensive coverage with three 360 green laser lines-two vertical and one horizontal. This feature enables quick and accurate set-ups for large or divided spaces, significantly enhancing workflow efficiency in alignment, tiling, and layout tasks.

Rugged and Reliable Build

The PRO GLL 90-33 XG is engineered with a high-grade composite and metal housing, IP54-rated for dust and water resistance, and offers excellent shock resistance. Its seamless performance from -10C to +50C operating temperature ensures reliability in various Indian site conditions.

Flexible Power Solutions

Choose between 4 x AA batteries (included) or an optional Bosch 12V lithium-ion battery for extended operation. This flexibility ensures the device is always ready for demanding work schedules, reducing downtime and enhancing productivity on site.

FAQ's of Line Laser PRO GLL 90-33 XG - BOSCH:

Q: How do I set up and operate the BOSCH Line Laser PRO GLL 90-33 XG?

A: Setting up the GLL 90-33 XG is straightforward. Mount the unit on a tripod using the 1/4" or 5/8" adapter, insert the four included AA batteries or a Bosch 12V lithium-ion battery, and switch it on. The laser will self-level automatically within four seconds, and you can begin projecting the green laser lines for your alignment or leveling tasks.

Q: What are the key benefits of using green laser lines over red ones?

A: Green laser lines, like those on the GLL 90-33 XG, offer superior visibility-up to four times brighter than standard red lines. This is particularly beneficial in well-lit or outdoor environments, ensuring you maintain accuracy and ease of use in various lighting conditions.

Q: Where can I use the Line Laser PRO GLL 90-33 XG effectively?

A: This model excels in a variety of construction and interior works, such as floor and wall tiling, partitioning, ceiling installations, and accurate fixture alignment. Its robust design and compact size make it ideal for both site and workshop setups throughout India.

Q: How accurate is the laser, and what is its effective range?

A: The GLL 90-33 XG delivers outstanding precision with an accuracy of 0.3 mm/m. It projects laser lines up to 30 meters when used with the accompanying target plate, making it suitable for most medium- and large-scale construction applications.

Q: What kind of environmental protection does this laser offer?

A: With an IP54 rating, the tool resists dust and splash water, making it suitable for challenging construction environments. Additionally, it features shock resistance and can operate in temperatures ranging from -10C to +50C, offering reliable performance year-round.

Q: What is the process for switching between battery power options?

A: Transitioning between power sources is simple. Remove the battery compartment cover to replace the four AA batteries, or insert the optional Bosch 12V lithium-ion battery. The device is designed to operate seamlessly with either option, ensuring uninterrupted workflow.

Q: How does the self-leveling function benefit my projects?

A: The self-leveling mechanism ensures the projected laser lines are perfectly horizontal or vertical in under four seconds, reducing setup time and minimizing human error. This allows for quick, precise measurements and alignment, ultimately improving the quality and speed of your work.
