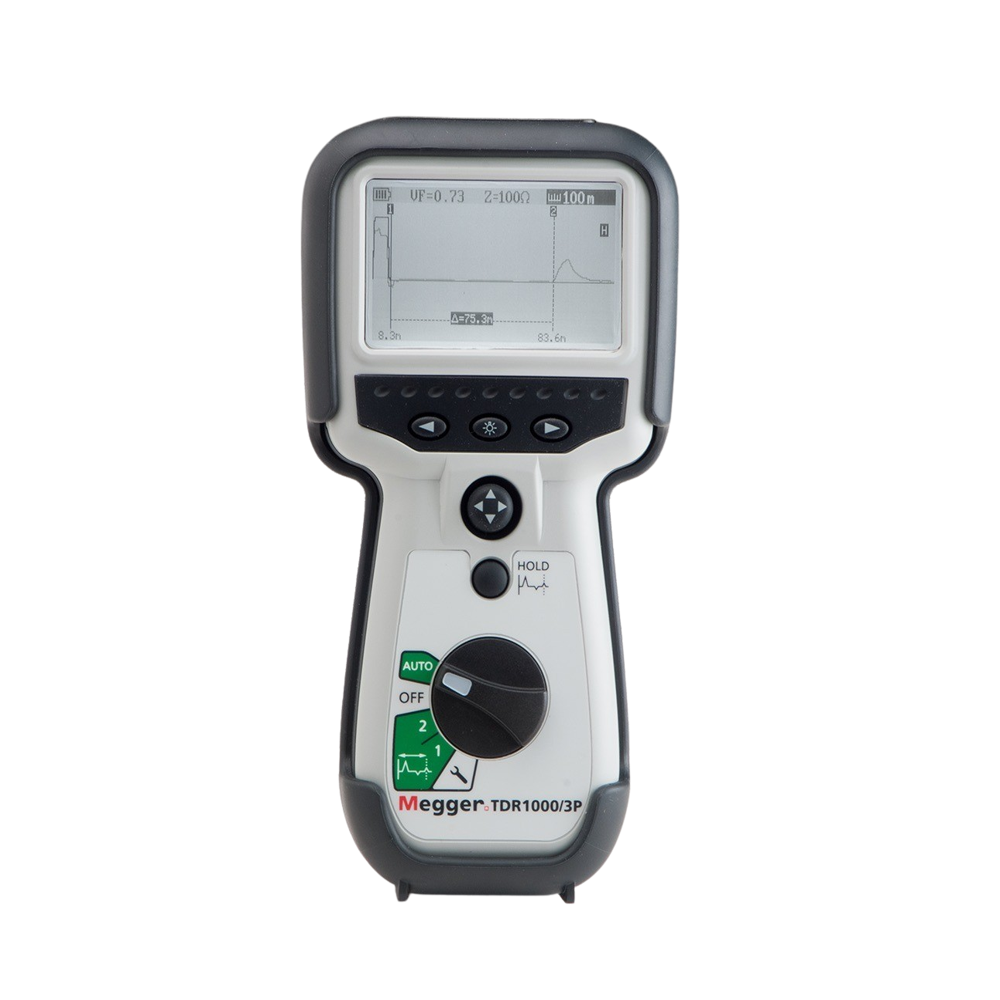

Handheld Time Domain Reflectometer - TDR 1000/3P

Handheld Time Domain Reflectometer - TDR 1000/3P Specification

Pressure
Atmospheric

Batteries Type
6 x AA (LR6)

Resistant Feature
Splash & Dust Proof

Accuracy
Better than 1% of Reading

Usage & Applications
Cable Fault Location and Testing (Telecom, Power, Data, Coaxial)

Product Type
Handheld Time Domain Reflectometer

Material
ABS Plastic Body

Measuring Voltage Range
Not Applicable (Cable Distance Fault Location)

Operating Temperature
-15C to +50C

Frequency (MHz)
2 to 20 MHz (Pulse)

Insulation Box
Provided, robust enclosure

Protection System
IP54 (Splash & Dust Resistant)

Size
Compact

Color
Gray/Blue

Dimension (L*W*H)
235 mm x 100 mm x 50 mm

Weight
600 g (with batteries)

Environmental Compliance
RoHS Compliant

Output Pulse Width
2, 10, 20, 50, 100 ns

Display
High Contrast Backlit LCD (256 x 128 pixels)

Output Pulse Amplitude
5 V nominal

Auto-off Feature
Yes (Battery Saving)

Dead Zone
<0.7 m

User Memory
Up to 100 trace files

Languages Supported
English, other European languages

Interface
USB Port (data download capability)

Velocity Factor Range
0.30 to 0.99

Displayed Distance Range
Up to 5 km (Cable length dependent)

Handheld Time Domain Reflectometer - TDR 1000/3P Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Handheld Time Domain Reflectometer - TDR 1000/3P

The TDR 1000/3P is a portable, handheld time domain reflectometer designed for fast and precise fault location in power, control, and telecom cables. It is a single-channel device optimized for field use, providing clear waveform visualization of open, short, and impedance faults. With adjustable velocity of propagation (VOP) and high-resolution display, it ensures accurate distance measurement. Compact and rugged, the TDR 1000/3P is ideal for utilities, industrial maintenance, and EPC contractors for on-site troubleshooting.

Key Features

Handheld and lightweight for easy field use
High-resolution display with clear waveform visualization
Adjustable VOP for different cable types
Detects open circuits, short circuits, and impedance faults
Non-destructive low-voltage pulse testing
Fast and accurate fault distance measurement
Rugged design for harsh environments

Applications

Underground and overhead power cable fault location
Control and instrumentation cable troubleshooting
Telecom and communication cable diagnostics
Industrial cable maintenance and testing
Utility and EPC field operations

Advanced Fault Location Technology

The TDR 1000/3P offers advanced Pulse Time Domain Reflectometry, capable of identifying cable breaks, shorts, and faults quickly up to 5 km. Dead zones under 0.7m enhance the ability to locate faults close to connection points, maximizing cable integrity and minimizing downtime.

Rugged and Field-Ready Design

With a tough ABS plastic body and IP54 rated splash and dust resistance, the TDR 1000/3P endures demanding environments. Its compact size (235 mm 100 mm 50 mm) and lightweight design at just 600g (including batteries) ensure straightforward handling and portability in challenging work conditions.

User-Friendly and Flexible Operation

A high-contrast backlit LCD and support for English and other European languages guarantee clear visibility and easy navigation during testing. The user memory can hold up to 100 trace files, while USB connectivity simplifies data transfer for analysis and reporting, streamlining your workflow.

FAQ's of Handheld Time Domain Reflectometer - TDR 1000/3P:

Q: How does the TDR 1000/3P identify faults in cables?

A: The TDR 1000/3P sends electrical pulses along the cable and measures the time it takes for reflections to return, allowing it to pinpoint faults such as breaks, shorts, or splices by displaying the distance to the issue on its high-contrast LCD.

Q: What types of cables can be tested with this device?

A: It is suitable for testing a wide range of cables, including telecom, power, data, and coaxial cables, provided the total cable length is within the 5 km measuring range.

Q: When is the ideal time to use the TDR 1000/3P handheld meter?

A: Use this device during routine maintenance, troubleshooting after fault occurrence, or post-installation checks to ensure cable integrity and minimize potential service interruptions.

Q: Where can the TDR 1000/3P be effectively utilized?

A: This handheld TDR can be deployed in field or indoor environments, particularly in telecom exchanges, power substations, and any location where accurate cable testing and fault location are necessary.

Q: What is the process for saving and retrieving test results?

A: The unit can store up to 100 trace files directly on the device, which can be easily retrieved and downloaded via the integrated USB port for further analysis or record-keeping.

Q: How does the device ensure durability in harsh environments?

A: The instrument features a robust ABS plastic body and is rated IP54, providing resistance to splashes and dust, and comes packed in an insulated box for added protection during transport or field use.

Q: What are the benefits of using the TDR 1000/3P in cable management?

A: It offers rapid, accurate fault localization, reduces downtime, simplifies recordkeeping with onboard memory, and ensures consistent performance under various environmental conditions, ultimately supporting efficient maintenance operations.
