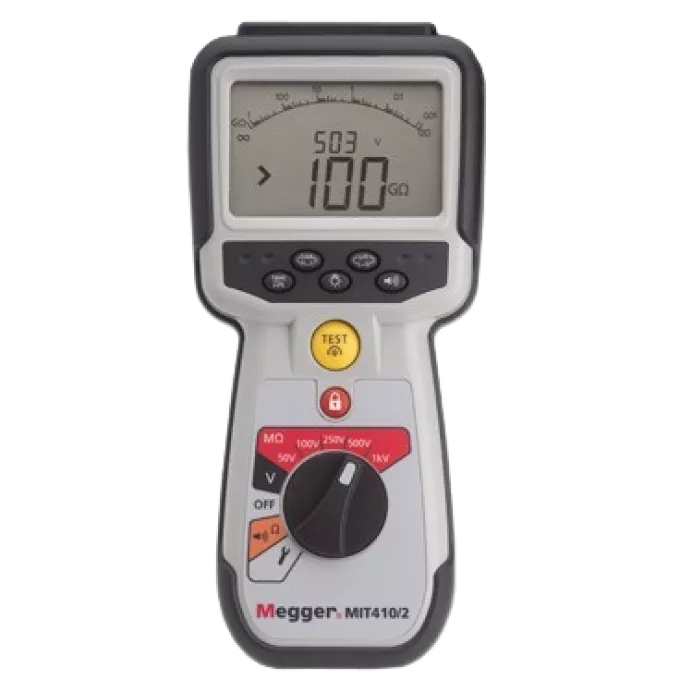

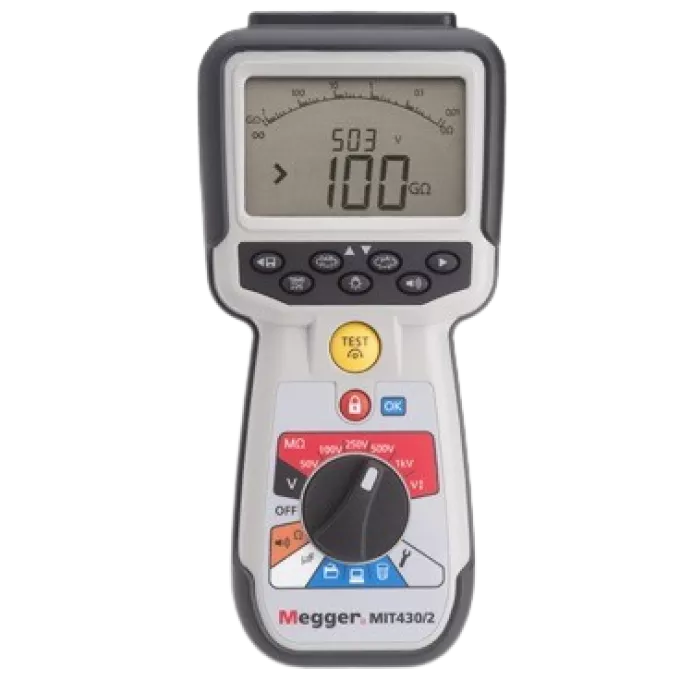

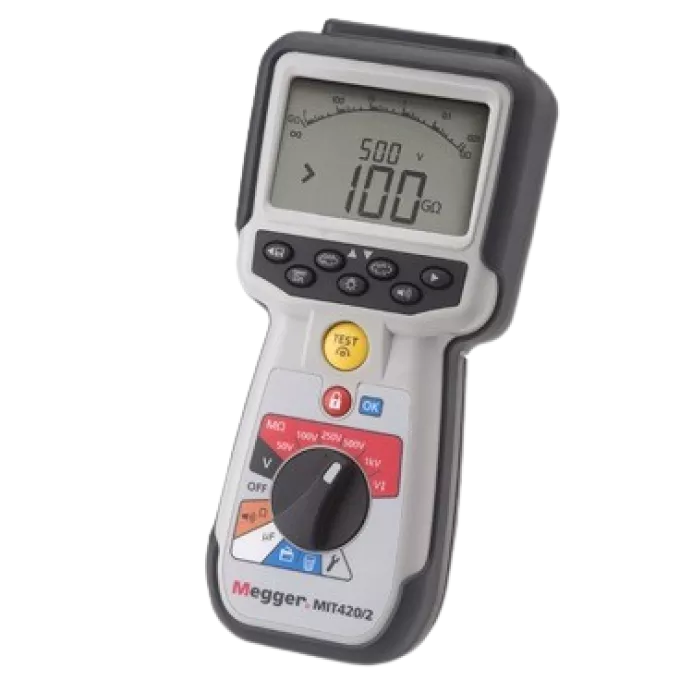

Insulation Testers 400/2 Series

Insulation Testers 400/2 Series Specification

Accuracy
2% of reading

Resistant Feature
Drop resistant; IP54 protection

Usage & Applications
Testing insulation resistance in electrical installations, wires and equipment

Batteries Type
AA 1.5V Alkaline (x6)

Product Type
Insulation Tester

Material
High Impact Plastic Body

Measuring Voltage Range
500V / 250V DC

Operating Temperature
-10C to +55C

Frequency (MHz)
DC only (Not applicable for MHz)

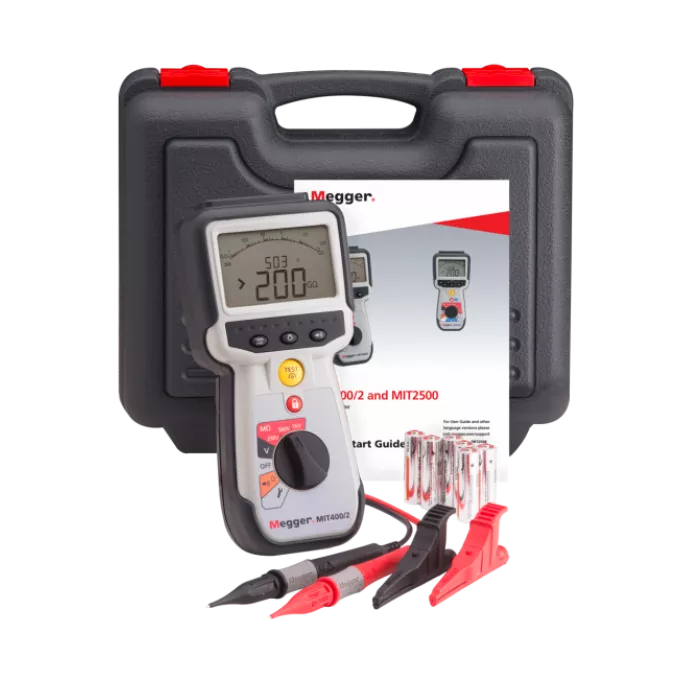

Insulation Box
Portable Carry Case Provided

Protection System
Overload protection, Safety design

Size
Handheld, compact

Color
Grey & Black

Dimension (L*W*H)
Approx. 203 x 93 x 50 mm (Instrument only)

Weight
Approx. 0.6 kg (Instrument only)

Model
MIT400/2 Series

Insulation Resistance Range
Up to 200 G

Continuity Range
0.01 to 1 M

Display
Large LCD digital display with backlight

Test Lock
Yes, for continuous testing

Power Off
Auto power off function

CAT Rating
CAT IV 600V, CAT III 1000V

Auto-discharge
Yes, for tested circuits

Data Hold
Yes

Test Voltage
250V / 500V selectable

Application Standard
Complies with IEC 61010-1

Lead Set Included
Yes, supplied with clip and probe set

Insulation Testers 400/2 Series Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Insulation Testers 400/2 Series

MIT400 mk2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.A variable range has been added to allow any intermediate voltage from 10 V to 1000 V in 1 V steps, where application specific test voltages are required that do not appear in the standard ranges.*Continuity testing is now significantly faster, and a single auto-ranging 0.01 to 1.0 M function replaces the ohms and kOhms ranges. Retained are the 200 mA and 20 mA test options

Advanced Display and Measurement Precision

Equipped with a large, backlit LCD screen, the Insulation Testers 400/2 Series offer excellent readability even in low-light environments. With selectable test voltages and measurement range extending up to 200 G for insulation resistance, you can execute tests confidently, benefiting from 2% accuracy during diagnostics or maintenance projects.

Durable and User-Friendly Design

Encased in high-impact plastic with IP54 and drop-resistant features, this tester endures demanding field conditions. The ergonomic, compact construction, along with the supplied carry case, ensures easy portability. Auto-discharge, overload protection, and a robust lead set assure safe operation and minimize the risk of instrument damage.

Versatile Application and Compliance

Ideal for professionals working in electrical installation, equipment servicing, and routine safety checks, the MIT400/2 Series is rated for CAT IV 600V and CAT III 1000V, meeting IEC 61010-1 standards. Its multifunctional capabilities-insulation testing, voltage measurement, and continuity checks-make it an essential tool for electricians and maintenance engineers.

FAQ's of Insulation Testers 400/2 Series:

Q: How does the auto-discharge function benefit the user during insulation testing?

A: The auto-discharge feature automatically releases any stored charge in the circuit after testing, ensuring user safety and protecting connected equipment from potential electrical hazards.

Q: What types of electrical systems can the MIT400/2 Series insulation tester be used on?

A: This tester is suitable for a wide range of electrical systems, including installations, wires, and electrical equipment. Its CAT IV 600V and CAT III 1000V ratings make it appropriate for industrial, commercial, and residential applications.

Q: When should I use the data hold and test lock features?

A: You can use the data hold feature to freeze a measurement on the display for easy reading or documentation, while the test lock function is ideal for continuous or hands-free testing, reducing user fatigue during extended diagnostic tasks.

Q: Where is this insulation tester most commonly applied?

A: The MIT400/2 Series is frequently used on-site in maintenance workshops, construction sites, and anywhere insulation resistance testing of circuits or equipment is required, due to its portable and rugged design.

Q: What is the benefit of the tester's compliance with IEC 61010-1?

A: Compliance with IEC 61010-1 ensures the tester meets internationally recognized safety standards, offering reliable protection to users and ensuring consistent measurement performance in professional settings.

Q: How is overload protection incorporated into the device's operation?

A: The insulation tester features a built-in overload protection system that safeguards the instrument from excessive currents or voltages during operation, preventing damage and prolonging device lifespan.

Q: What kind of batteries does the insulation tester use and what is the benefit?

A: The device uses six AA 1.5V alkaline batteries, providing ample operational time in the field. These commonly available batteries are easy to replace, ensuring continued productivity during extended use.
