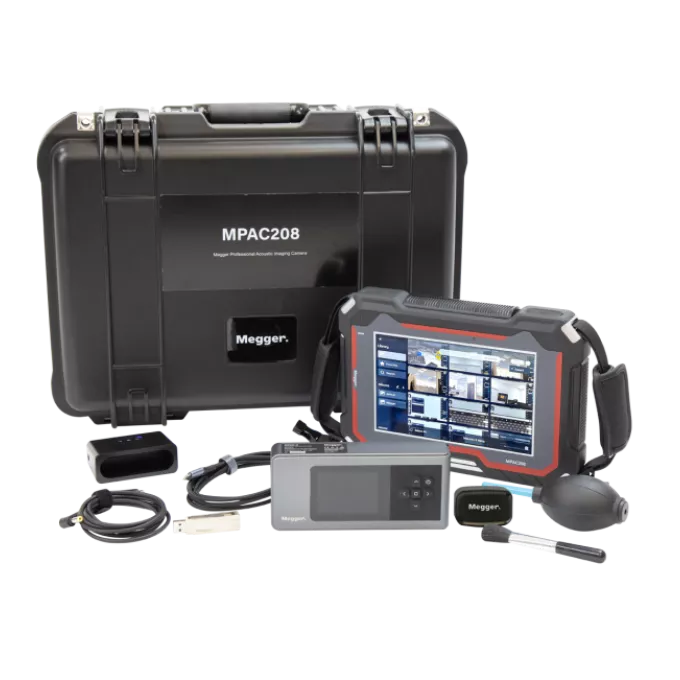

Acoustic Imaging Camera MPAC208

Acoustic Imaging Camera MPAC208 Specification

Camera Range
Acoustic: up to 120 meters, Thermal: up to 50 meters

Connectivity Type
Wi-Fi, USB, Ethernet

Camera Type
Acoustic imaging with thermal overlay

Sensor Type
Ultrasonic sensor array and thermal camera sensors

Camera Style
Handheld tablet

Technology
Fusion of acoustic imaging, thermal imaging, and visual inspection

Special Features
Real-time acoustic and thermal imaging, touch screen display, rugged enclosure, simultaneous image and video capture, sound localization mapping

Remote Control
Supported via software interface

Application
Industrial inspections, predictive maintenance, leak detection, electrical system diagnostics, mechanical diagnostics

Camera Size
Integrated within 10-inch rugged tablet

Camera Pixels
Visible camera: Approx. 8MP, Thermal camera: 320240 pixels

Screen Resolution
1280800 pixels

Image/Video Quality
Full HD image capture, video up to 1080p

Power Supply
Rechargeable Li-ion battery, AC mains compatible

Output Formats
Image: JPEG/TIFF, Video: MP4, Data: CSV

File Compatibility
JPEG, TIFF, MP4, CSV

Display Type
Capacitive multi-touch LCD screen

Software Features
Real-time FFT, spectrum analysis, automatic report generation, in-device annotation, integrated GPS tagging

Ingress Protection
IP65 dust and water resistant

Weight
2.3 kg

Onboard Storage
64GB internal, expandable via SD card slot

Battery Life
Up to 8 hours continuous operation

Operating Temperature
-20C to +50C

Storage Temperature
-40C to +70C

Audio Detection Frequency Range
2 kHz to 65 kHz

Mounting Options
Shoulder strap, tripod compatible

Acoustic Imaging Camera MPAC208 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
30 Days

About Acoustic Imaging Camera MPAC208

The MPAC208 is a professional-grade acoustic imaging camera designed for fast, accurate detection of ultrasonic sound sources across industrial environments. It helps maintenance teams identify gas leaks, mechanical deterioration, and partial discharge (PD) in high-voltage electrical systems, without needing to interrupt operations.

At its core is a 208 channel MEMS (micro-electromechanical system) microphone array offering sensitivity across 2 kHz to 100 kHz, enabling the MPAC208 to detect even very small leaks and subtle ultrasonic patterns.

The acoustic data is fused with a 13 MP optical camera and displayed on an 8-inch capacitive touchscreen, presenting clear, real-time visual overlays that make sound sources immediately visible.

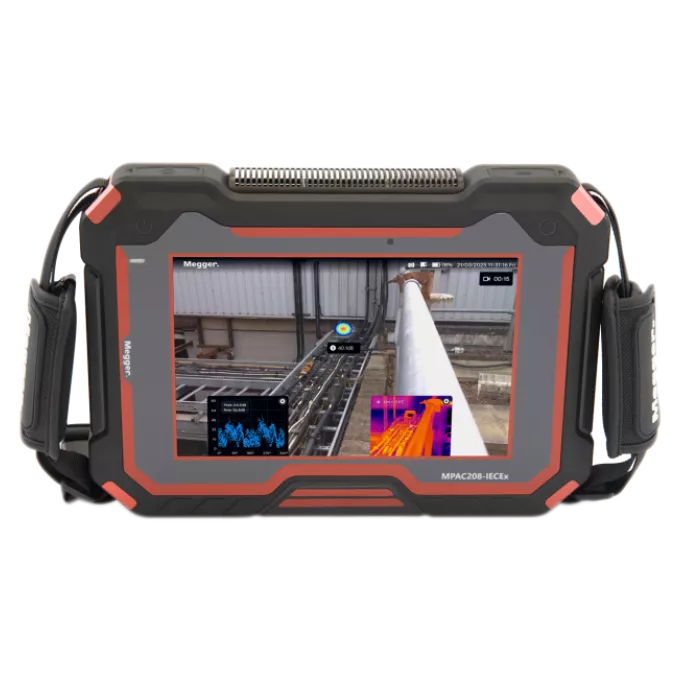

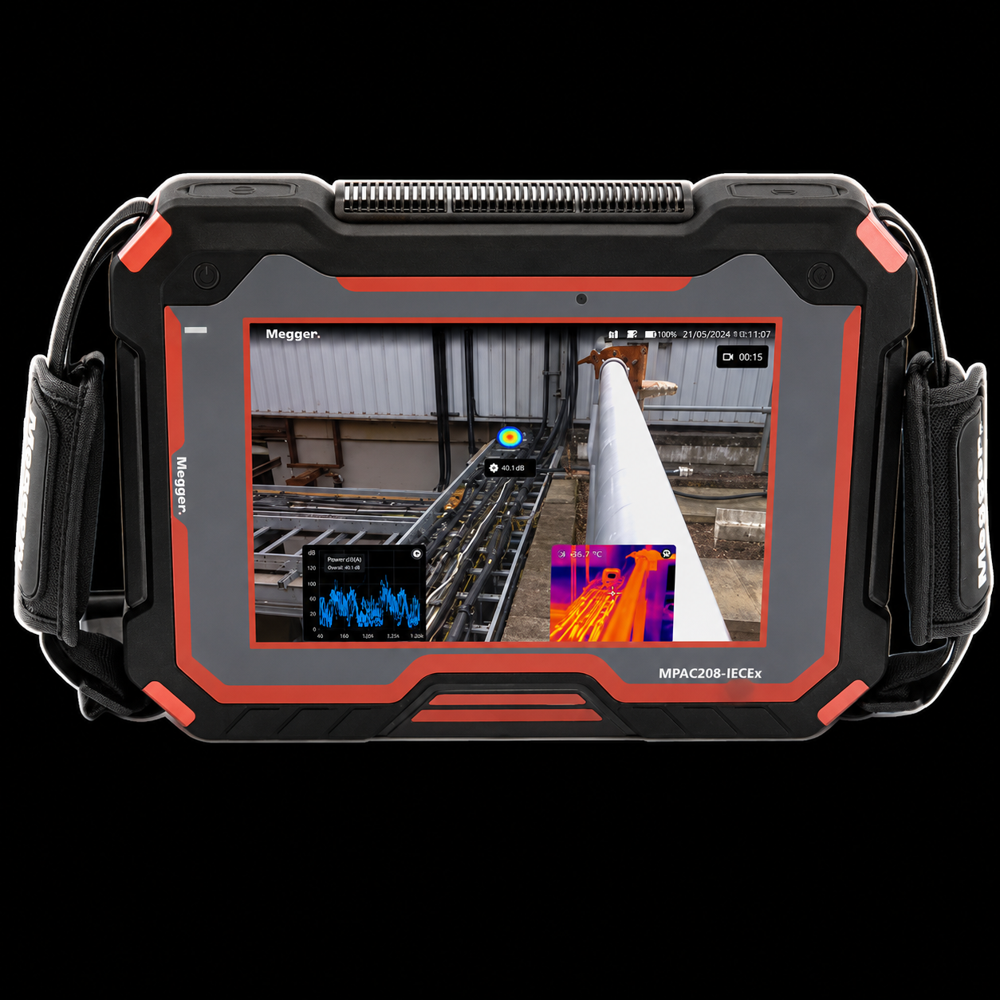

The MPAC208-IECEx camera provides all the features seen in the standard MPAC208 but is certified for use in Class 2 explosive atmospheres.

Advanced Fusion Imaging Technology

The MPAC208 combines acoustic imaging, thermal imaging, and visual inspections in a single rugged device. Its 10-inch multi-touch LCD provides intuitive control and high-definition visualization, helping users detect faults and inefficiencies rapidly. The simultaneous capture of images and videos, integrated GPS tagging, and sound localization mapping make this camera indispensable for industrial environments.

Built for Harsh Environments

Engineered with a durable IP65-rated enclosure, the MPAC208 resists dust and water, ensuring reliable operation in demanding settings. With an extended operating temperature range from -20C to +50C and long battery life, field technicians can fully trust the camera to deliver accurate diagnostics during prolonged or extreme-use scenarios.

FAQ's of Acoustic Imaging Camera MPAC208:

Q: How does the MPAC208 acoustic imaging camera assist in industrial inspections?

A: The MPAC208 helps identify anomalies such as leaks or electrical faults by fusing ultrasonic, thermal, and visual imaging. It localizes sound sources and visualizes temperature variations, making it well-suited for proactive maintenance and minimizing downtime.

Q: What are the main application areas for the MPAC208?

A: The camera is ideal for predictive maintenance, industrial inspections, leak detection, electrical system diagnostics, and mechanical diagnostics in various industrial environments.

Q: When is it most effective to use the MPAC208 device in the field?

A: The MPAC208 excels during scheduled maintenance, routine inspections, or whenever early fault detection is critical to prevent equipment failures and optimize operational uptime.

Q: Where can the MPAC208 be deployed given its environmental specifications?

A: With its IP65 dust and water resistance and temperature tolerance from -20C to +50C, the camera can be deployed in both indoor and outdoor industrial locations subject to harsh conditions.

Q: What is the process for capturing and analyzing data with the MPAC208?

A: Users operate the device via its touch LCD, using real-time FFT and spectrum analysis tools to capture full HD images or videos. Reports can be automatically generated and data is stored internally or on SD cards for further review.

Q: How does the remote control feature benefit users?

A: The remote control capability allows users to manage the camera and review data through software interfaces, facilitating safe operation in hazardous areas or from a distance.
